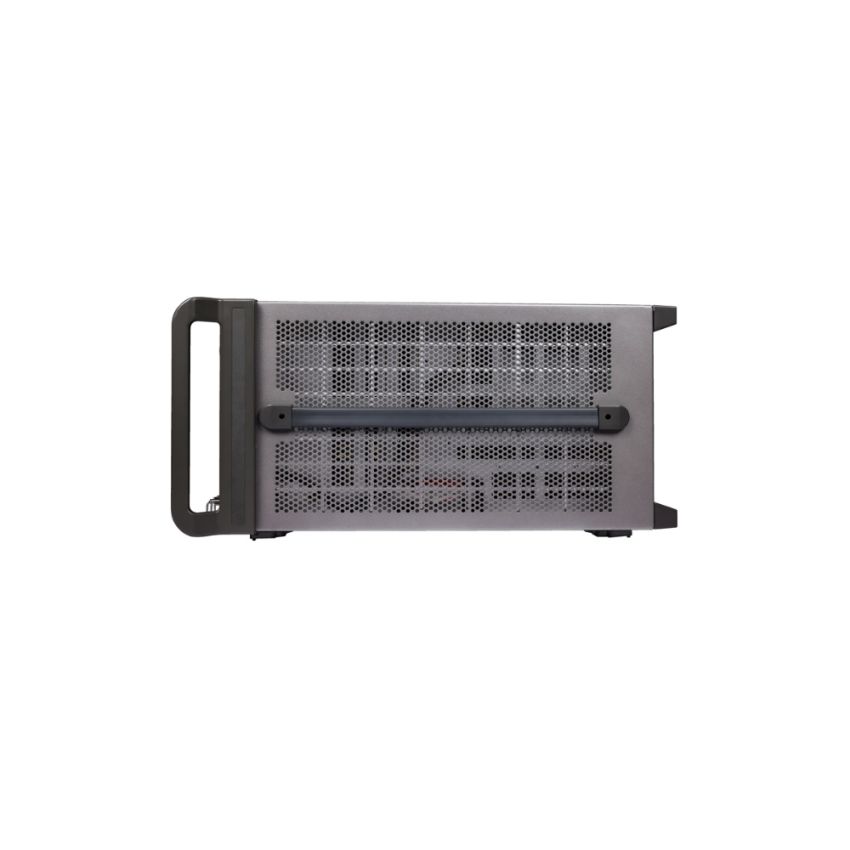

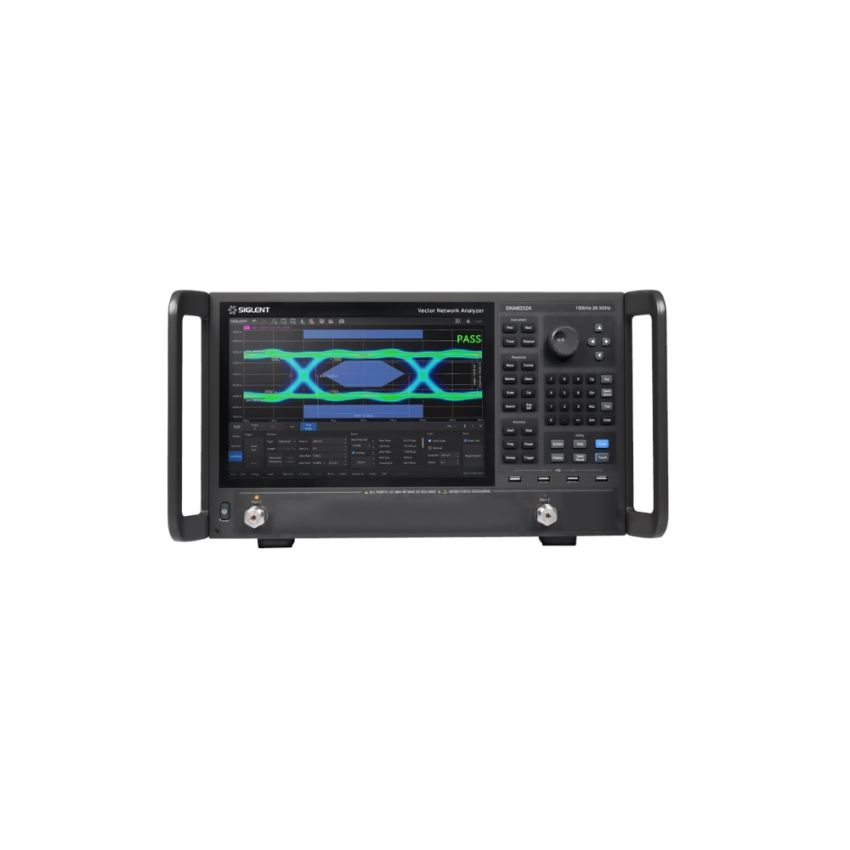

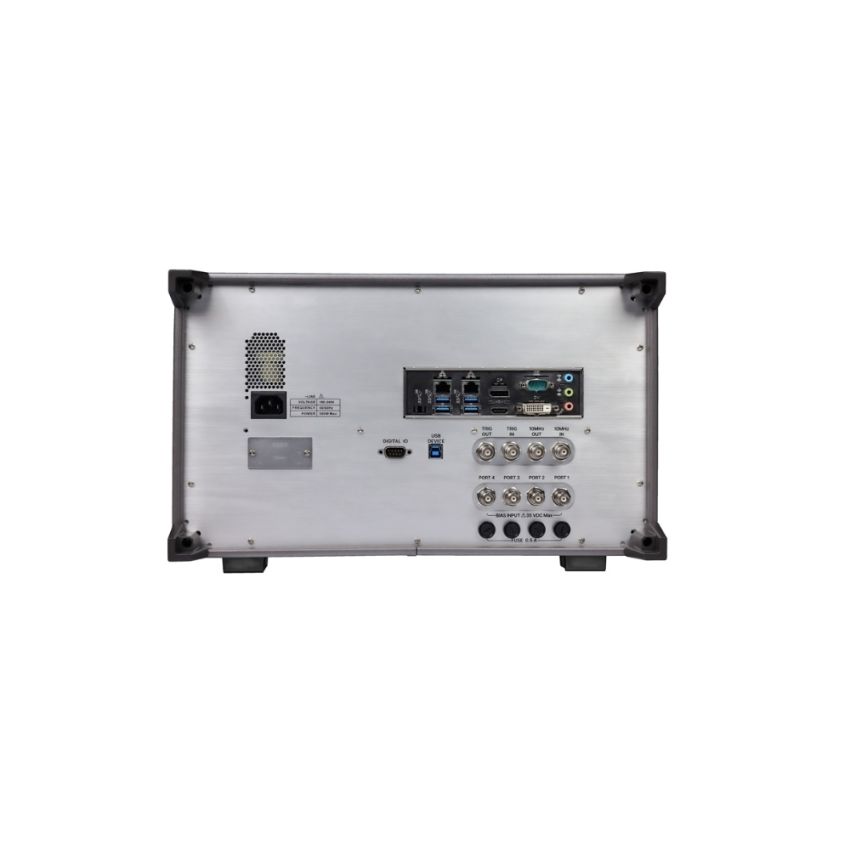

Siglent SNA6032A, 2‑Port Vector Network Analyzer, 100 kHz–26.5 GHz

The Siglent SNA6032A is a high-performance 2-port vector network analyzer covering a frequency range from 100 kHz to 26.5 GHz. Featuring a 12.1‑inch color touchscreen and a dynamic range of approximately 135 dB, it supports a wide variety of measurement modes, including S‑parameters, differential measurements, time-domain analysis, limit/ripple testing, fixture simulation, impedance conversion and adapter de-embedding. The analyzer offers flexible sweep types, comprehensive calibration options, and full remote control capabilities, making it ideal for research, development, manufacturing, and educational use.

Key Features

• Wide frequency coverage: 100 kHz to 26.5 GHz enabling comprehensive microwave testing.
• High dynamic range of 135 dB ensures sensitivity in complex signal environments.
• Frequency resolution down to 1 Hz and level resolution of 0.05 dB for precise measurements.
• Multiple calibration techniques supported: SOLT, Enhanced Response, TRL, and more.
• Rich display and interface: 12.1″ touchscreen, multi-window support, DVI/HDMI output, and comparison tool via data-hold.
• Advanced measurement modes including time-domain analysis, adapter compensation, and ripple tracking.
