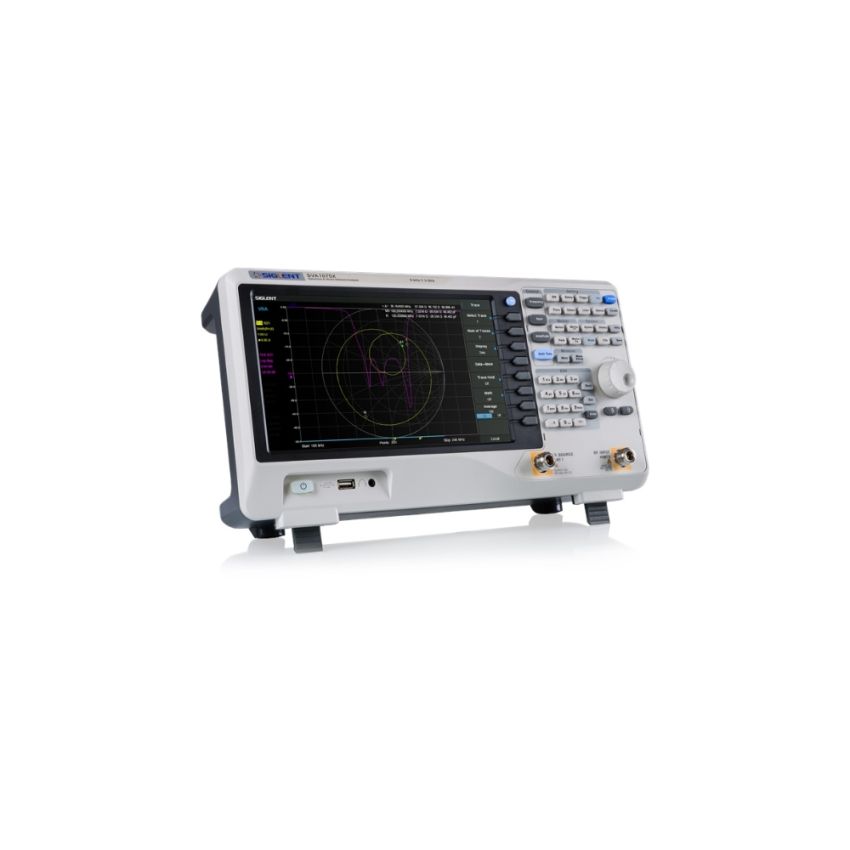

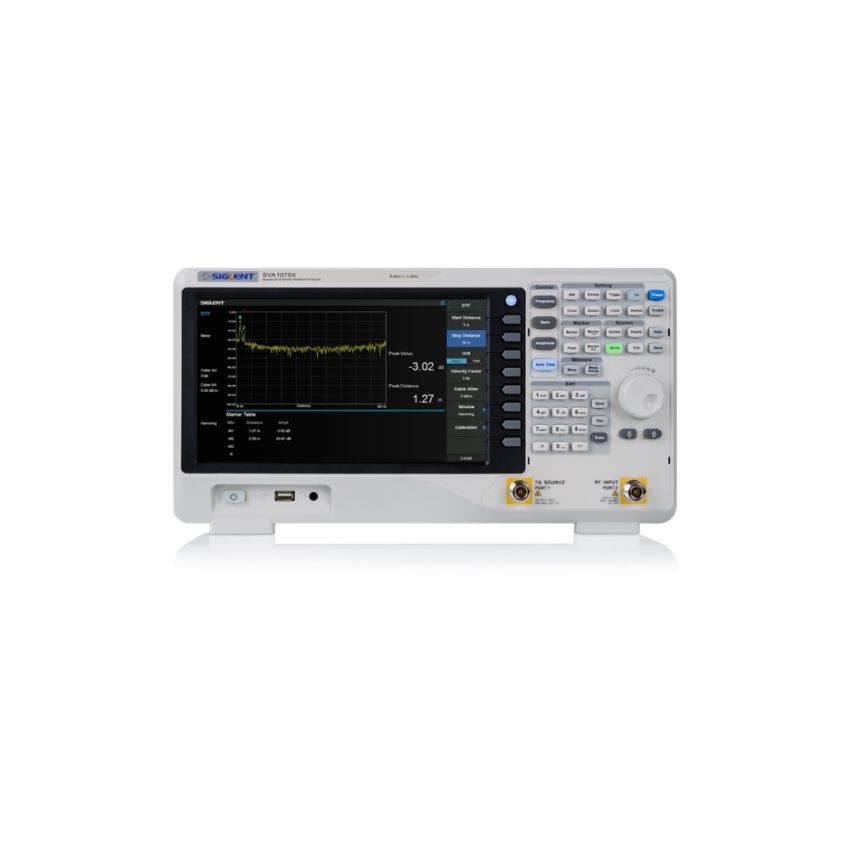

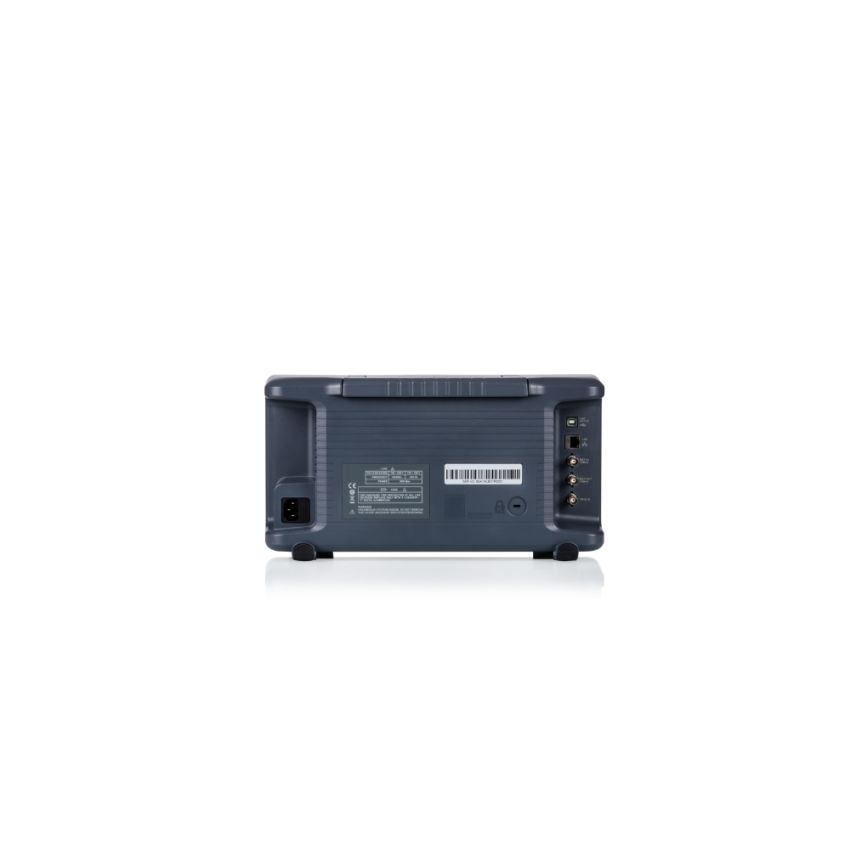

Siglent SVA1075X, Spectrum & Vector Network Analyzer, 9 kHz–7.5 GHz

The Siglent SVA1075X is a versatile RF test instrument combining spectrum analysis and vector network analysis capabilities. It offers a frequency range from 9 kHz to 7.5 GHz, making it suitable for a wide range of applications, including RF component testing, cable and antenna analysis, and signal modulation analysis. The analyzer features a 10.1-inch multi-touch display and supports various optional measurement functions to enhance its versatility.

Key Features

• Dual-functionality: spectrum analysis (9 kHz–7.5 GHz) and VNA (100 kHz–7.5 GHz) capabilities in one.
• Exceptional sensitivity with DANL at –165 dBm/Hz and phase noise < –98 dBc/Hz.
• High accuracy: amplitude uncertainty within ±0.7 dB.
• Ultra-fine resolution bandwidths spanning 1 Hz to 3 MHz.
• Large 10.1″ multi-touch display supporting intuitive operation plus mouse/keyboard control.
• Extendable with software options: EMI testing, modulation analysis, DTF, and advanced measurements.
