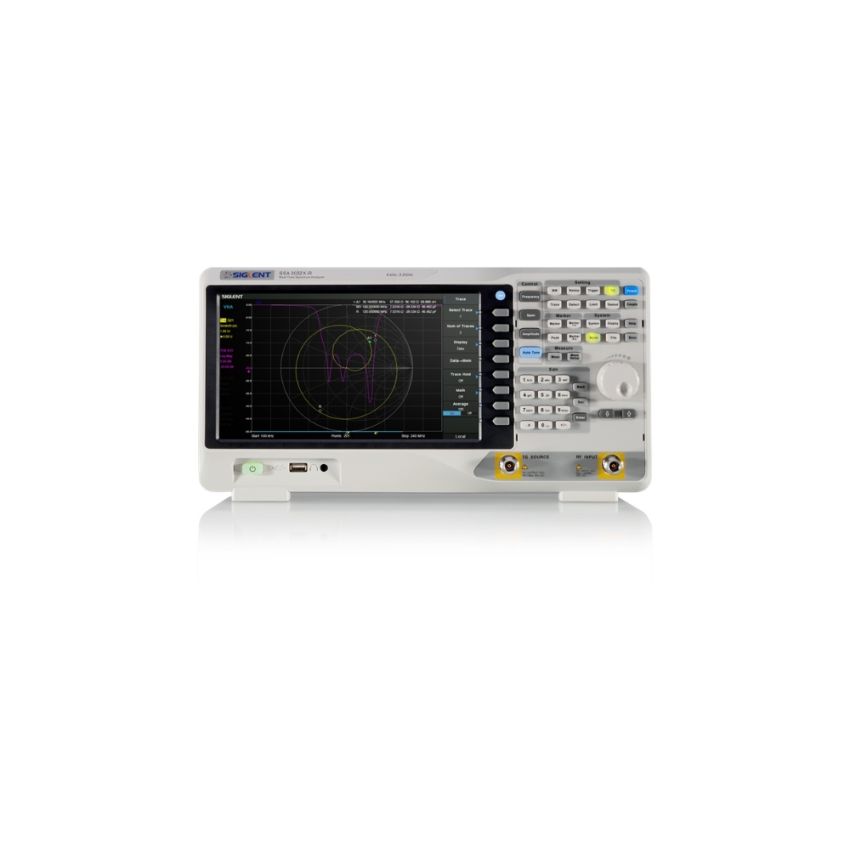

Siglent SSA3032X-R, Real-Time Spectrum Analyzer, 9 kHz–3.2 GHz

The Siglent SSA3032X‑R is a high-performance real-time spectrum analyzer covering 9 kHz to 3.2 GHz, ideal for RF spectrum monitoring, signal analysis, and vector network testing. Featuring a 40 MHz real-time analysis bandwidth (25 MHz standard), 7.2 µs capture at 100% POI, and –165 dBm/Hz displayed average noise level, this unit supports multiple views including density, spectrogram, 3D, and PvT. Standard include tracking generator and preamplifier; built‑in VNA and distance‑to‑fault functionalities. The 10.1” multi-touch screen with mouse and keyboard support offers intuitive control. Remote connectivity is provided via USB, LAN, and GPIB, with SCPI compatibility. Optional measurement upgrades include analog/digital modulation analysis, EMI compliance, and advanced RF measurements.

Key Features

• Frequency range: 9 kHz–3.2 GHz
• 40 MHz real‑time bandwidth (25 MHz native) with 7.2 µs capture window
• Low noise floor: –165 dBm/Hz (typical)
• Clean phase noise: < –98 dBc/Hz at 1 GHz, 10 kHz offset
• Multi-view display: spectrum, density, spectrogram, 3D, and PvT
• Built‑in tracking generator and preamplifier
