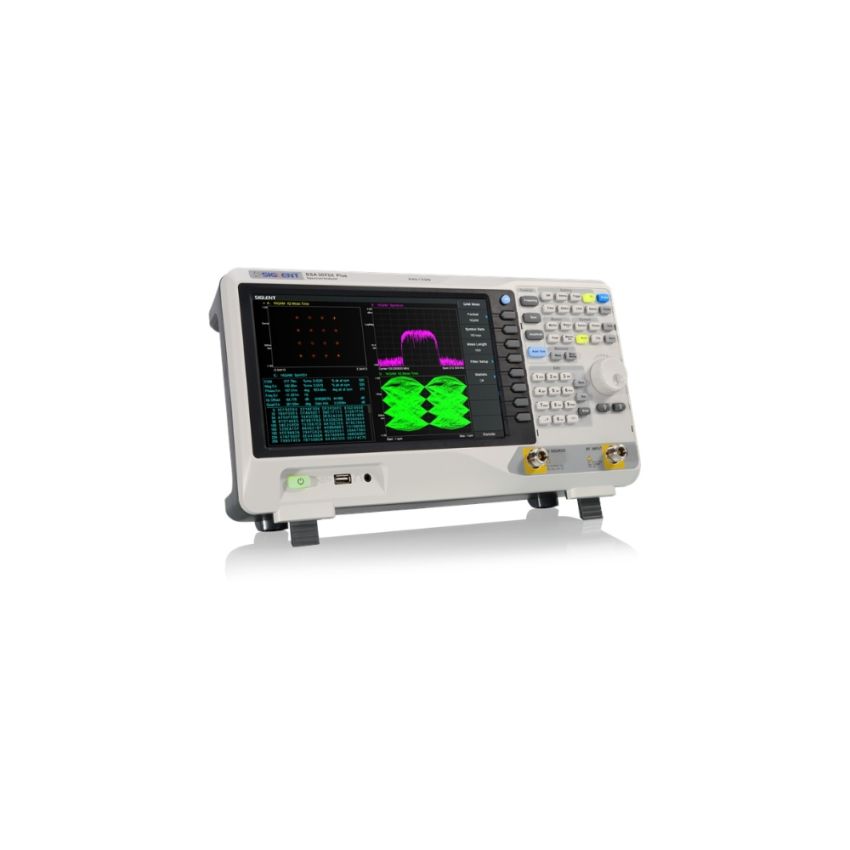

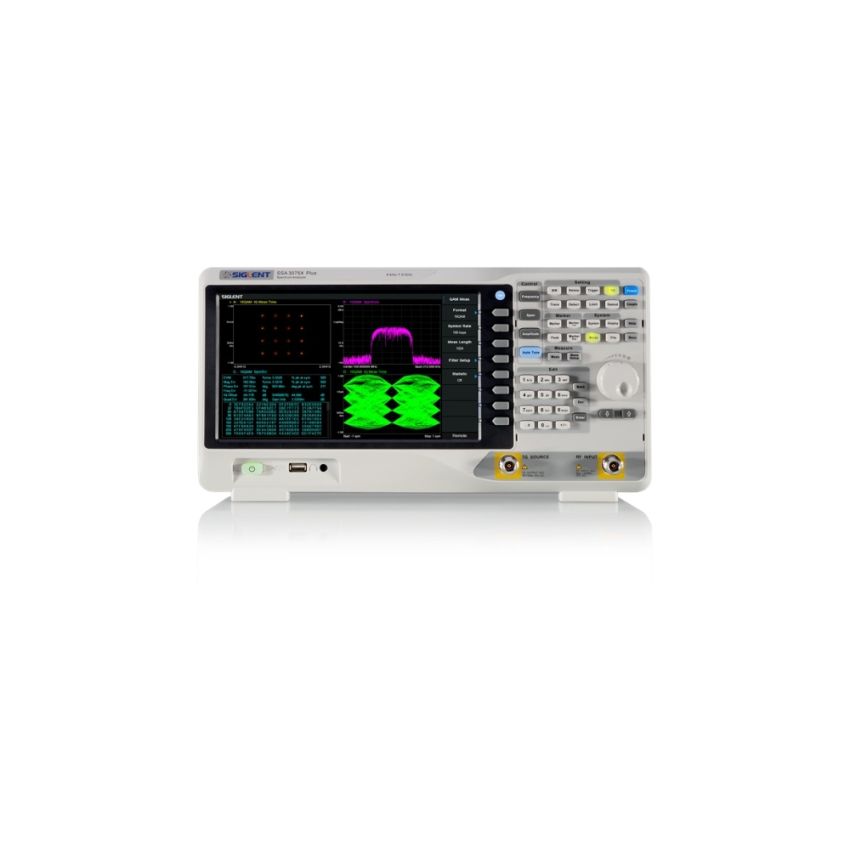

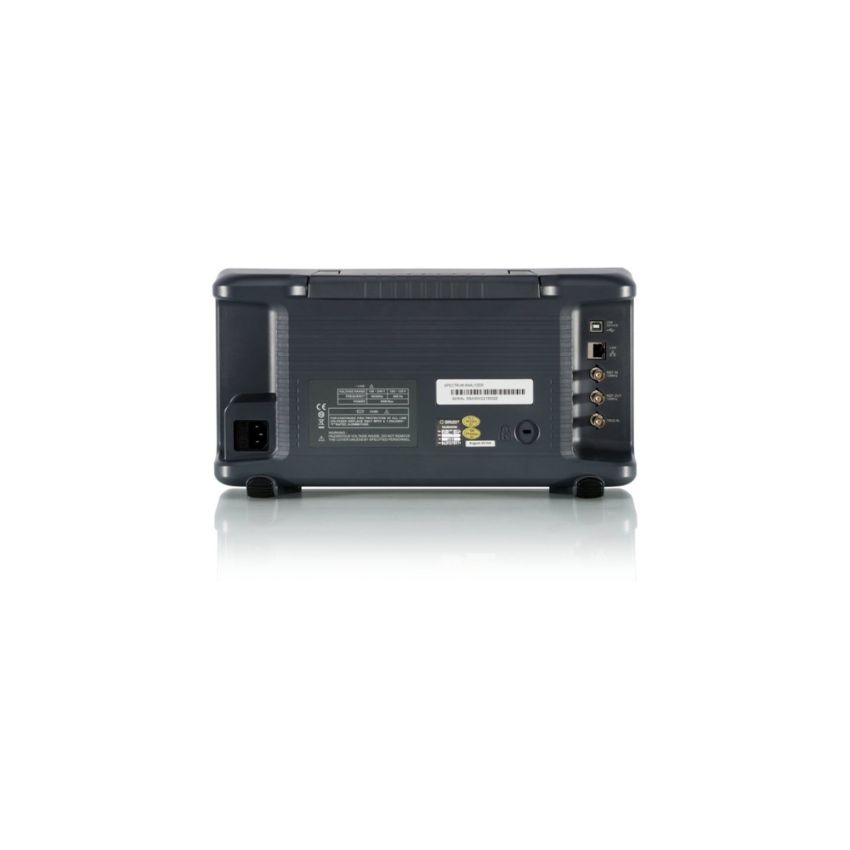

Siglent SSA3075X Plus, 9 kHz–7.5 GHz Touchscreen Spectrum Analyzer

The Siglent SSA3075X Plus is a high-performance touchscreen spectrum analyzer covering 9 kHz to 7.5 GHz. Featuring all-digital IF architecture and a 10.1-inch WVGA multi-touch display, it supports mouse and keyboard input along with web-browser remote control. Standard functionality includes a built-in tracking generator, pre-amplifier, and 1 Hz resolution bandwidth. Optional modules include RF power measurement, vector signal modulation analysis, EMI testing (CISPR), and VSWR/reflection measurements. Compact, lightweight, and packing advanced automatic measurements with fast sweep speeds, it’s ideal for R&D, production, broadcast, maintenance, and site surveying applications.

Key Features

• Frequency Range 9 kHz to 7.5 GHz
• Minimum RBW down to 1 Hz (up to 3 MHz)
• Noise Floor (DANL) to –165 dBm/Hz
• Phase Noise < –98 dBc/Hz @ 10 kHz offset (typ.)
• Amplitude Accuracy total < 0.7 dB
• Built-in 20 dB pre-amplifier and tracking generator (100 kHz–7.5 GHz)
