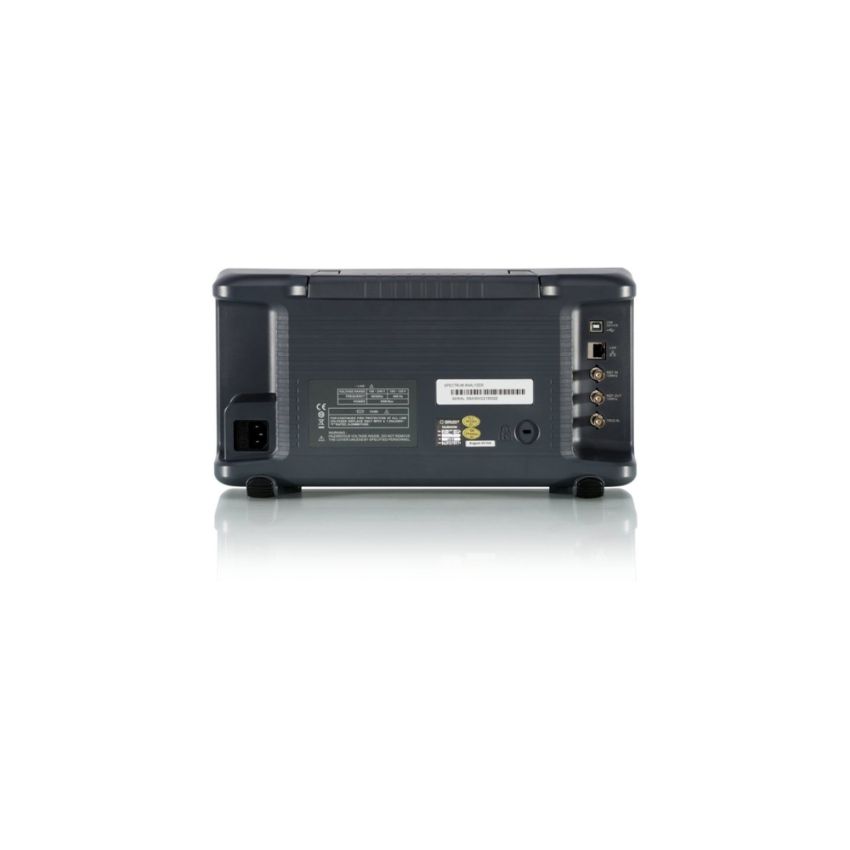

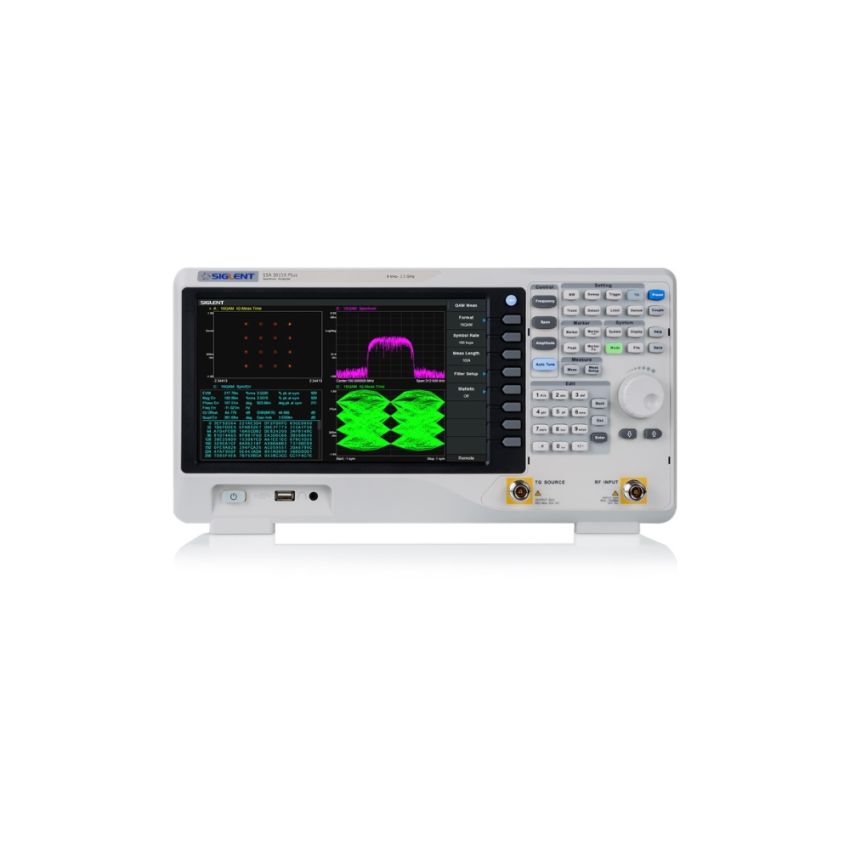

Siglent SSA3015X Plus, Spectrum Analyzer, 9 kHz–1.5 GHz, Multi‑Touch 10.1″ Display

The Siglent SSA3015X Plus is a compact, high-performance spectrum analyzer covering 9 kHz to 1.5 GHz. It features all-digital IF technology, a standard tracking generator, and a built-in preamplifier. With a multi-touch 10.1″ WVGA touchscreen, automatic measurements, and web-browser remote control, it is ideal for applications such as R&D, field work, education, production testing, and maintenance.

Key Features

• Covers 9 kHz to 1.5 GHz frequency range with 1 Hz–1 MHz resolution bandwidth.
• Excellent sensitivity, with DANL around –156 dBm/Hz.
• Low phase noise: better than –98 dBc/Hz at 1 GHz (10 kHz offset).
• 10.1-inch multi-touch display with mouse and keyboard support for intuitive control.
• Built-in preamplifier and tracking generator included for extended functionality.
• Optional software enhancements: modulation analysis, EMI testing, reflection measurement kits, etc.
