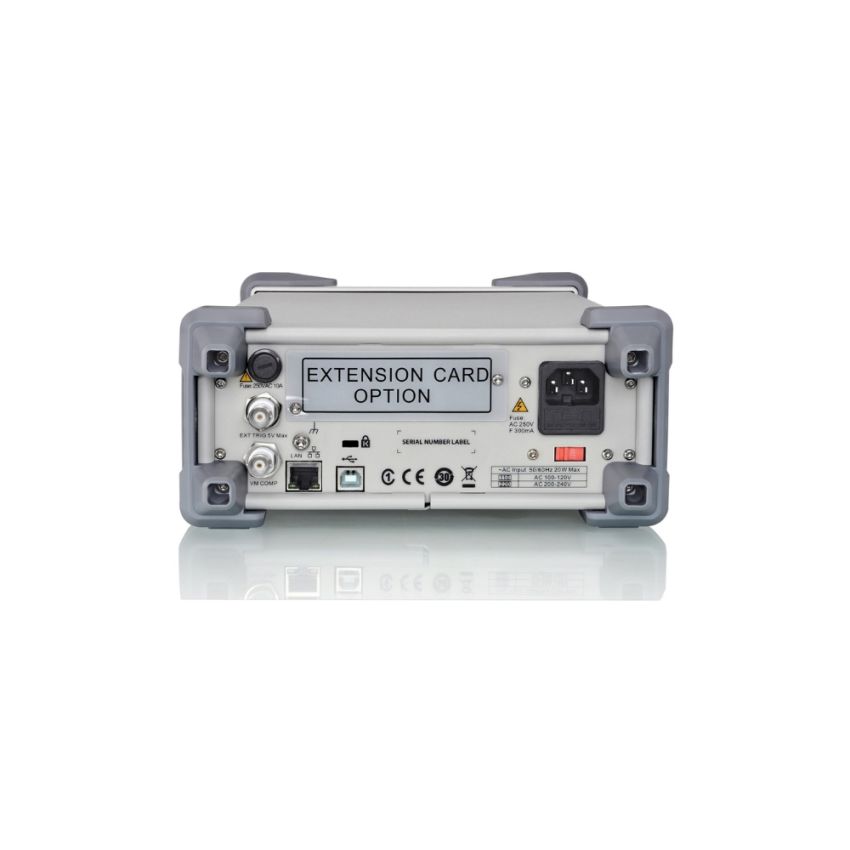

Siglent SDM3065X-SC, 6½‑Digit Dual‑Display Digital Multimeter with 16‑Channel Scanner, 10,000 Readings/s

The Siglent SDM3065X-SC is a high-precision 6½-digit digital bench multimeter featuring a dual-display and an integrated SC1016 scanner card with 12 voltage channels and 4 current channels. It offers a sampling rate of up to 10,000 readings per second and includes true-RMS AC/DC measurement functions. This versatile multimeter supports voltage, current, resistance (2-wire and 4-wire), capacitance, frequency/period, diode testing, continuity checks, and temperature measurement via RTD or thermocouple. Designed for professional and automated test environments, the SDM3065X-SC provides advanced math/statistics capabilities, flexible triggering options, and multiple remote interfaces including USB, LAN, and optional GPIB. Its large 4.3-inch TFT-LCD display enhances readability and user interaction, while the 1 GB internal memory supports extensive data logging and storage.

Key Features

• High-resolution 6½-digit display (2.2 million counts) with ultra-fast sampling at 10,000 readings per second.
• Integrated SC1016 scanner: 12 voltage + 4 current channels for automated multiplexed testing.
• Comprehensive True‑RMS functions: DC/AC voltage, current, resistance, capacitance, frequency, temperature, diode, and continuity.
• Versatile display modes via 4.3‑in TFT LCD: dual-display, trends, histograms, bar charts, and numeric views.
• 1 GB internal flash for on-device storage of readings and configurations.
• Multifaceted connectivity: USB Host/Device, LAN; SCPI support; optional GPIB interface.
