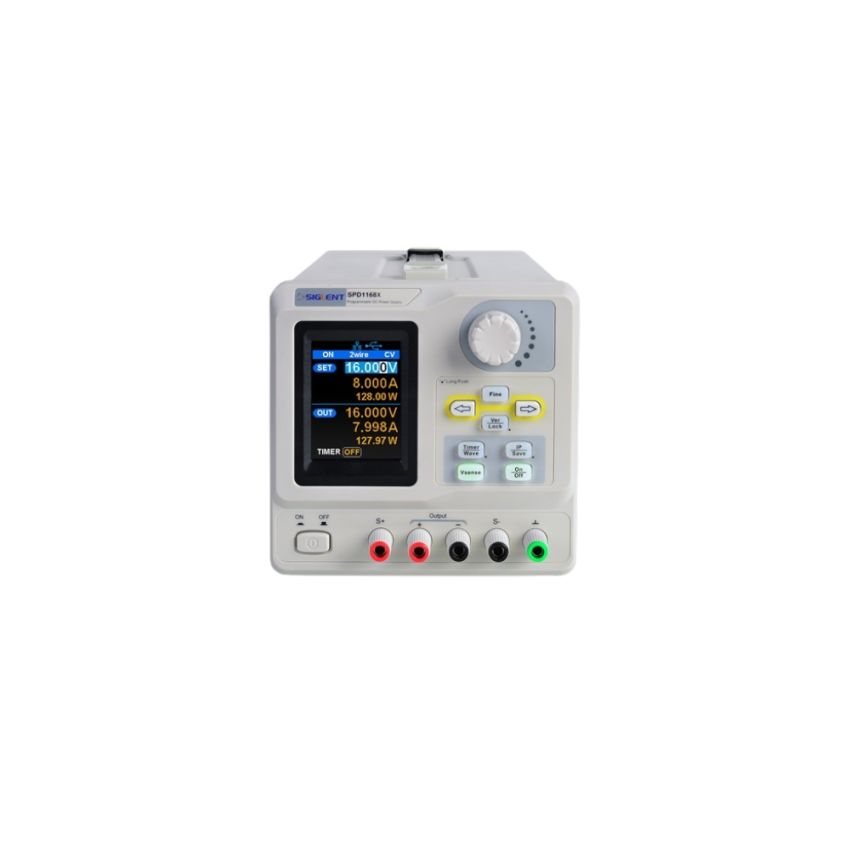

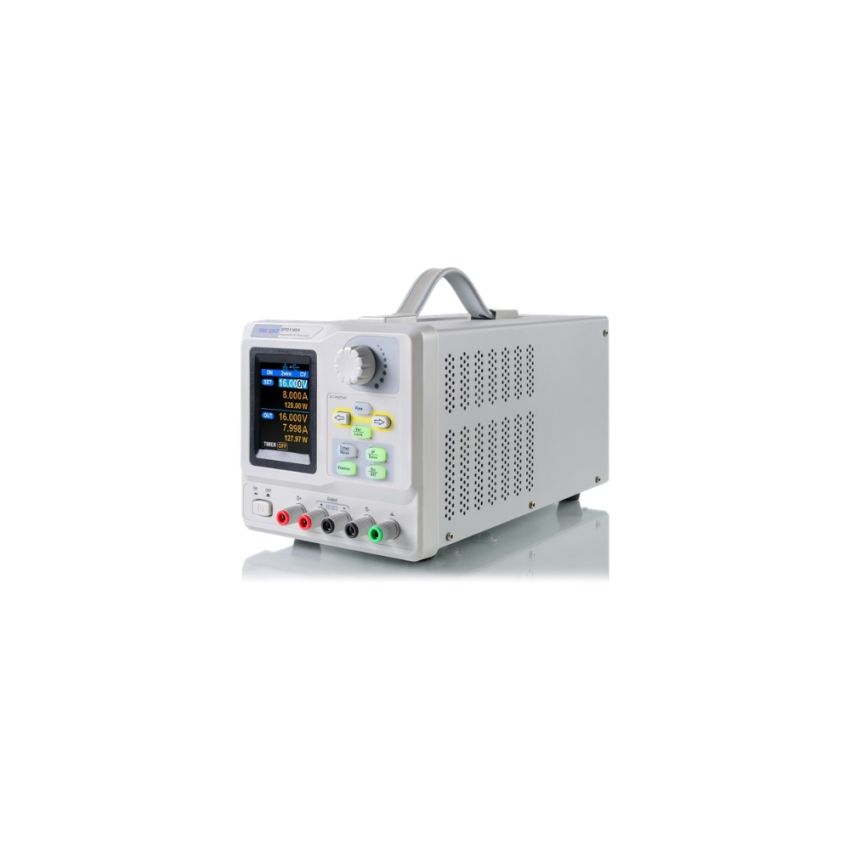

SPD1168X, Single Channel Programmable DC Power Supply, 128 W Output, 16 V 8 A

The Siglent SPD1168X is a professional programmable linear DC power supply providing up to 128 W of precision power through a single output channel. It offers a voltage range from 0 to 16 V and current range from 0 to 8 A with fine resolution of 1 mV and 1 mA. The 2.8 inch true-color TFT display shows real-time voltage and current waveforms and allows easy viewing of settings and timing functions. Remote sensing ensures accurate voltage at the load. With low ripple and noise, fast transient response, and built-in protections, it is ideal for lab, education, production, and development environments. Remote control is supported via USB and LAN using EasyPower software.

Key Features

• Single output channel supporting up to 16 V and 8 A
• High resolution: 1 mV voltage, 1 mA current with 5-digit voltage and 4-digit current display
• Remote sensing via 4-wire configuration for precise voltage at the load
• Low ripple and noise: ≤ 350 µVrms and current noise less than 2 mArms
• Fast transient response: less than 50 microseconds for load changes
• Intuitive 2.8 inch TFT graphical display with waveform and timing output functions
