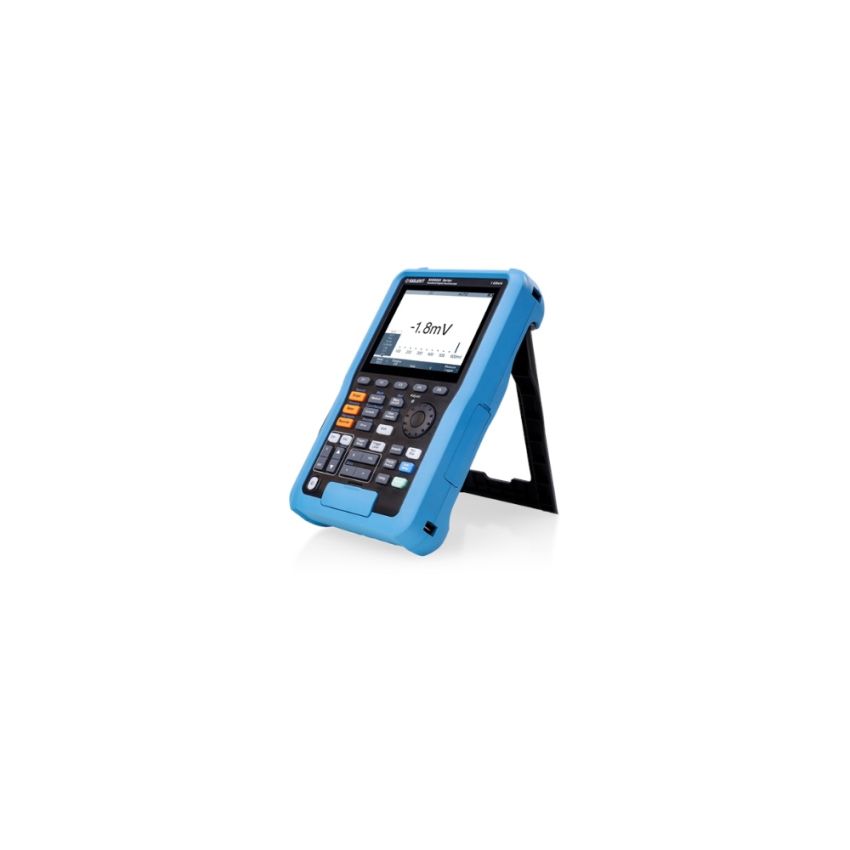

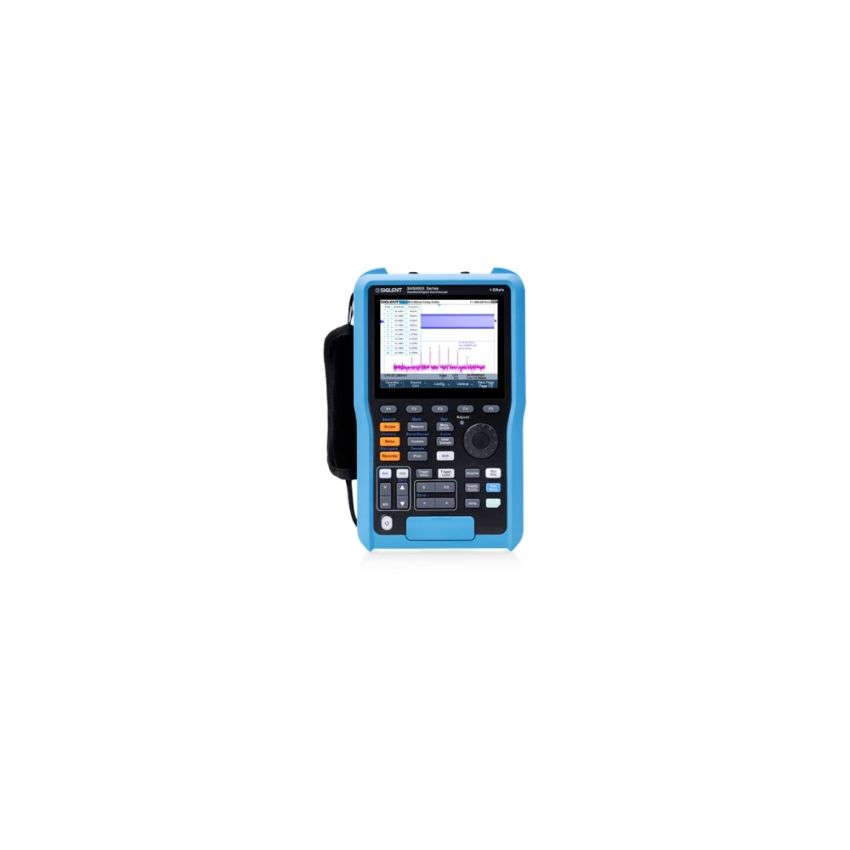

SHS820X, 2 CH Handheld Oscilloscope, 200 MHz Bandwidth

The Siglent SHS820X is a handheld digital oscilloscope designed for engineers and technicians who need a reliable and compact testing solution in the field or lab. With a 200 MHz bandwidth and up to 1 GSa/s sampling rate in single-channel mode (500 MSa/s per channel in dual-channel mode), it ensures accurate signal capture across a wide range of applications. It features deep memory up to 12 Mpts (single-channel) and 6 Mpts (dual-channel), along with a high waveform capture rate of up to 100,000 waveforms per second in normal mode and 400,000 waveforms per second in sequence mode.The SHS820X integrates a 6000-count true RMS digital multimeter with isolated input, enabling both voltage and current measurements in a safe and efficient manner. Its 5.6-inch TFT-LCD screen delivers sharp visuals at 640 × 480 resolution, enhanced by 256-level intensity grading and color temperature display. The unit is IP51-rated for dust and drip resistance and features robust insulation, making it ideal for industrial and outdoor environments. With a long-lasting 6900 mAh battery, it offers up to 5.5 hours of continuous operation on a single charge.

Key Features

• Dual-channel handheld oscilloscope with 200 MHz bandwidth
• Real-time sampling rate up to 1 GSa/s (single channel), 500 MSa/s (dual channel)
• Large memory depth: 12 Mpts (single), 6 Mpts (dual) for high-resolution waveforms
• Integrated isolated 6000-count true RMS multimeter with auto-ranging
• High waveform update rate up to 400,000 wfms/s in sequence mode
• IP51-rated enclosure with up to 5.5 hours of battery operation
