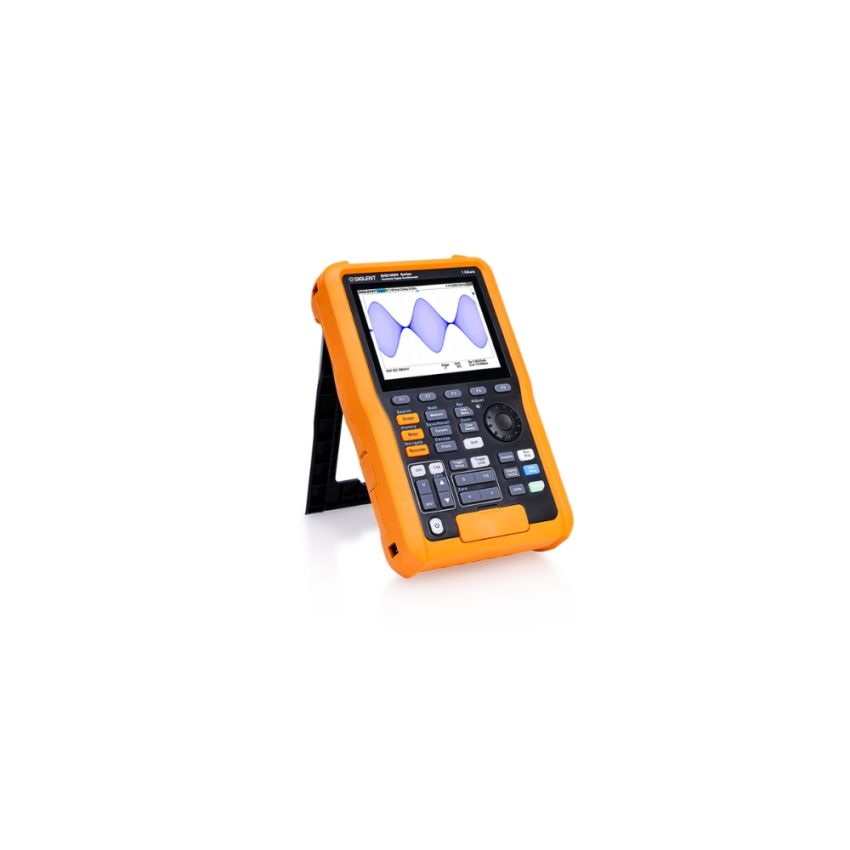

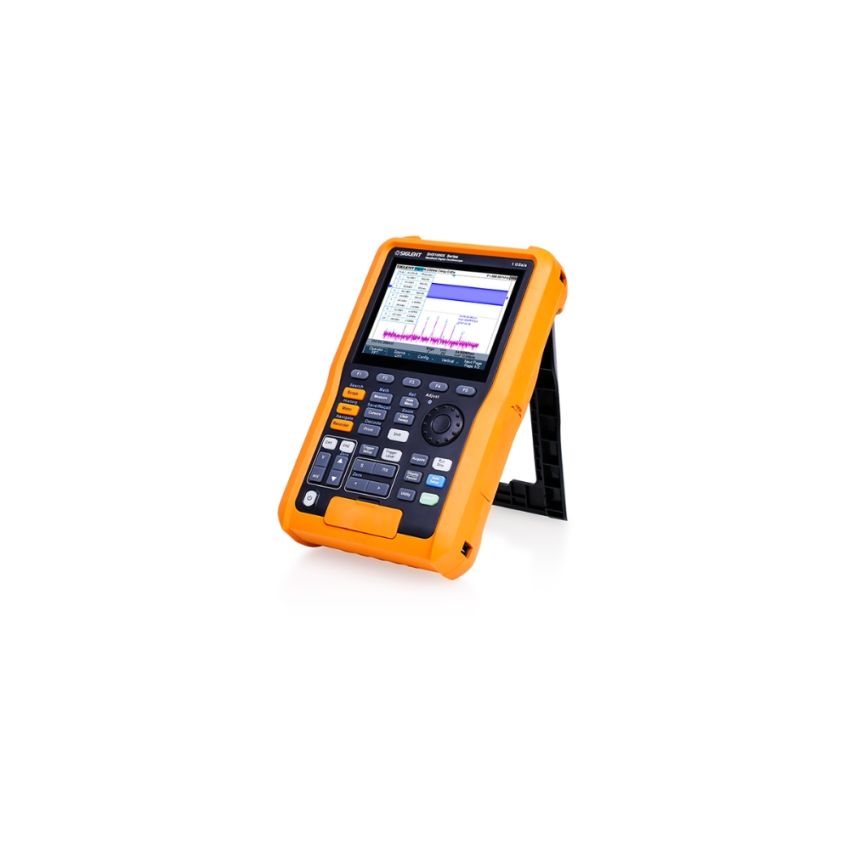

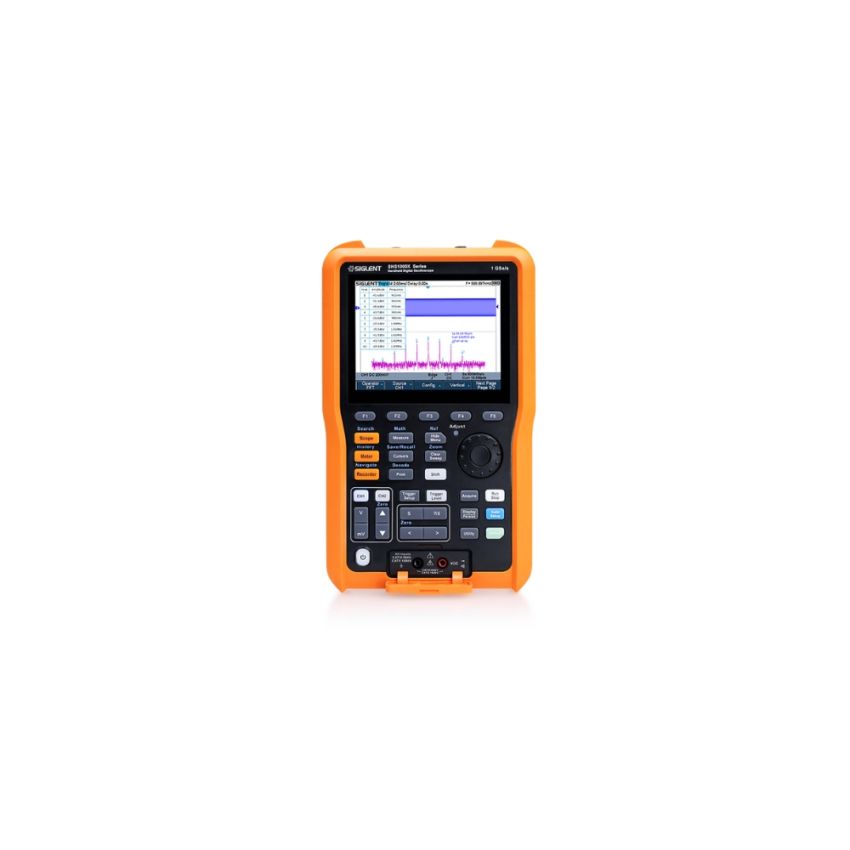

SHS1202X, 2 CH Handheld Oscilloscope, 200 MHz Bandwidth, Isolated Inputs

The Siglent SHS1202X is a high-performance handheld digital oscilloscope offering 200 MHz analog bandwidth and two fully isolated input channels. With up to 1 GSa/s real-time sampling rate and deep memory depth of up to 12 Mpts in single-channel mode, this device ensures precise waveform capture for a wide range of applications. Equipped with Siglent’s SPO technology, the SHS1202X supports a waveform capture rate of up to 100,000 waveforms per second in normal mode and 400,000 waveforms per second in sequence mode. It features a high-resolution 5.6-inch TFT-LCD display (640 × 480) with 256-level intensity grading and color temperature display modes. This oscilloscope also includes a built-in 6000-count True RMS multimeter with full isolation, allowing for safe and versatile measurements in demanding environments. Additional features include protocol decoding for I2C, SPI, UART, CAN, and LIN, waveform recorder, pass/fail testing, and long battery operation. Its IP51-rated enclosure provides dust and limited water resistance, making it ideal for field and industrial applications.

Key Features

• 200 MHz analog bandwidth with 2 fully isolated input channels
• Real-time sampling rate up to 1 GSa/s single channel or 500 MSa/s per channel
• Up to 12 Mpts memory depth for single channel, 6 Mpts per channel in dual mode
• 5.6-inch TFT-LCD with 640 × 480 resolution and 256-level intensity grading
• Supports up to 400,000 wfms/s waveform capture rate in sequence mode
• Built-in 6000-count True RMS multimeter with isolated measurement capability
