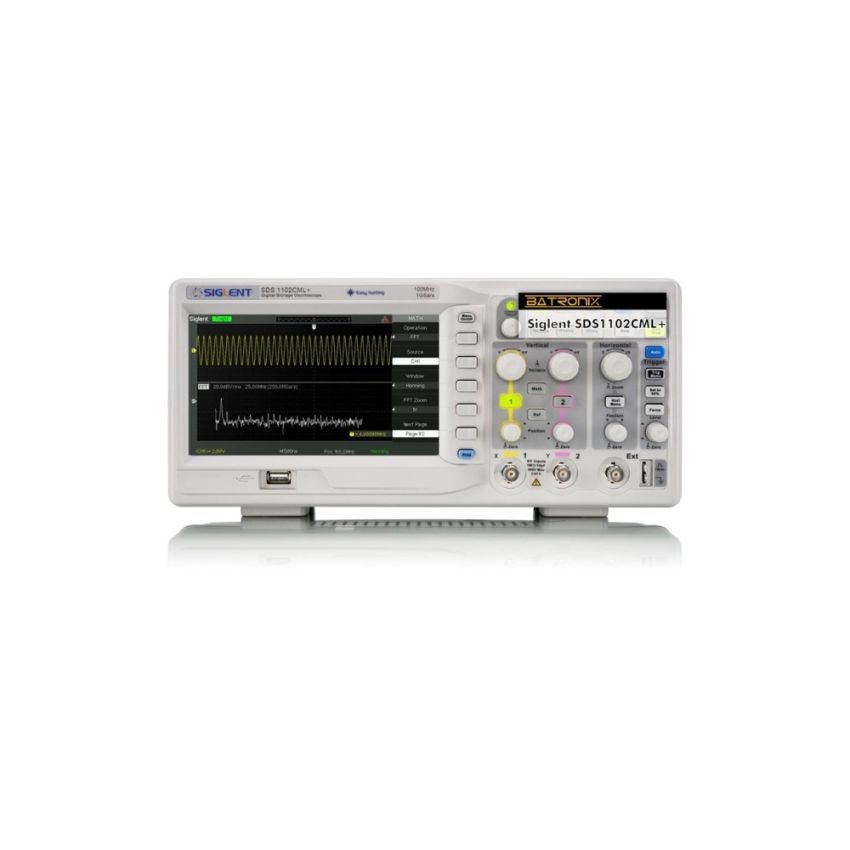

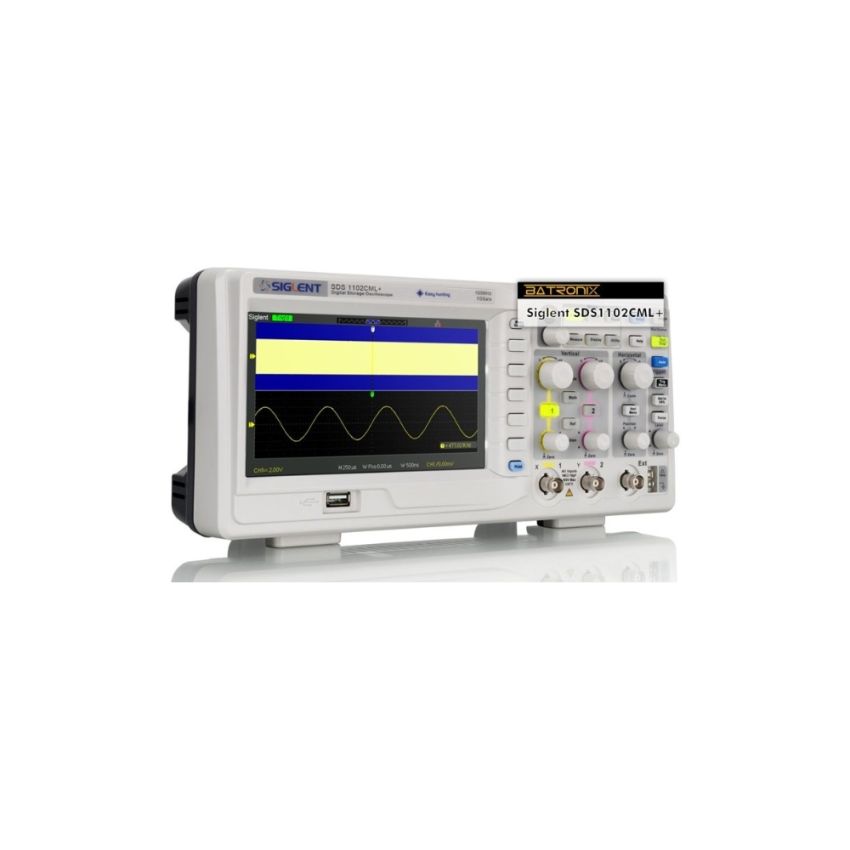

SDS1102CML+, 2 CH Oscilloscope, 100 MHz Bandwidth

The Siglent SDS1102CML+ is a 2-channel digital oscilloscope offering a 100 MHz bandwidth and a real-time sampling rate of up to 1 GSa/s. It features a maximum memory depth of 2 Mpts per channel, enabling detailed waveform analysis. The oscilloscope employs a 7-inch TFT-LCD display with 800 × 480 resolution, providing clear visualization of waveforms. It supports various trigger types, including Edge, Pulse, Video, Slope, and Alternate, and offers multiple mathematical functions such as addition, subtraction, multiplication, division, and FFT. The device also includes a 6-digit frequency counter and supports USBTMC protocol and SCPI commands for remote control.

Key Features

• 100 MHz analog bandwidth with 1 GSa/s real-time sampling for accurate waveform capture.
• Large 2 Mpts memory depth for detailed and extended signal acquisitions.
• Multi-mode trigger system including edge, pulse, slope, video, and alternate.
• Built-in analysis tools: FFT, digital filters, waveform recorder, and pass/fail testing.
• 32 auto measurement parameters plus customizable multi-language interface and on-screen help.

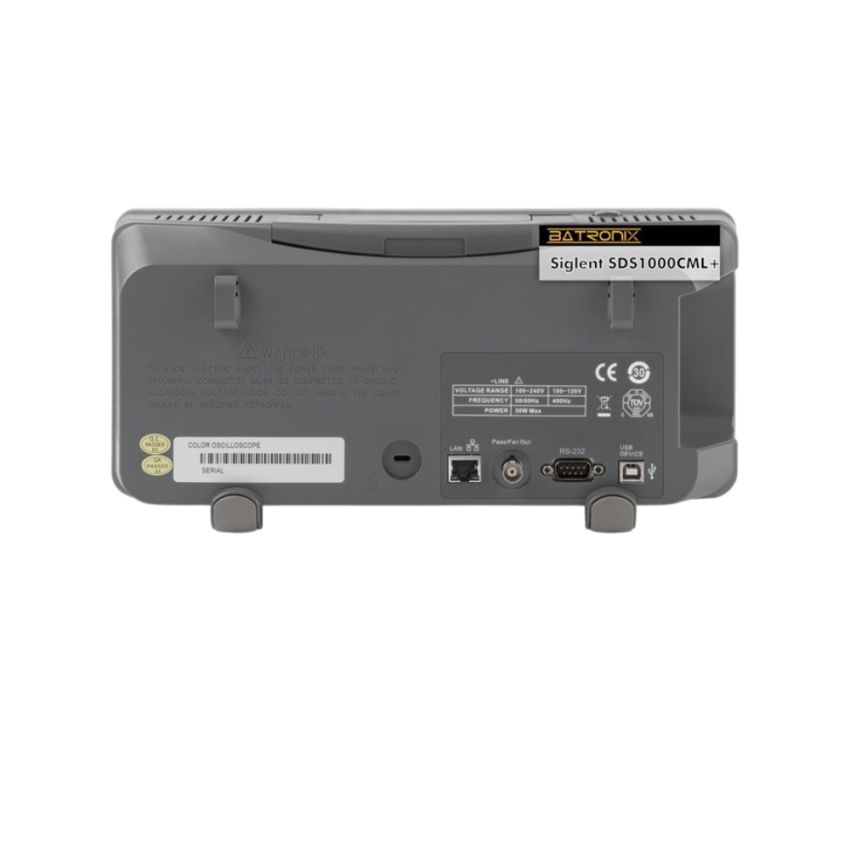

• Flexible connectivity with USB host/device, LAN (VXI‑11), and Pass/Fail output for automation or remote use.
