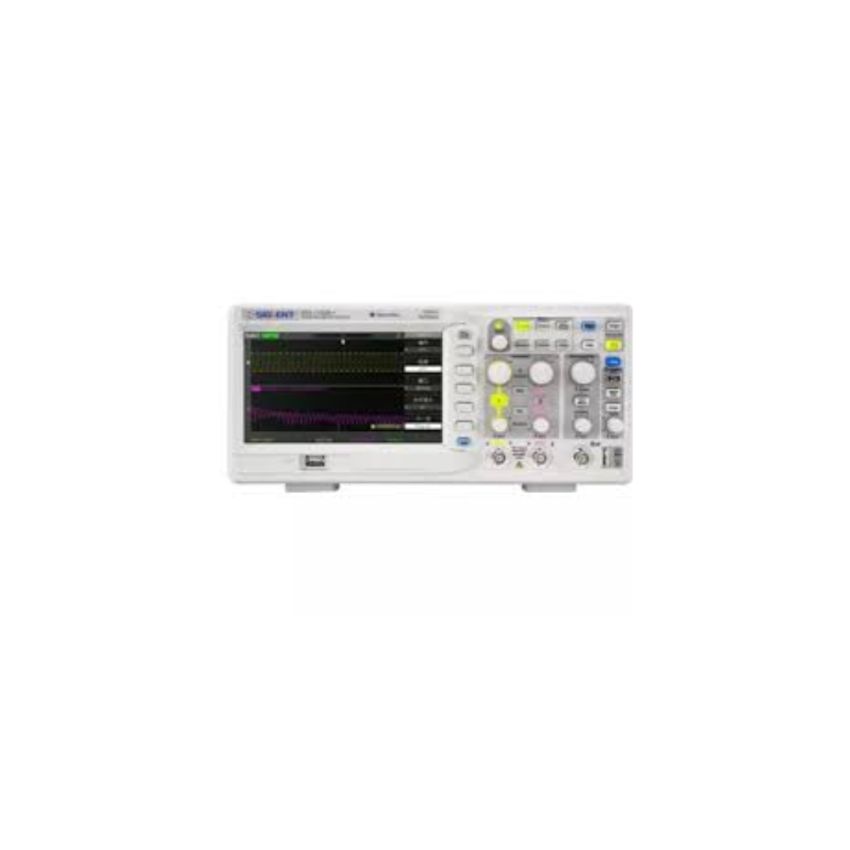

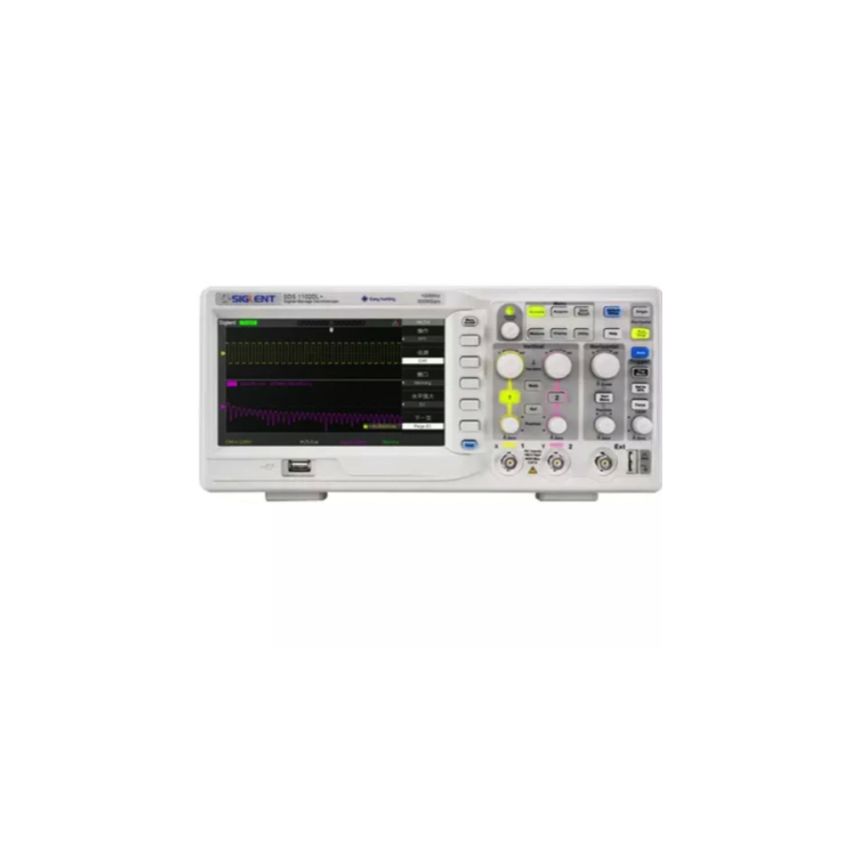

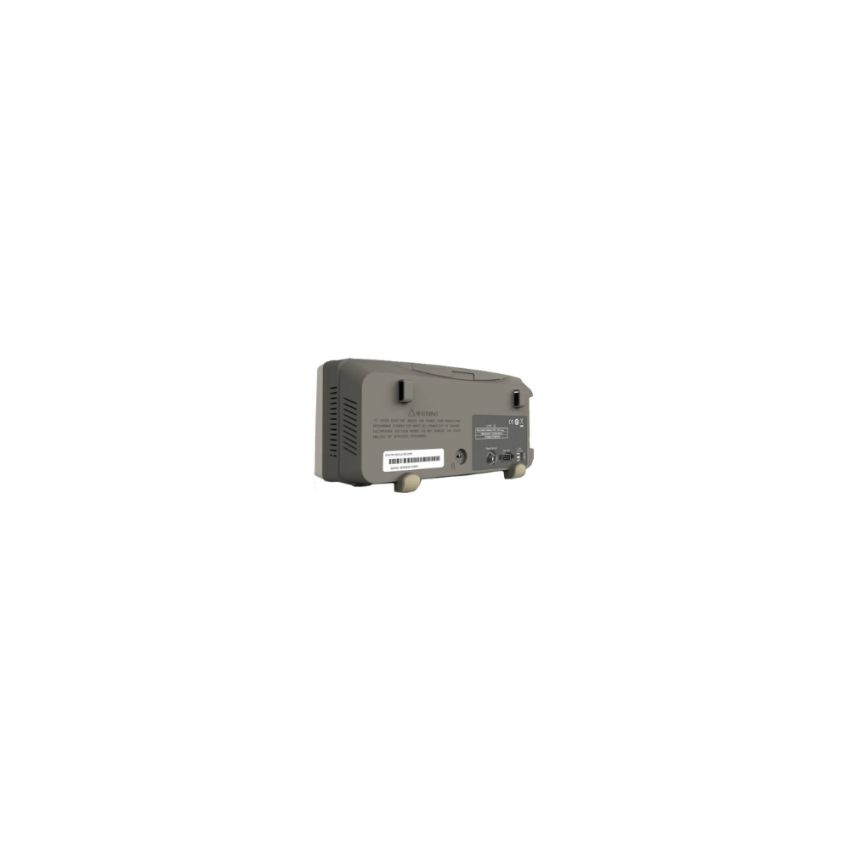

SDS1202DL+, 2 CH Oscilloscope, 200 MHz Bandwidth

The Siglent SDS1202DL+ is a 2-channel digital oscilloscope offering a 200 MHz bandwidth and a real-time sampling rate of up to 500 MSa/s. It features a maximum memory depth of 32 Kpts per channel, enabling detailed waveform analysis. The oscilloscope employs a 7-inch TFT-LCD display with 800 × 480 resolution, providing clear visualization of waveforms. It supports various trigger types, including Edge, Pulse, Video, Slope, and Alternate, and offers multiple mathematical functions such as addition, subtraction, multiplication, division, and FFT. The device also includes a 6-digit frequency counter and supports USBTMC protocol and SCPI commands for remote control.

Key Features

• 200 MHz analog bandwidth
• Real-time sampling rate up to 500 MSa/s
• Memory depth up to 32 Kpts per channel
• 7-inch TFT-LCD display with 800 × 480 resolution
• Trigger types: Edge, Pulse, Video, Slope, Alternate
• Mathematical functions: addition, subtraction, multiplication, division, FFT
