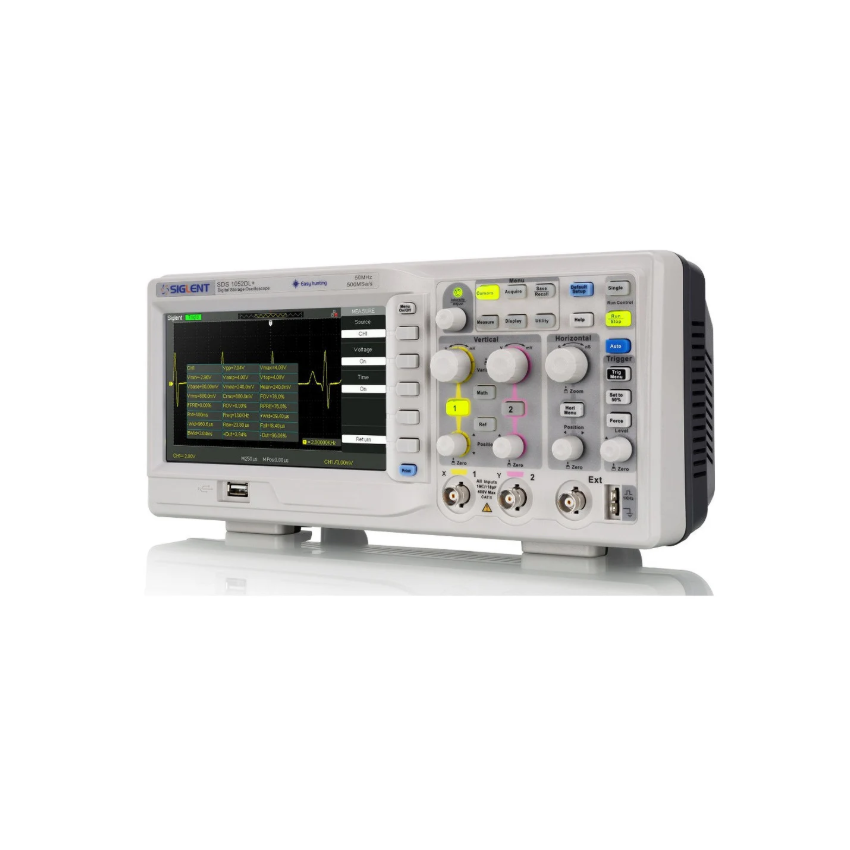

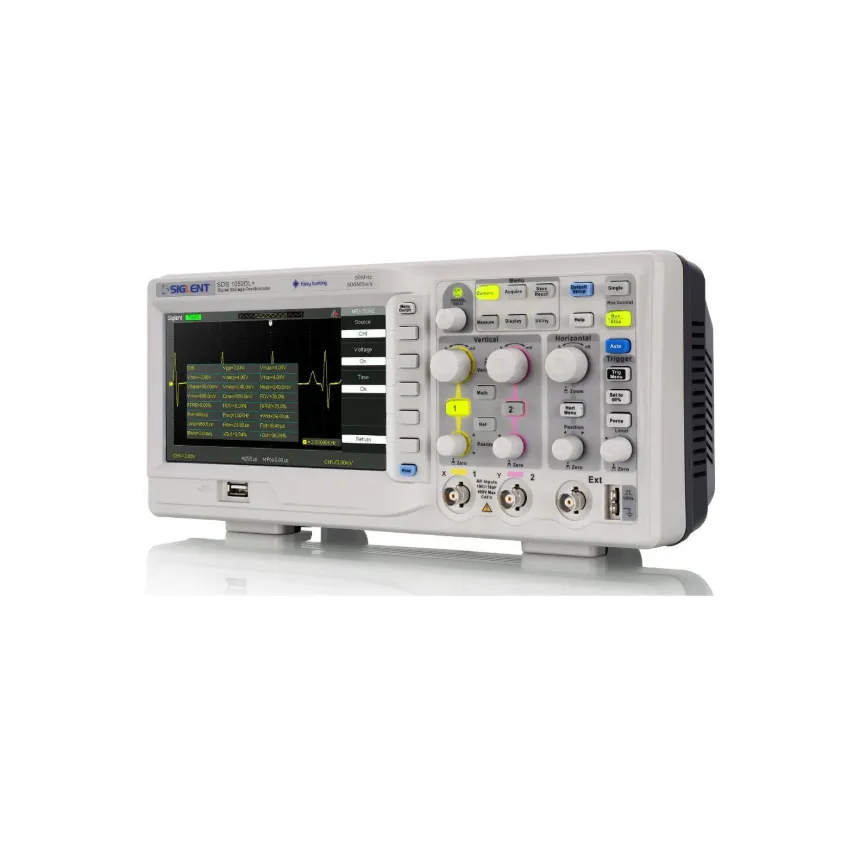

SDS1102DL+, 2 CH Oscilloscope, 100 MHz Bandwidth

The Siglent SDS1102DL+ is a 2-channel digital oscilloscope offering a 100 MHz bandwidth and a real-time sampling rate of up to 500 MSa/s. It features a maximum memory depth of 32 Kpts per channel, enabling detailed waveform analysis. The oscilloscope employs a 7-inch TFT-LCD display with 800 × 480 resolution, providing clear visualization of waveforms. It supports various trigger types, including Edge, Pulse, Video, Slope, and Alternate, and offers multiple mathematical functions such as addition, subtraction, multiplication, division, and FFT. The device also includes a 6-digit frequency counter and supports USBTMC protocol and SCPI commands for remote control.

Key Features

• 100 MHz analog bandwidth with 500 MSa/s real-time sampling rate
• 32 kpts memory depth for detailed waveform capture
• Versatile trigger modes: edge, pulse, slope, video, and alternate
• TFT-LCD display with multi-language on‑screen help and intuitive interface
• Built-in FFT, digital filter, waveform recording, and comprehensive auto measurement tools
• Multiple connectivity: USB host, USB device, LAN (VXI-11), and Pass/Fail output
