SDS1104X HD, 4 Channel Oscilloscope, 100 MHz Bandwidth, 12 bit Resolution

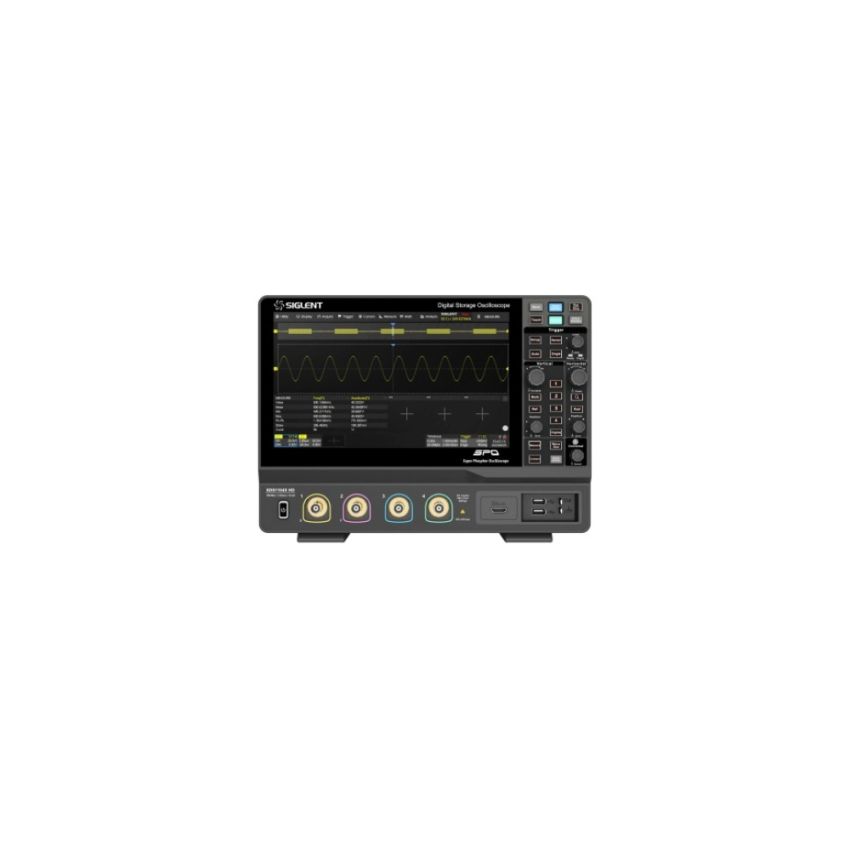

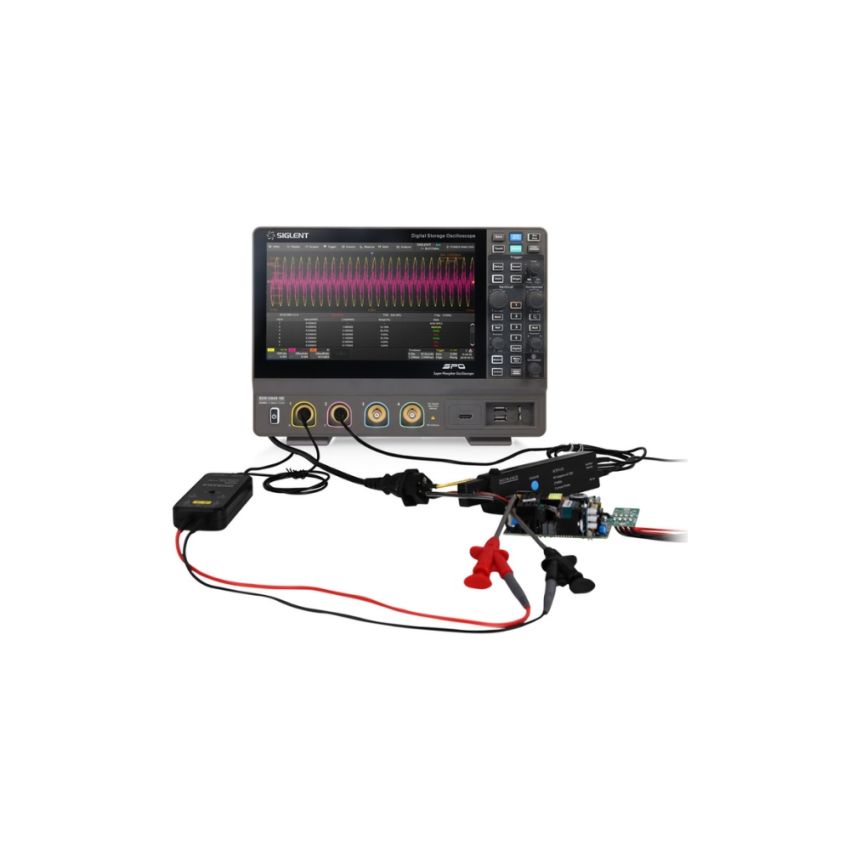

The Siglent SDS1104X HD is a high-resolution 4 channel oscilloscope designed to deliver precise and reliable measurements. Equipped with a 12 bit analog-to-digital converter, it offers four times the resolution of standard 8 bit scopes, enabling clearer visibility of signal details and improved measurement accuracy. It features a real-time sampling rate of up to 2 GSa per second in single-channel mode and a memory depth of up to 100 Mpts, allowing users to capture and analyze long sequences without sacrificing detail.The device includes a large 10.1 inch capacitive touchscreen display with a resolution of 1024 by 600 pixels, enabling intuitive operation and advanced waveform visualization through color temperature and intensity grading modes. The SDS1104X HD incorporates serial bus decoding for protocols such as I2C, SPI, UART, CAN, and LIN, with decode-only options available for CAN FD and FlexRay. Combined with advanced triggering and analysis features, this oscilloscope is ideal for a wide range of applications in design, testing, and education.

Key Features

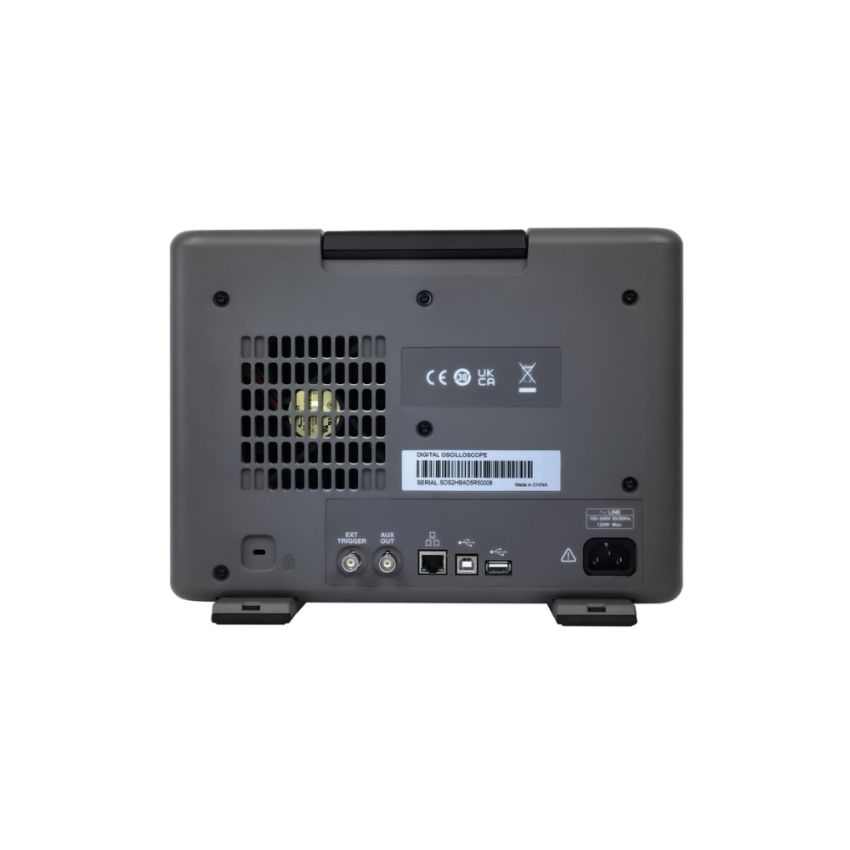

• Four channel input with optional external trigger
• 100 MHz bandwidth and high precision 12 bit vertical resolution
• Real time sampling up to 2 GSa per second in single-channel mode
• 100 Mpts memory depth per channel enables long-duration capture
• Advanced SPO technology with up to 500000 waveforms per second capture rate
• Serial decoding for I2C, SPI, UART, CAN, and LIN with additional protocol decode options
