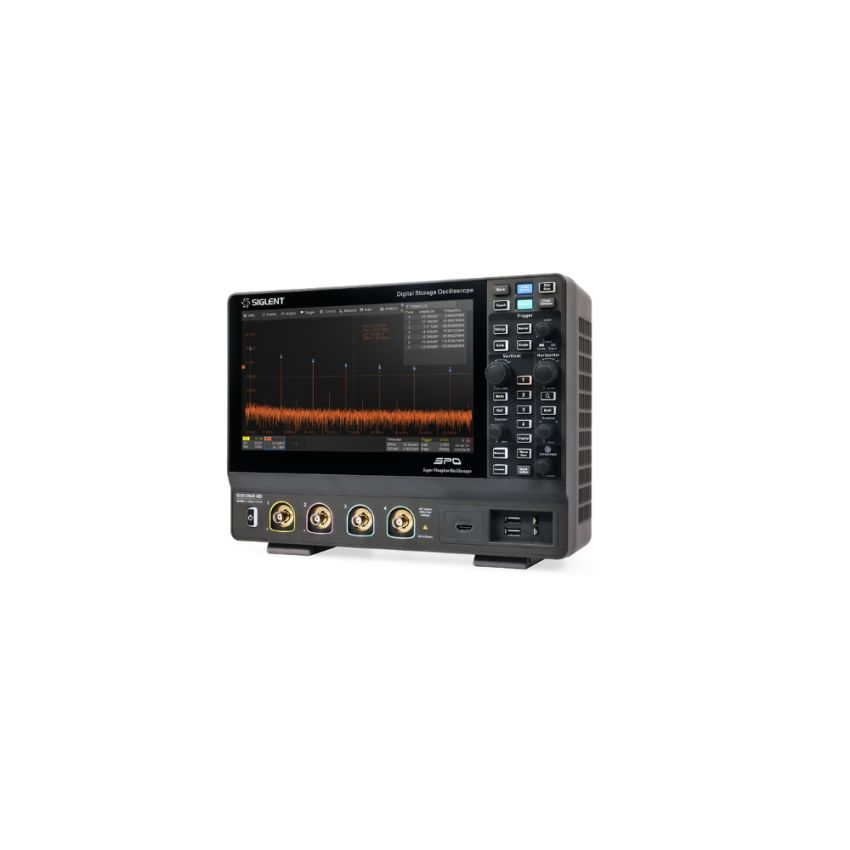

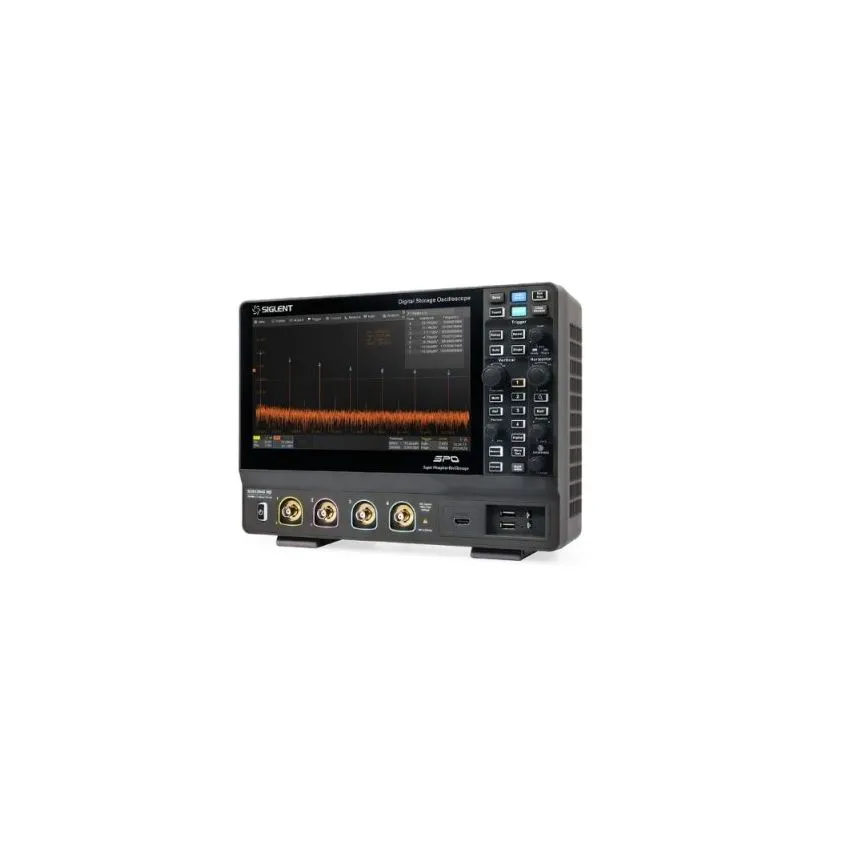

SDS1102X HD, 2CH Oscilloscope, 100 MHz Bandwidth, 12‑bit Resolution

The Siglent SDS1102X HD is a high-performance two-channel oscilloscope designed for engineers and professionals who require enhanced signal fidelity and precise measurements. With a bandwidth of 100 MHz and an impressive 12-bit vertical resolution, it offers detailed waveform visualization with minimal noise. The device supports a sampling rate of up to 2 GSa/s in single-channel mode and features a maximum memory depth of 100 Mpts per channel, enabling extended signal capture with clarity,Its responsive 10.1-inch capacitive touchscreen display provides an intuitive user experience with advanced viewing modes including 256-level intensity grading and color temperature mapping. Equipped with powerful SPO technology, the SDS1102X HD achieves waveform update rates of up to 120,000 wfm/s in normal mode and up to 500,000 wfm/s in sequence mode. Built-in serial bus decoding for I2C, SPI, UART, CAN, and LIN, along with decode-only options for CAN FD and FlexRay, make this scope ideal for embedded system debugging and signal analysis.

Key Features

• 12-bit high-resolution ADC delivers precise and low-noise waveform detail
• 2 GSa/s maximum sampling rate in single-channel mode
• 100 Mpts memory depth per channel for deep signal acquisition
• Waveform capture rate up to 500,000 wfm/s in sequence mode
• Supports multiple serial decoding protocols including I2C, SPI, UART, CAN, and LIN
• Large 10.1 inch capacitive touchscreen with advanced visualization tools
