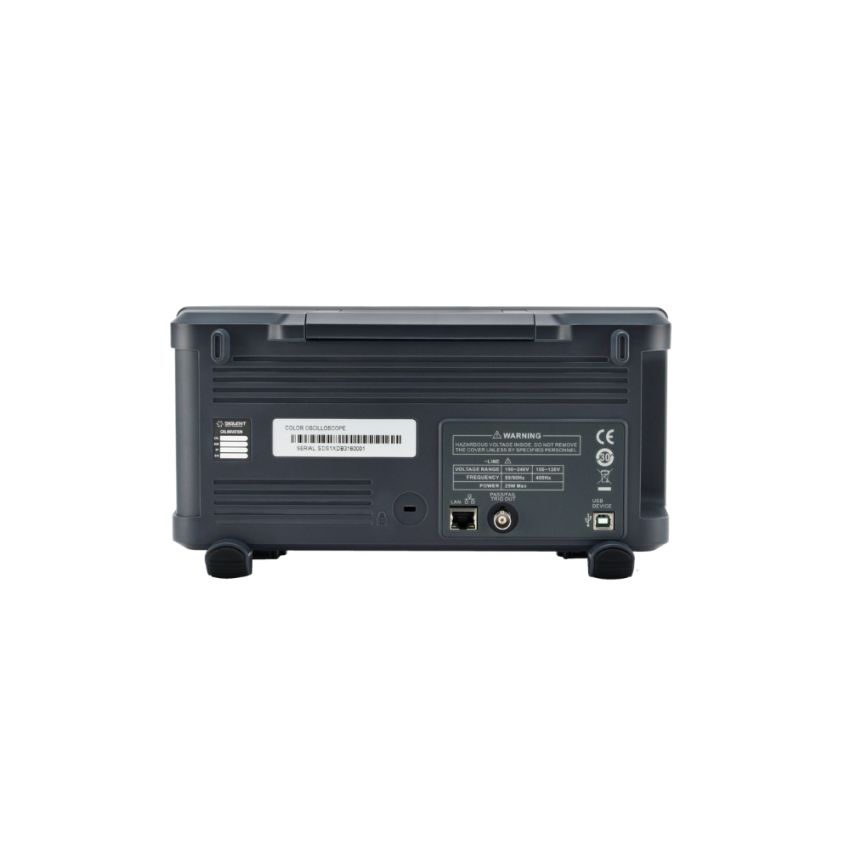

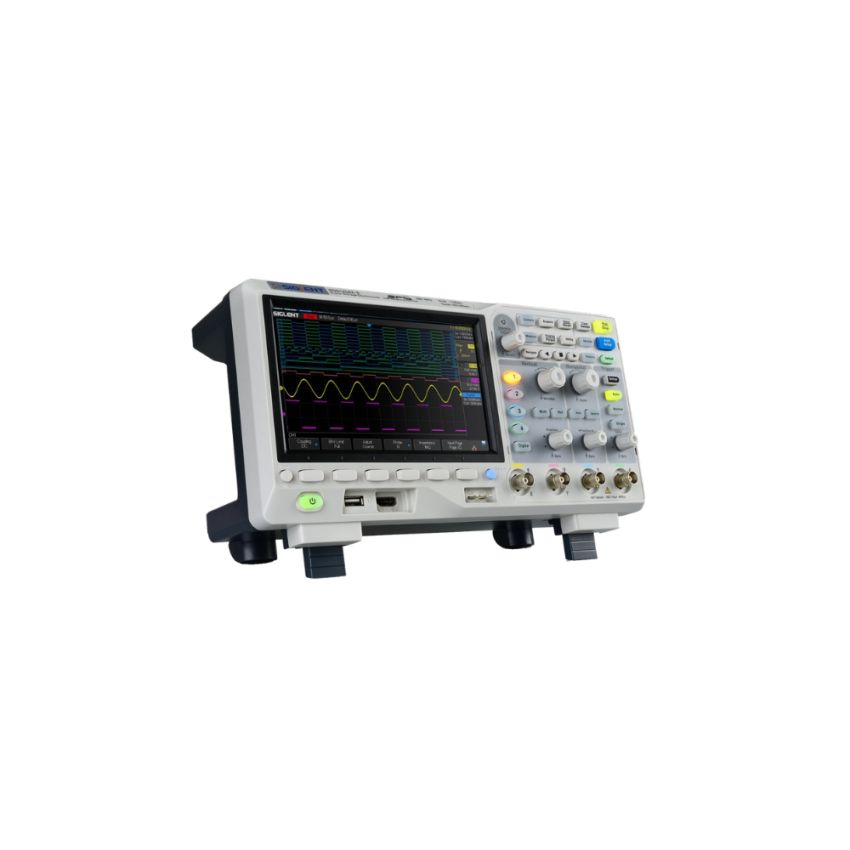

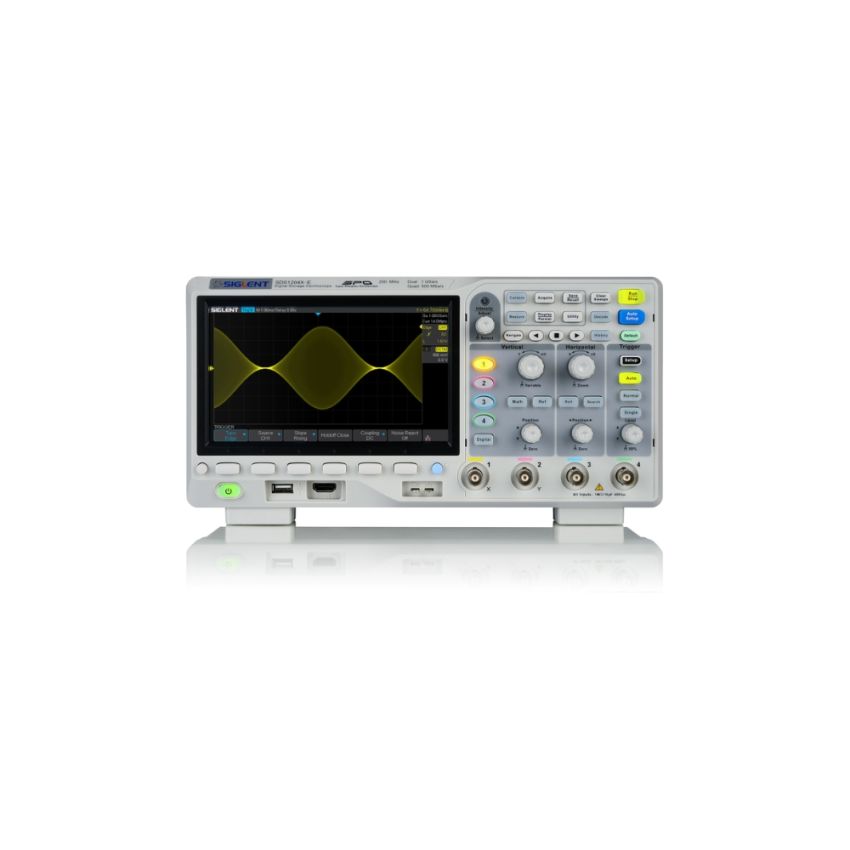

SDS1104X‑E, 4 Channel Oscilloscope, 100 MHz Bandwidth, Super Phosphor Display

The Siglent SDS1104X‑E is a powerful 4‑channel digital oscilloscope designed for engineers, educators, and technicians who require high performance in signal visualization and analysis. With a 100 MHz bandwidth and real-time sampling up to 1 GSa/s, this device captures and analyzes fast and complex signals with precision. It includes a deep memory depth of up to 14 Mpts and supports multiple standard serial bus protocols such as I2C, SPI, UART, CAN, and LIN for decoding and triggering. The 7-inch TFT LCD screen offers 256-level intensity grading and color temperature display, making it easy to distinguish waveform characteristics. Additional features include waveform recording, segment storage, FFT up to 1 Mpts, and pass/fail testing functionality. Compact and intuitive, the SDS1104X-E is a reliable solution for both development labs and educational environments.

Key Features

• 4 analog input channels with external trigger input
• 100 MHz bandwidth for accurate signal analysis
• Real-time sampling up to 1 GSa/s in interleaved mode
• 14 Mpts memory depth for long-duration signal capture
• Serial decoding for I2C, SPI, UART, CAN, and LIN included as standard
• 7-inch TFT LCD with 256-level intensity grading and color temperature display
