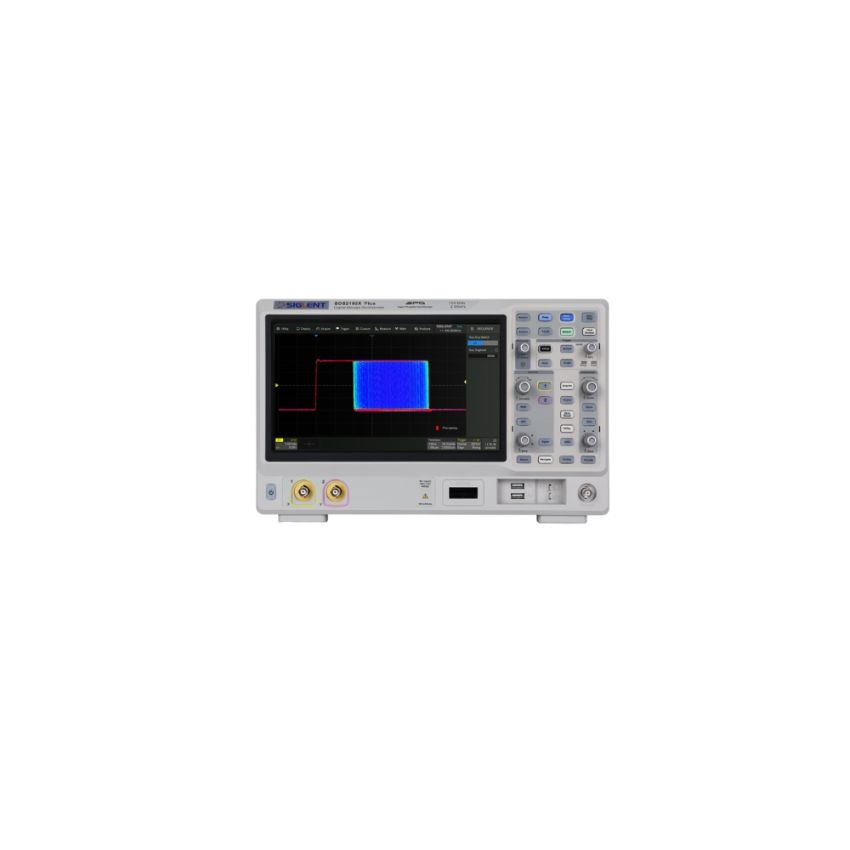

SDS2102X Plus, 2CH Oscilloscope, 100 MHz Bandwidth, 2 GSa/s Sample Rate

The Siglent SDS2102X Plus is a powerful two-channel digital storage oscilloscope designed for advanced signal analysis and debugging. With a 100 MHz bandwidth and a maximum real-time sample rate of 2 GSa/s in interleaving mode, it ensures accurate waveform capture even for fast-changing signals. The device features up to 200 Mpts memory depth per channel, enabling detailed signal exploration over extended time periods. Equipped with advanced SPO technology and 10-bit acquisition mode, the SDS2102X Plus provides high signal fidelity and reduced noise. The 10.1-inch capacitive touch display enhances usability, while built-in decoding for I2C, SPI, UART, CAN, and LIN makes it ideal for embedded system applications.

Key Features

• Dual analog input channels with external trigger support
• 100 MHz bandwidth, upgradable via software
• Real-time sampling rate up to 2 GSa/s (interleaved)
• Deep memory up to 200 Mpts per channel
• 10-bit acquisition mode and SPO technology for high accuracy
• Standard serial decoding for I2C, SPI, UART, CAN, LIN
