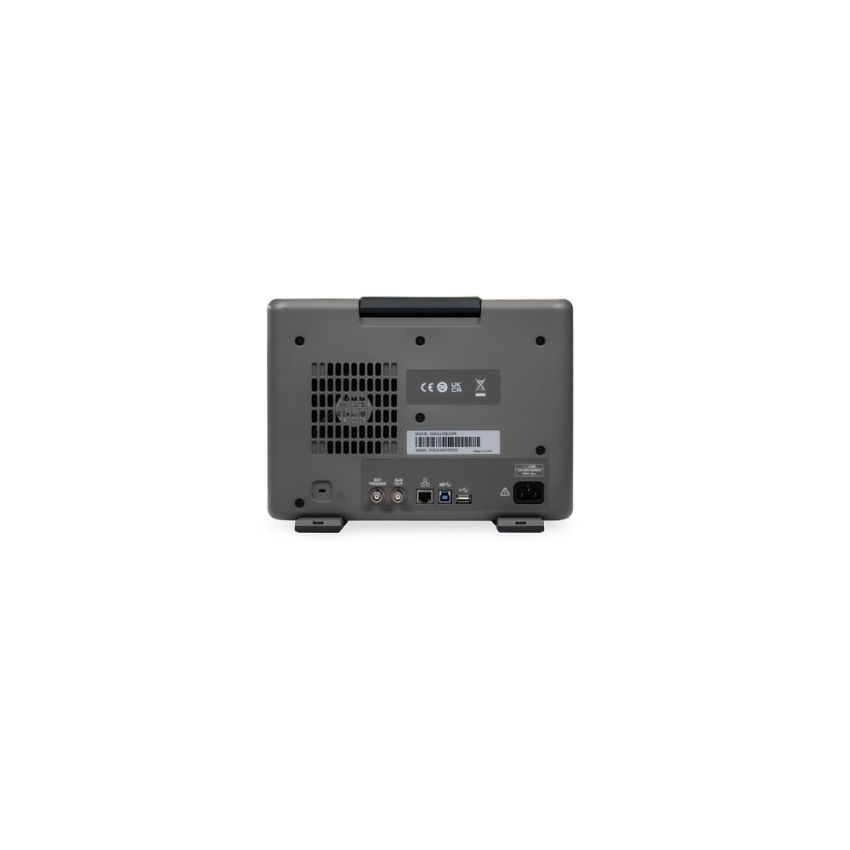

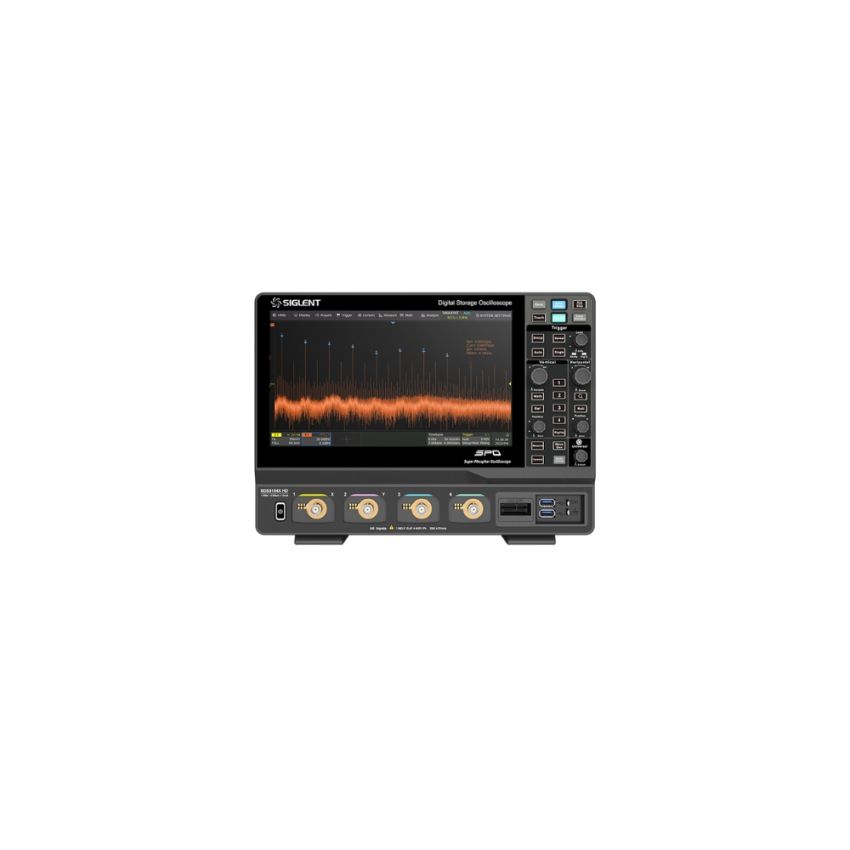

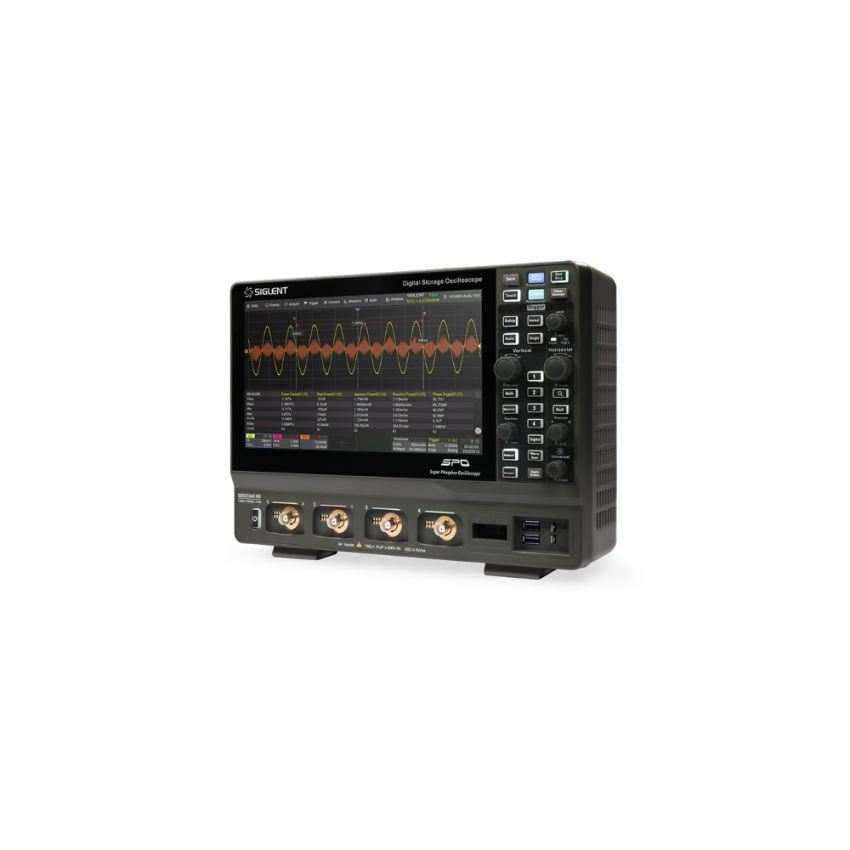

SDS3104X HD, 4CH 1 GHz Oscilloscope, 12-bit ADC, 4 GSa/s

The Siglent SDS3104X HD is a high-performance digital oscilloscope offering 1 GHz bandwidth across four analog channels. Equipped with a 12-bit ADC, it provides enhanced vertical resolution for capturing fine waveform details. The oscilloscope supports a maximum sample rate of 4 GSa/s and offers a memory depth of up to 400 Mpts per channel, facilitating long-duration signal analysis. Its advanced features include a 10.1-inch capacitive touch screen, waveform capture rates up to 890,000 wfm/s in Sequence mode, and low background noise of 125 µVrms at 1 GHz bandwidth.

Key Features

• Four analog input channels for versatile signal acquisition
• 1 GHz analog bandwidth for high-frequency signal capture
• 12-bit analog-to-digital conversion for improved vertical resolution
• Maximum sample rate of 4 GSa/s
• Memory depth up to 400 Mpts per channel
• 10.1-inch capacitive touch screen for intuitive operation
