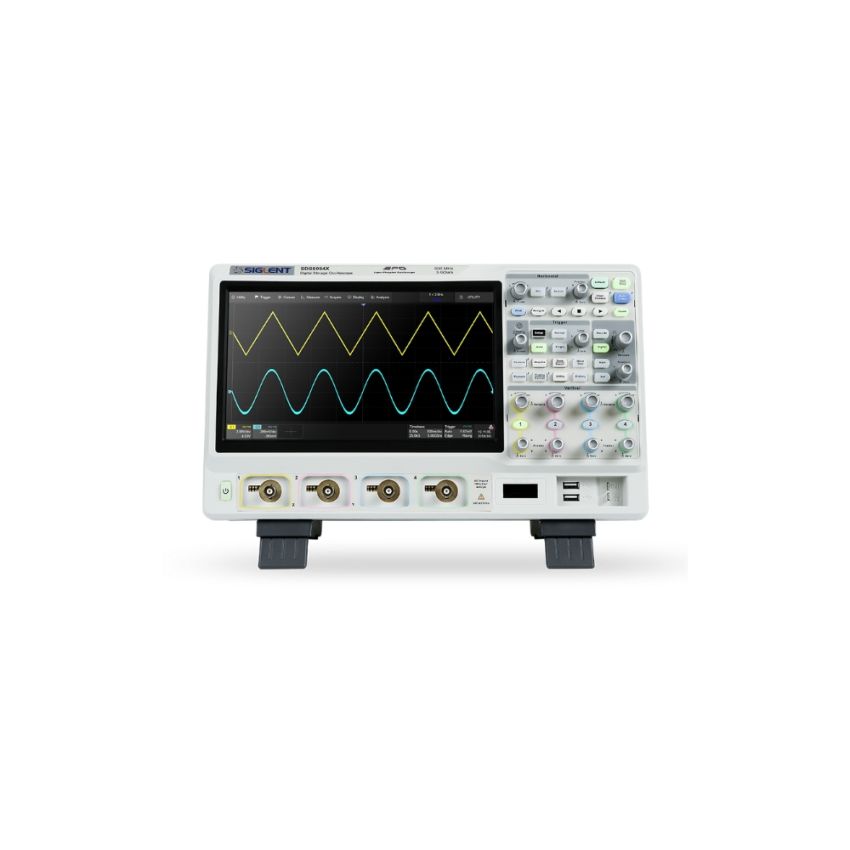

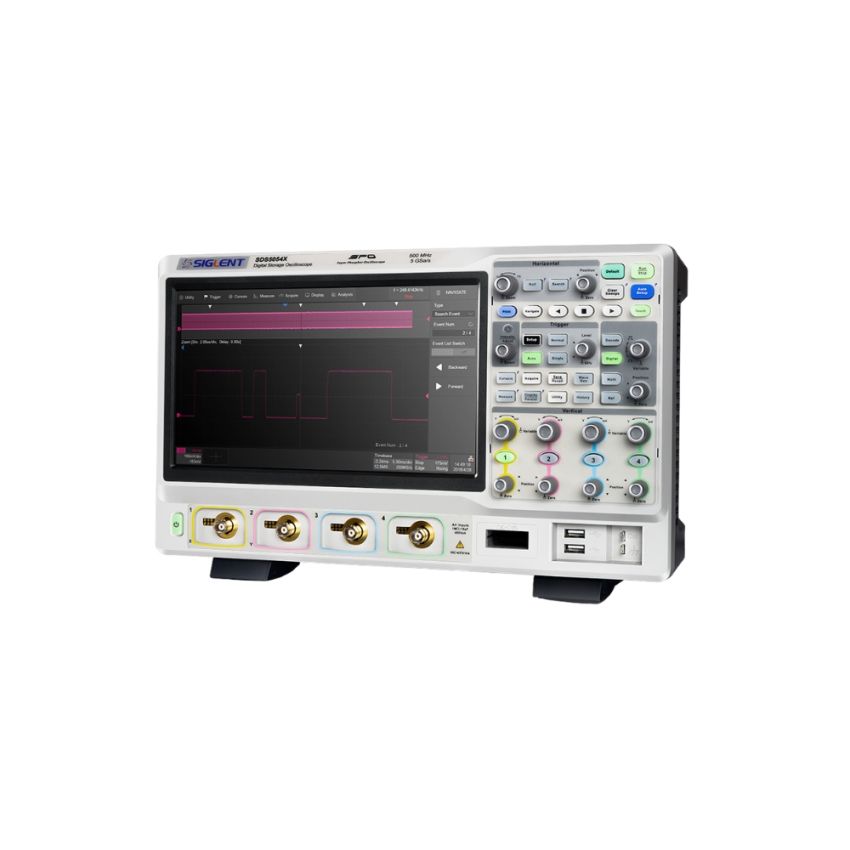

SDS5104X, 4-Channel Oscilloscope, 1 GHz Bandwidth, 5 GSa/s Sampling Rate, 250 Mpts Memory Depth

The Siglent SDS5104X is a high-performance 4-channel digital storage oscilloscope offering a 1 GHz bandwidth, 5 GSa/s maximum real-time sampling rate, and a 250 Mpts memory depth. It features Siglent's Super Phosphor Oscilloscope (SPO) technology, providing waveform capture rates up to 110,000 wfm/s in normal mode and 480,000 wfm/s in Sequence mode. The oscilloscope supports a 10.1-inch capacitive touchscreen display with a resolution of 1024×600 pixels, facilitating intuitive operation. Additional features include advanced triggering capabilities, serial bus decoding, and optional mixed-signal analysis with up to 16 digital channels.

Key Features:

• 1 GHz bandwidth with 5 GSa/s maximum real-time sampling rate
• 250 Mpts memory depth for detailed waveform capture
• Waveform capture rates up to 110,000 wfm/s in normal mode and 480,000 wfm/s in Sequence mode
• 10.1-inch capacitive touchscreen display with 1024×600 resolution
• Advanced triggering capabilities: edge, slope, pulse, window, runt, interval, dropout, pattern, qualified, and video
• Serial bus decoding support for I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, and MIL-STD-1553B
