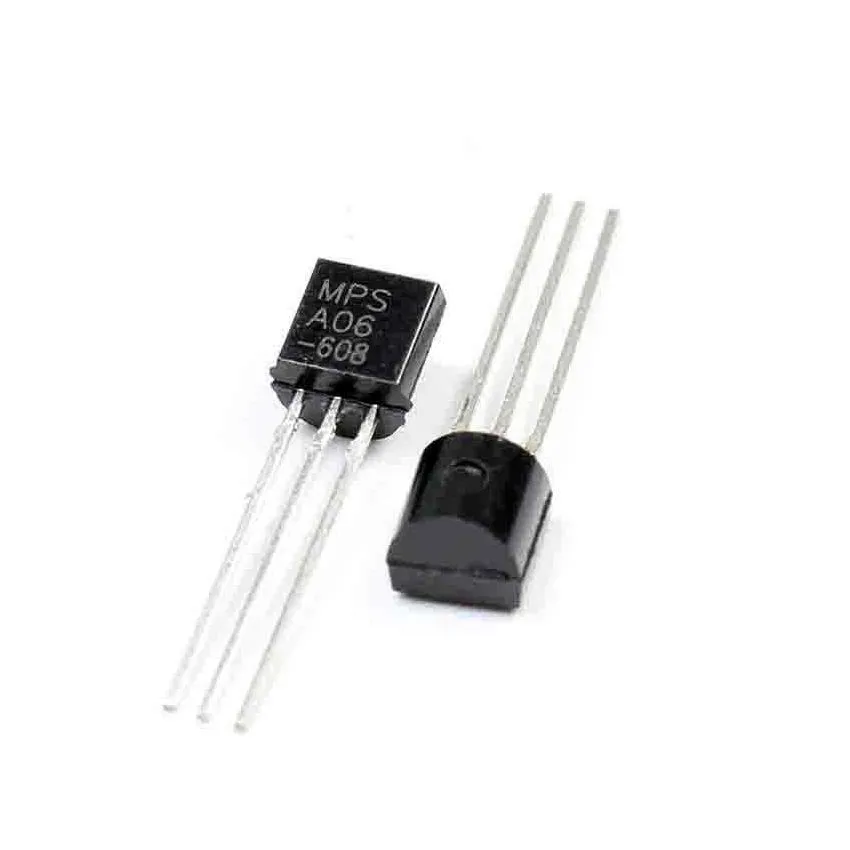

MPSA06, NPN General-Purpose Transistor, TO-92

The MPSA06 is a general-purpose silicon NPN transistor commonly used in switching and amplification circuits. With an 80V collector-emitter voltage and a current capability of 500 mA, it is ideal for signal-level applications where moderate voltage and current handling are needed. This transistor is especially popular in audio stages, control circuitry, and analog switching.

Key Features:

• High Collector-Emitter Voltage: Rated for 80 V, suitable for medium-voltage switching applications.
• Moderate Current Handling: Supports up to 500 mA continuous collector current.
• Fast Switching Performance: Transition frequency (f_T) up to 100 MHz.
• Compact and Reliable TO-92 Package: Ideal for general-purpose signal amplification and low-power switching.
• Low Saturation Voltage: V_CE(sat) = 0.25 V at I_C = 100 mA.
• High DC Gain: h_FE ≥ 100 at 100 mA.

Additional Specifications:

• Type: NPN
• Max Voltage: 80V
• Max Current: 500Ma
