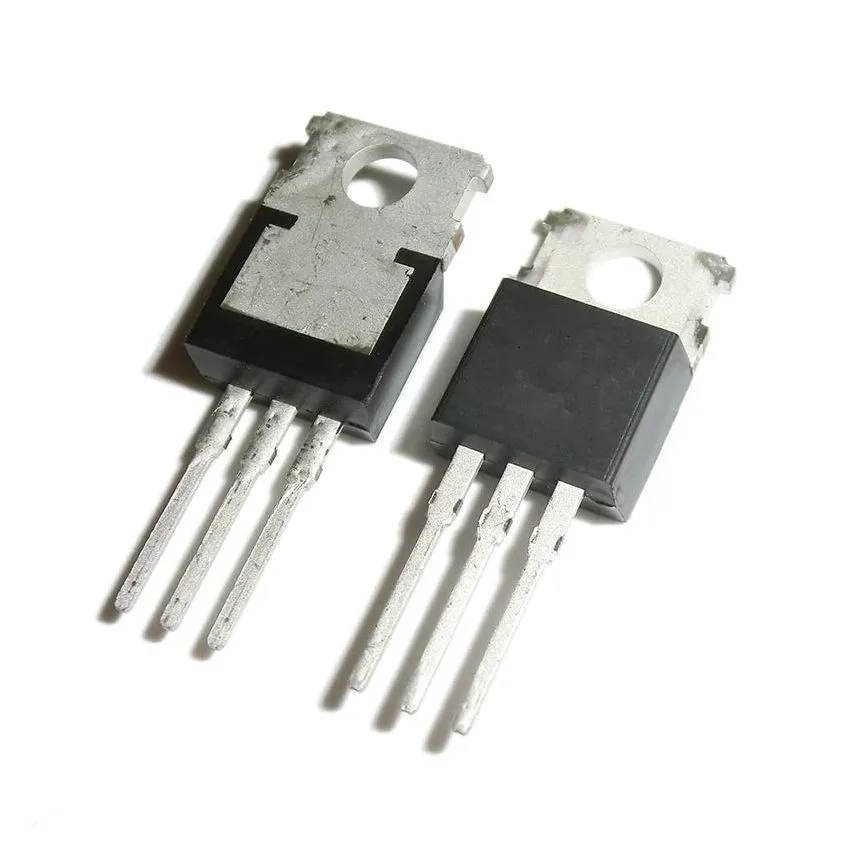

NCE82H140, N-Channel Power MOSFET, TO-220-3

The NCE82H140 is a trench technology N-channel enhancement-mode MOSFET optimized for low on-resistance and fast switching speed. Designed for applications such as uninterruptible power supplies, high-efficiency DC/DC converters, and high-frequency switching, this device also features excellent avalanche energy handling and electrostatic discharge (ESD) protection.

Key Features:

• Ultra-Low R_DS(on): Typically 4.3 mΩ, max 6.0 mΩ, minimizing conduction losses.
• High Current Capability: Supports continuous drain current up to 140 A.
• Moderate Voltage Rating: Withstands 82 V drain-source breakdown voltage.
• Fast Switching: Turn-on delay as low as 23 ns, turn-off time 75 ns.
• Rugged Avalanche Capability: Avalanche energy rating of 1200 mJ.
• High-Speed, High-Efficiency Design: Ideal for UPS, motor drives, and power switching applications.

Additional Specifications:

• Mounting Style: Through Hole
• Continuous Current Drain (Id): 140A At 25°C
• Drain-Source Breakdown Voltage (Vds): 82V
• Gate-Source Threshld Voltage (Vgs th): 2-4V
• Power Dissipation: 220W
• Operating Temprature: -55+175°C
