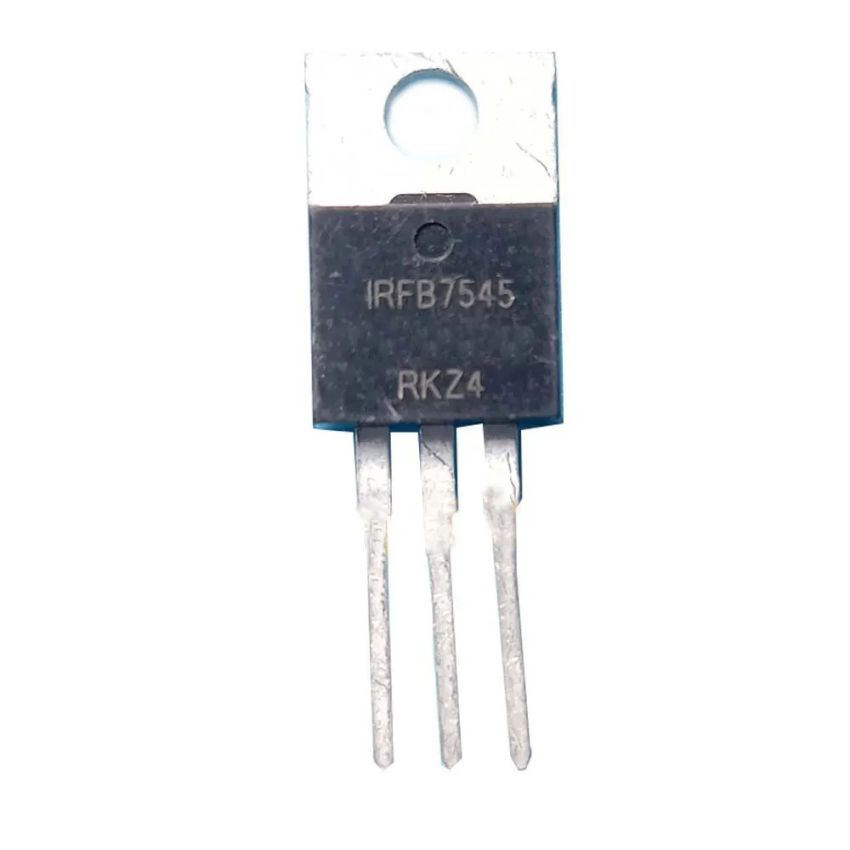

IRFB7545,N-Channel MOSFET,60V 95A,TO-220

The IRFB7545 is a high-performance N-Channel MOSFET designed for high-current, low-voltage switching applications. With a drain-source voltage rating of 60V and a continuous drain current of 95A, it is ideal for power applications such as motor control, DC-DC converters, and high-efficiency power switches. The low on-resistance of 5.9mOhm ensures reduced conduction losses and improved system efficiency.

Housed in a TO-220 package, the IRFB7545 offers excellent thermal performance and is fully avalanche rated for robustness and reliability. This makes it an excellent choice for applications requiring fast, high-current switching with minimal power loss. The device can operate over a wide temperature range from -55C to +175C, ensuring durability and reliable performance in industrial and commercial environments.

• High Current Capacity: Supports up to 95A continuous drain current at 25C, ideal for high-power applications.
• High Voltage Rating: Drain-source breakdown voltage of 60V ensures suitability for high-power switching.
• Low On-Resistance: RDS(on) as low as 5.9mOhm for improved efficiency and reduced conduction losses.
• Thermally Efficient TO-220 Package: Provides excellent heat dissipation, making it suitable for demanding applications.
• Avalanche Rated: 100% avalanche tested, ensuring reliable operation in extreme conditions.
• Wide Application: Suitable for motor drives, DC-DC converters, power switches, and solenoid drives.
