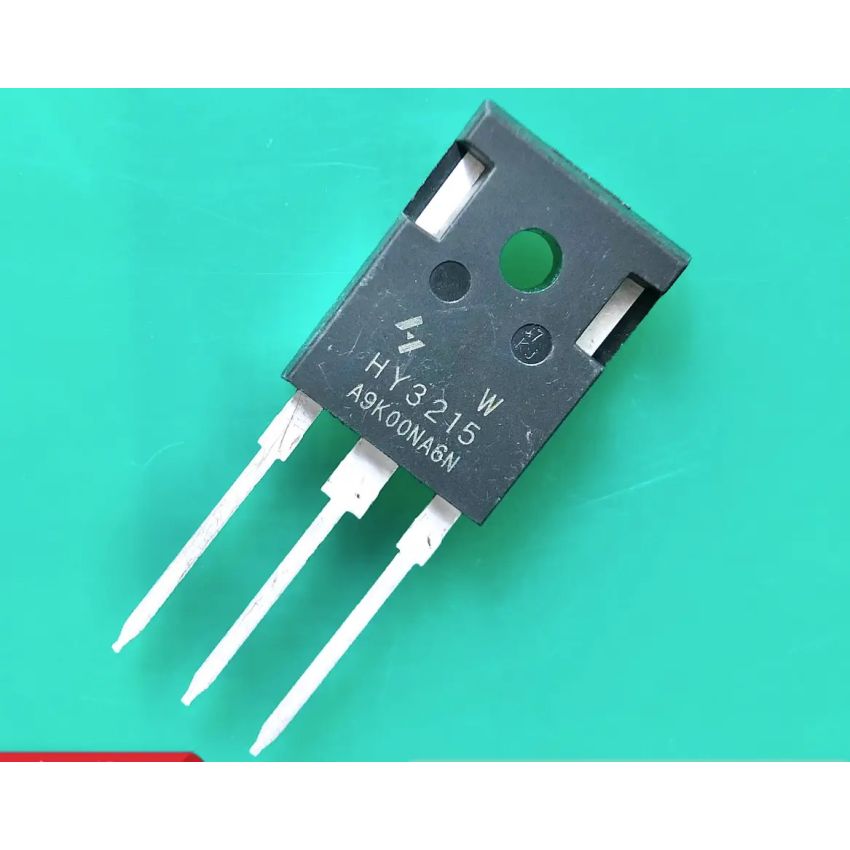

HY3215W,N-Channel MOSFET,150V,130A,TO-247-3

The HY3215W is a high-performance N-Channel MOSFET, ideal for use in power management and motor control applications. With a voltage rating of 150V and a continuous drain current of 130A, it is designed to manage high power with minimal losses. The low RDS(ON) of 11.5mOhm ensures efficient operation, while the TO-247 package provides easy installation and superior heat dissipation. This MOSFET is 100% avalanche tested, ensuring reliability in demanding environments. It is also RoHS compliant and halogen-free, meeting today's environmental standards.Key Features :

• High Power Capability: Rated at 150V and 130A for high power applications such as motor drives and electric power steering systems.
• Low RDS(ON): Features a typical RDS(ON) of 11.5mOhm, ensuring minimal power loss during operation.
• Rugged and Reliable: 100% avalanche tested for performance in challenging environments.
• TO-247 Package: Easy to install with a widely-used TO-247 package, ideal for large-scale heat dissipation.
• Green and Halogen-Free: RoHS compliant and designed to meet environmental standards for lead-free components.
• High Surge Current Capability: Can handle up to 510A of pulsed drain current for demanding applications.
