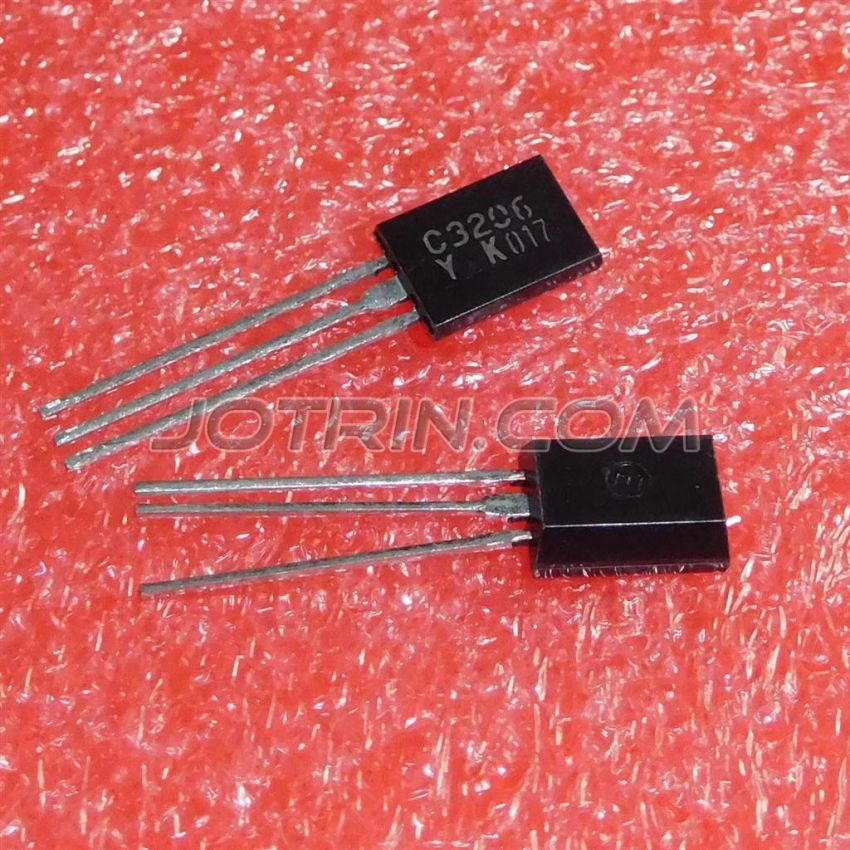

2SC3206 ,Silicon NPN Transistor - TO-92MOD Package, 150V, 50mA

The 2SC3206 is a high-performance silicon NPN transistor, engineered using a triple-diffused process (PCT), designed for applications demanding high voltage, high frequency, and reliable switching performance. With a collector-emitter voltage rating of 150V and a continuous collector current of 50mA, this transistor is ideal for black-and-white TV video output circuits, driver stages in audio amplifiers, and high-voltage switching circuits. Its low collector output capacitance (Cob) of 5.0 pF (max) ensures superior high-frequency performance, while the high transition frequency of 120MHz (typical) supports efficient signal amplification in demanding electronic designs.

Key Features :

• High collector-emitter voltage of 150V.
• High transition frequency of 120MHz (typical).
• Low collector output capacitance (Cob): 5.0 pF (max).
• Compact TO-92MOD package for efficient PCB integration.
• Suitable for black-and-white TV video output and driver stage applications.
• Designed for high-voltage and high-frequency switching applications.
