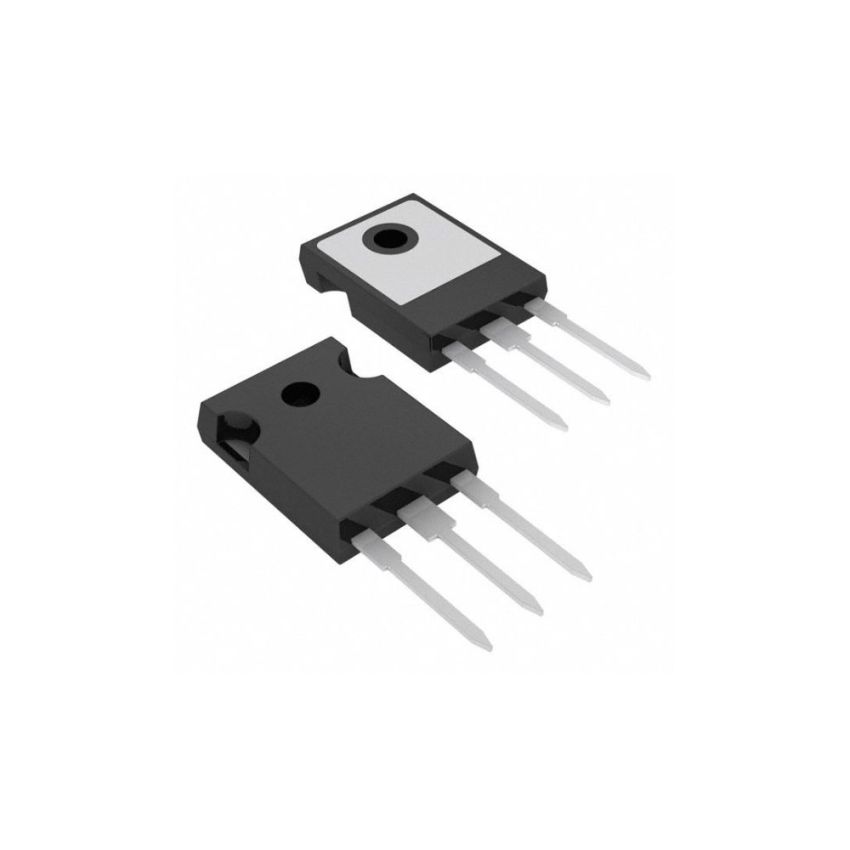

30CPF04, Fast Soft Recovery Rectifier Diode, TO-247AC Package

The 30CPF04 is a fast soft recovery rectifier diode designed for high-power applications requiring efficient and reliable performance. With a peak reverse voltage of 400V and a forward average current of 30A, it is suitable for use in output rectification and freewheeling in inverters, choppers, and converters. The device features a low forward voltage drop, fast soft recovery characteristics, and a glass passivated junction for enhanced reliability. The TO-247AC package provides efficient thermal management and ease of integration into various designs.

• High Forward Current: Capable of delivering a forward average current of 30A, suitable for high-power applications.
• Fast Soft Recovery: Optimized for a short reverse recovery time of 160 ns, reducing switching losses and electromagnetic interference (EMI).
• Low Forward Voltage Drop: Features a forward voltage of 1.41V at 30A, ensuring efficient operation with minimal power loss.
• High Surge Current Capability: Handles non-repetitive surge currents up to 350A, providing robustness against transient conditions.
• Glass Passivated Junction: Enhances device reliability and performance stability over a wide temperature range.
• TO-247AC Package: Offers efficient heat dissipation and ease of mounting in various applications.
