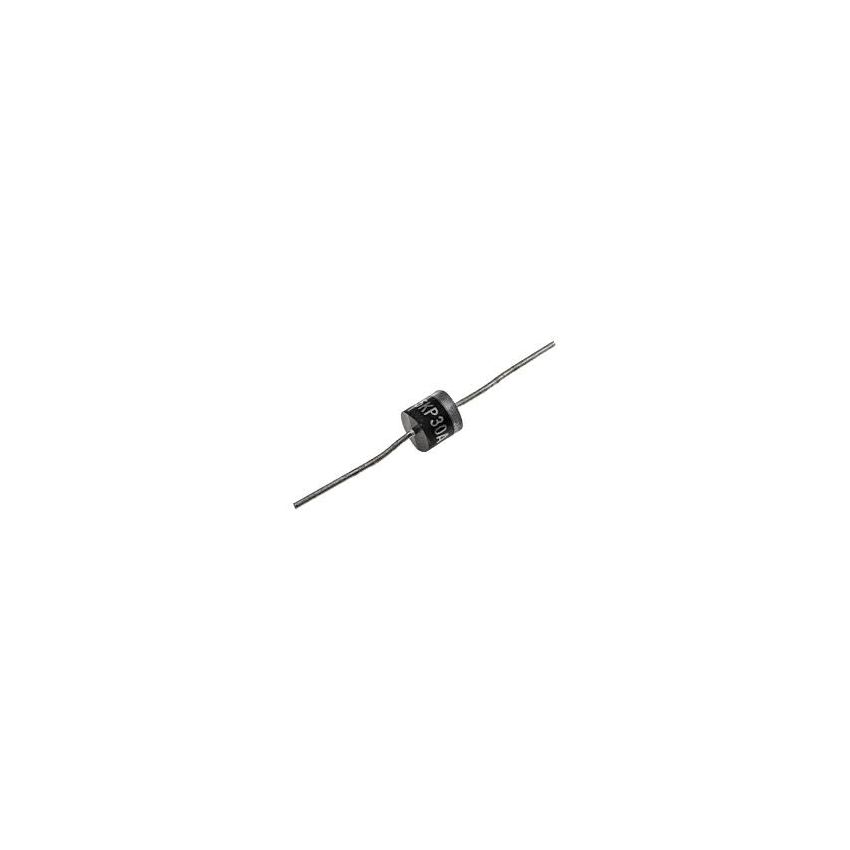

5KP30A, Unidirectional TVS Diode, P600

The 5KP30A is a high-power unidirectional TVS diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. With a standoff voltage of 30 V and a clamping voltage of 48.4 V, it effectively safeguards components in power supplies, industrial equipment, and communication systems. Its robust construction in a P600 package allows for efficient heat dissipation and high surge current handling.​

Key Features:

• High Surge Capability: Handles up to 5000W peak pulse power (10/1000 µs waveform).​
• Fast Response Time: Typically less than 1 picosecond from 0V to breakdown.​
• Excellent Clamping Performance: Clamps voltage at 48.4 V during transients.​
• Glass Passivated Junction: Ensures long-term reliability and stability.​
• Low Leakage Current: Reverse leakage current of ≤ 5 µA at 30 V.​
• Wide Operating Temperature Range: Operates from –55°C to +175°C.​

Additional Specifications:

• Mounting Style: Through-Hole
• Maximum Peak Reverse Voltage (VRRM): 30V
• Forward Average Current (If): N/A
• Forward Voltage (Vf): 3.5V At 100A
• Maximum Surge Current: 105.4A
• Reverse Current (Ir): <=25 nA At 30V
• Operating Temperature Range: -55+175°C
• Dimensions: 8.6x25.4x1.2Mm
