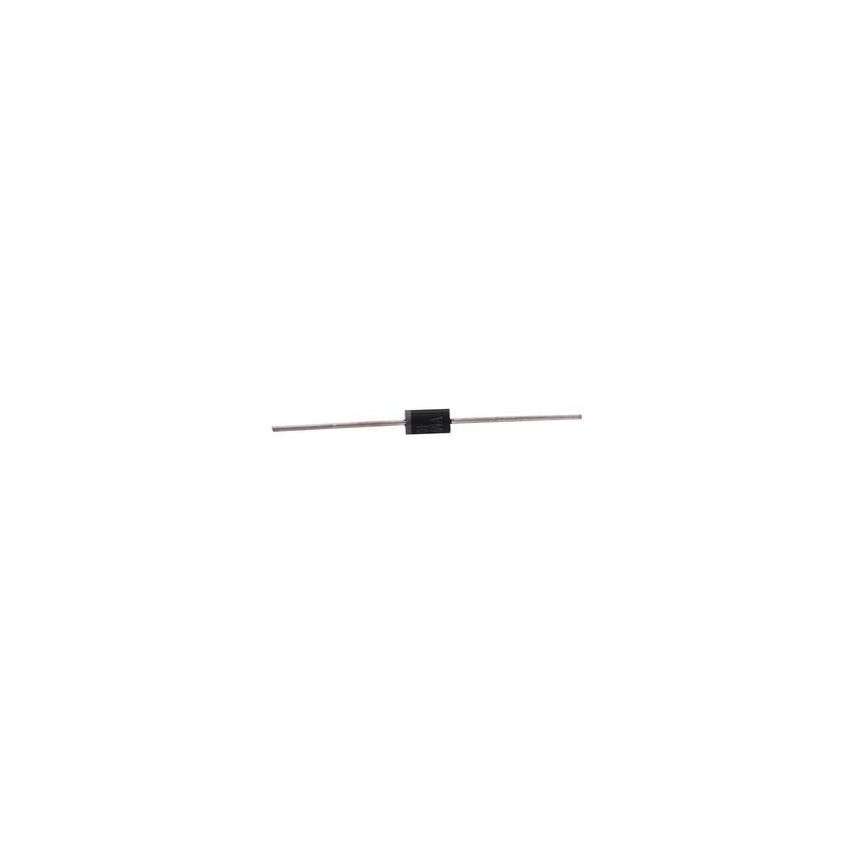

1.5KE400CA, 1500W Bidirectional TVS Diode, DO-201

The 1.5KE400CA is a transient voltage suppression diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. With a standoff voltage of 342V, it clamps voltage surges up to 548V, ensuring the safety of downstream components. Its bidirectional nature makes it suitable for AC circuits and applications where both positive and negative transients are a concern. The DO-201 package facilitates through-hole mounting, providing mechanical stability and ease of integration into various designs.​

Key Features:

• High Peak Pulse Power: Capable of dissipating 1500W at a 10/1000μs waveform, providing robust protection against voltage transients.​
• Bidirectional Protection: Safeguards circuits from both positive and negative voltage spikes.​
• Fast Response Time: Typically reacts in less than 1 picosecond, ensuring immediate protection.​
• Glass Passivated Junction: Enhances reliability and performance stability over time.​
• Low Leakage Current: Exhibits minimal reverse leakage, maintaining circuit integrity during normal operation.​
• Excellent Clamping Capability: Limits voltage overshoot, protecting sensitive components effectively.​

Additional Specifications:

• Mounting Style: Through Hole
• Maximum Peak Reverse Voltage (VRRM): 342V
• Forward Average Current (If): N/A
• Forward Voltage (Vf): 3.5V
• Maximum Surge Current: 2.8A
• Reverse Current (Ir): ≤1μA At 342V
• Operating Temperature Range: -55+175°C
• Dimensions: 9.5x5.3Mm
