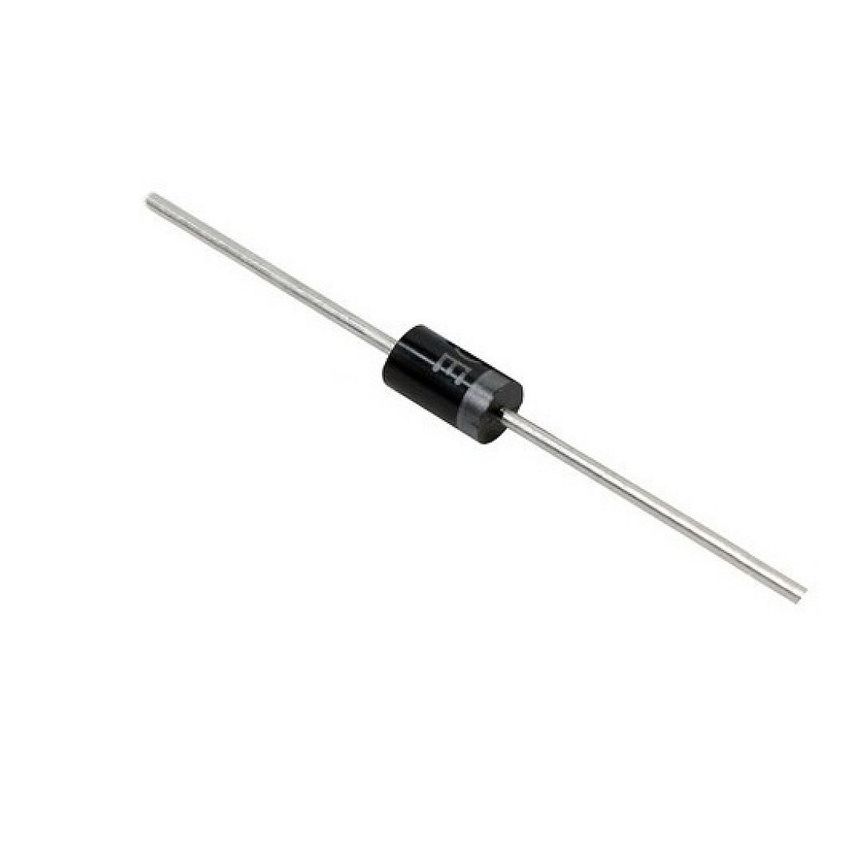

1N4007, 1A 1000V General-Purpose Rectifier Diode, DO-41

The 1N4007 is a widely used general-purpose silicon rectifier diode designed for low-frequency rectification applications. It is commonly employed in power supplies, battery chargers, and other applications requiring efficient and reliable rectification. Its high voltage rating and surge current capability make it a versatile component in various electronic circuits.​

Key Features:

• High Voltage Rating: Capable of withstanding up to 1000V peak reverse voltage, suitable for high-voltage applications.​
• Standard Current Handling: Supports an average forward current of 1A, ideal for general-purpose rectification.​
• High Surge Capability: Can handle surge currents up to 30A, enhancing durability under transient conditions.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.1V at 1A, minimizing power loss.​
• Reliable Construction: Molded plastic case with UL 94V-0 flammability rating, ensuring safety and durability.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -55°C to +175°C.​

Additional Specifications:

• Type: General-Purpose Rectifier Diode​
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 1A
• Forward Voltage (Vf): 1.1V At 1A
• Maximum Surge Current: 30A
• Reverse Current (Ir): 5μA At 25°C
• Dimensions: DO-41 Package Dimensions​
