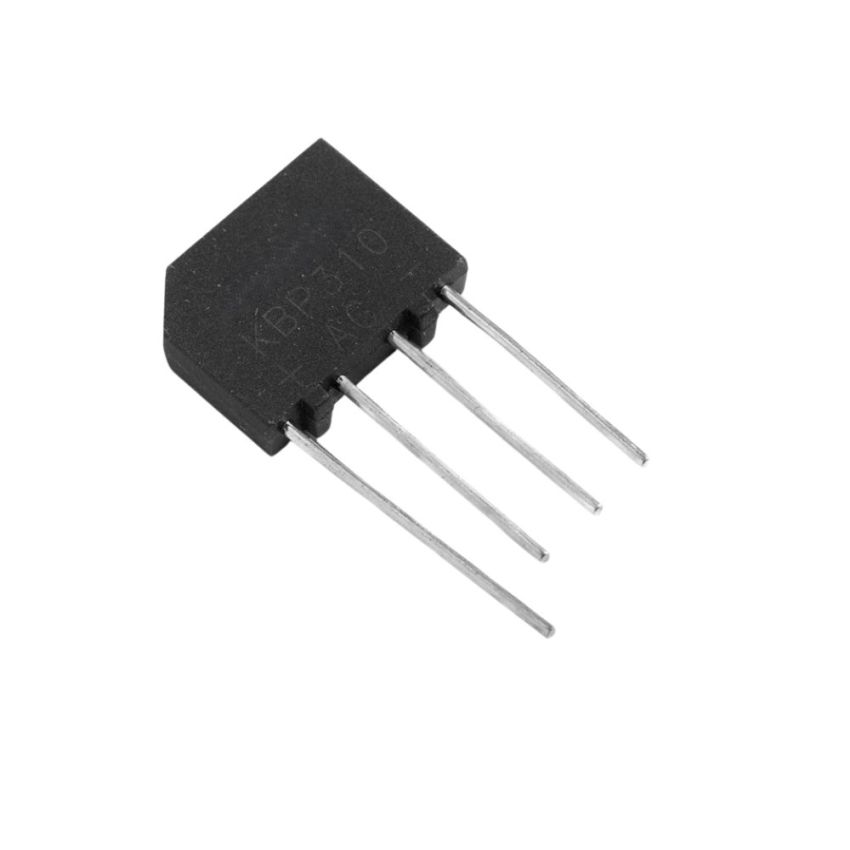

KBP310,Bridge Rectifier,3A 1000V,High Surge Current 80A,4-Pin

The KBP310 Bridge Rectifier is a highly efficient 3A rectifier designed for converting AC to DC in power supply circuits. Its 1000V peak reverse voltage (VRRM) and 3A average forward current (IF(AV)) ratings make it suitable for a wide range of applications, including power adapters, battery chargers, and motor controllers.

With a low forward voltage drop of 1.1V, the KBP310 ensures minimal power loss and high efficiency. The rectifier's compact 4-pin package allows for easy integration into PCB-mounted designs, while its ability to handle a peak surge current of 80A ensures protection during transient conditions.

Constructed from high-quality materials, including a molded plastic case with a UL94V-0 flammability rating, the KBP310 is designed to operate in temperatures ranging from -55°C to +125°C. Whether used in industrial control systems or consumer electronics, the KBP310 delivers reliable and durable performance.

• High Voltage and Current Handling: Rated for 1000V peak reverse voltage and 3A average forward current, making it ideal for demanding applications.
• Compact 4-Pin Package: Optimized for PCB mounting, saving space in circuit designs.
• Robust Surge Current Capability: Handles up to 80A peak surge current for reliable protection against transient conditions.
• Low Forward Voltage Drop: Ensures efficient operation with a 1.1V forward voltage per element at 1A.
• Durable Construction: Molded plastic case with UL94V-0 flammability rating for enhanced safety and durability.
• Wide Operating Temperature Range: Operates reliably between -55°C to +125°C, suitable for industrial and consumer electronics.
