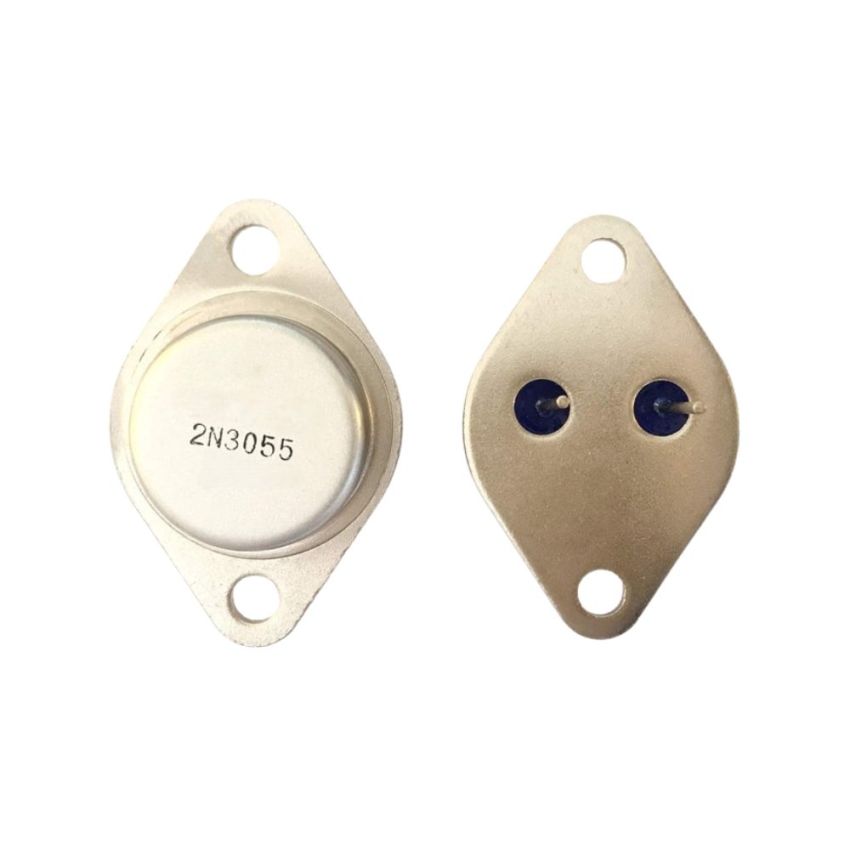

2N3055, NPN Power Transistor, TO-3 Package

The 2N3055 is a silicon NPN power transistor housed in a TO-3 package. It is designed for general-purpose switching and amplifier applications. Its high collector current and power dissipation capabilities make it suitable for various high-power applications, including audio amplifiers, power supplies, and motor control circuits. The device's low saturation voltage and excellent safe operating area enhance its performance in demanding environments.

• High Collector Current: Capable of handling up to 15A continuous collector current, suitable for high-power applications.
• High Power Dissipation: Dissipates up to 115W, ensuring efficient thermal management.
• Low Collector-Emitter Saturation Voltage: Ensures efficient operation with V_CE(sat) = 1.1V (Max) at I_C = 4A.
• Complementary PNP Transistor Available: Designed to work with the MJ2955 PNP transistor for push-pull amplifier configurations.
• Excellent Safe Operating Area: Provides reliable performance across various operating conditions.
• TO-3 Package: Offers robust mechanical stability and efficient heat dissipation.
