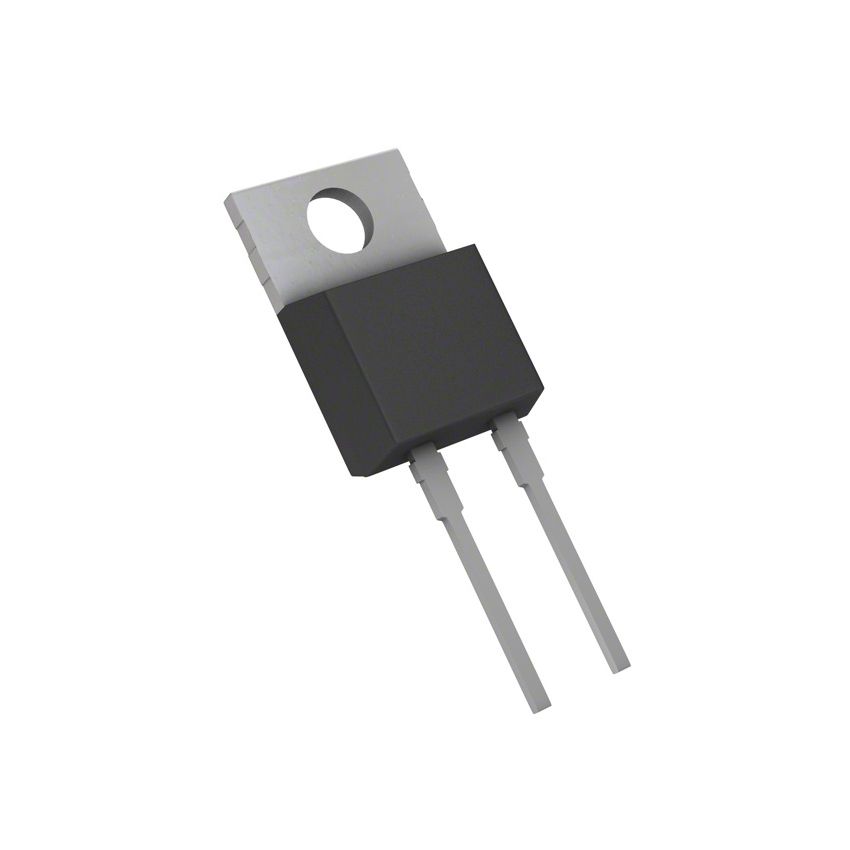

RHRP15120 ,UltraFast Diode, 15A 1200V – TO-220-2 Package
AED 7.00
In stock
Guarantee safe & secure checkout
The RHRP15120 is an UltraFast™ soft recovery diode with a high voltage rating of 1200V and a forward current capacity of 15A, making it suitable for high-performance power conversion applications. Designed using Fairchild’s advanced planar stripe and lifetime control technologies, it delivers low reverse recovery time and reduced EMI/RFI. This diode is ideal for use in freewheeling, clamping, and snubber applications in switch-mode power supplies and motor drives.
Key Features:
- High Voltage Rating: Withstands reverse voltage up to 1200V, ideal for high-voltage circuit
- Fast Recovery Time: Reverse recovery time as low as 75ns for efficient switching.
- High Forward Current: Supports continuous forward current up to 15A.
- Soft Recovery Characteristics: Reduces electromagnetic interference and switching losses.
- Low Reverse Leakage Current: Minimizes power loss in reverse bias operation.
- TO-220-2 Package: Standard through-hole mounting for ease of heat dissipation and integration.
| Operating Temperature | -65+175C |
|---|---|
| Mounting Style | Through Hole |
