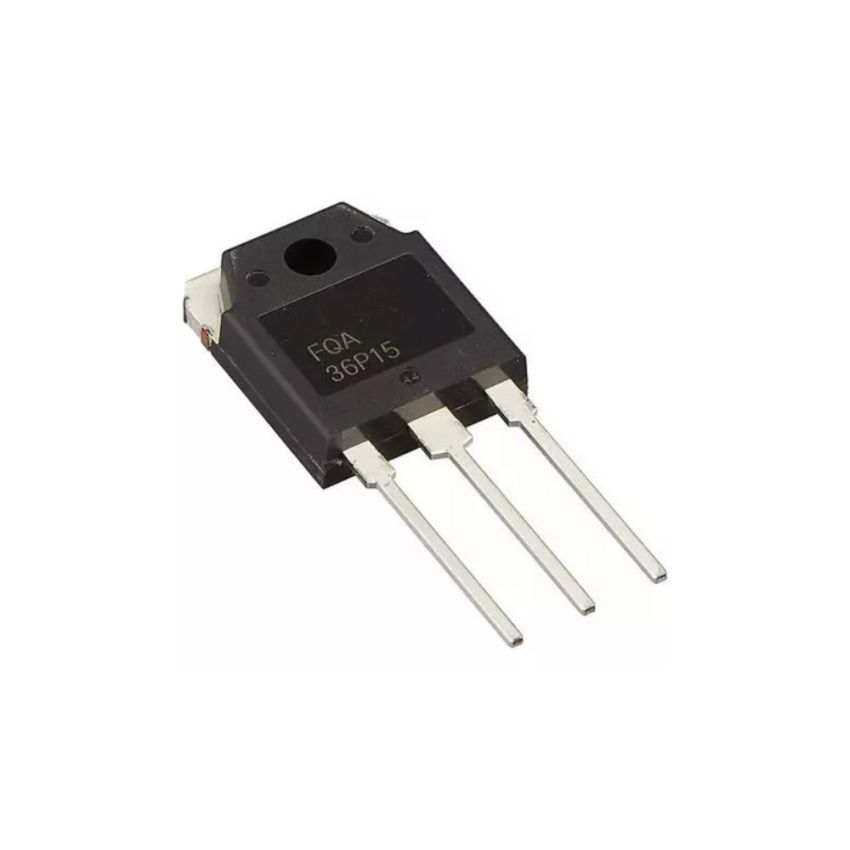

FQA36P15, P-Channel MOSFET, TO-3PN Package

The FQA36P15 is a P-channel enhancement mode power MOSFET produced using Fairchild's proprietary planar stripe, DMOS technology. This advanced technology results in a transistor with low on-resistance, fast switching speed, and superior avalanche characteristics. The FQA36P15 is suitable for high current, high-speed switching applications such as switch mode power supplies (SMPS), DC-AC converters for welding equipment, uninterruptible power supplies, and motor drives.

• High Voltage Capability: Withstands a drain-source voltage (V_DS) of up to 150V, suitable for high-voltage applications.
• High Current Handling: Supports a continuous drain current (I_D) of 36A, accommodating substantial power loads.
• Low On-Resistance: Features a maximum R_DS(on) of 0.09Ω, reducing conduction losses.
• Fast Switching Performance: Designed for rapid switching operations, enhancing efficiency in high-frequency applications.
• Robust Power Dissipation: Capable of dissipating up to 294W, ensuring efficient thermal management.
• TO-3PN Package: Provides excellent heat dissipation and mechanical stability.
