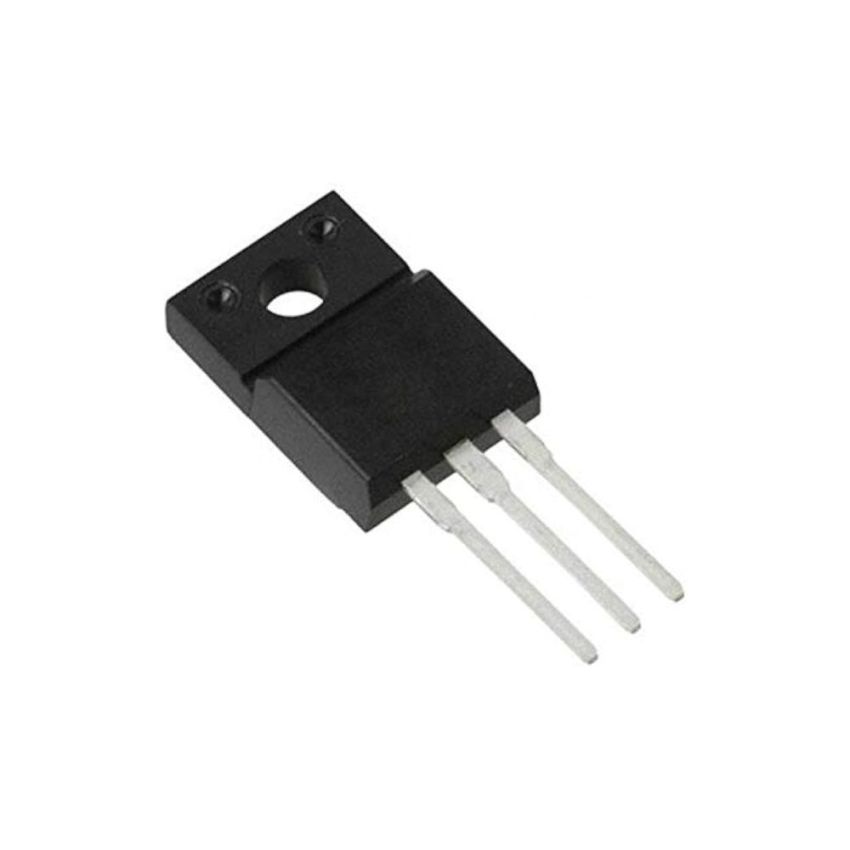

2SK2543, N-Channel MOSFET, TO-220 Package
AEDÂ 9.00
Only 4 left
Guarantee safe & secure checkout
The 2SK2543 is a silicon N-channel MOSFET housed in a TO-220 package. It is designed for high-speed, high-voltage switching applications, particularly in switching regulators. The device's low on-resistance, high forward transfer admittance, and high voltage tolerance make it suitable for various high-power applications.
Key Features:
- Low On-Resistance: Exhibits a typical drain-source on-resistance (RDS(on)) of 0.75 Ω, ensuring efficient current flow with minimal voltage drop.
- High Forward Transfer Admittance: Offers a typical |Yfs| of 7.0 S, facilitating effective amplification and switching performance.
- High Voltage Tolerance: Withstands a drain-source voltage (VDSS) up to 500V, suitable for high-voltage applications.
- High Current Capability: Supports a continuous drain current (ID) of 8A, accommodating substantial power loads.
- Fast Switching Speed: Designed for rapid switching applications, enhancing performance in high-speed circuits.
- TO-220 Package: Provides efficient heat dissipation and ease of mounting.
| Operating Temperature | -55+150°C |
|---|---|
| Mounting Style | Through Hole |
| Max Voltage | N/A |
