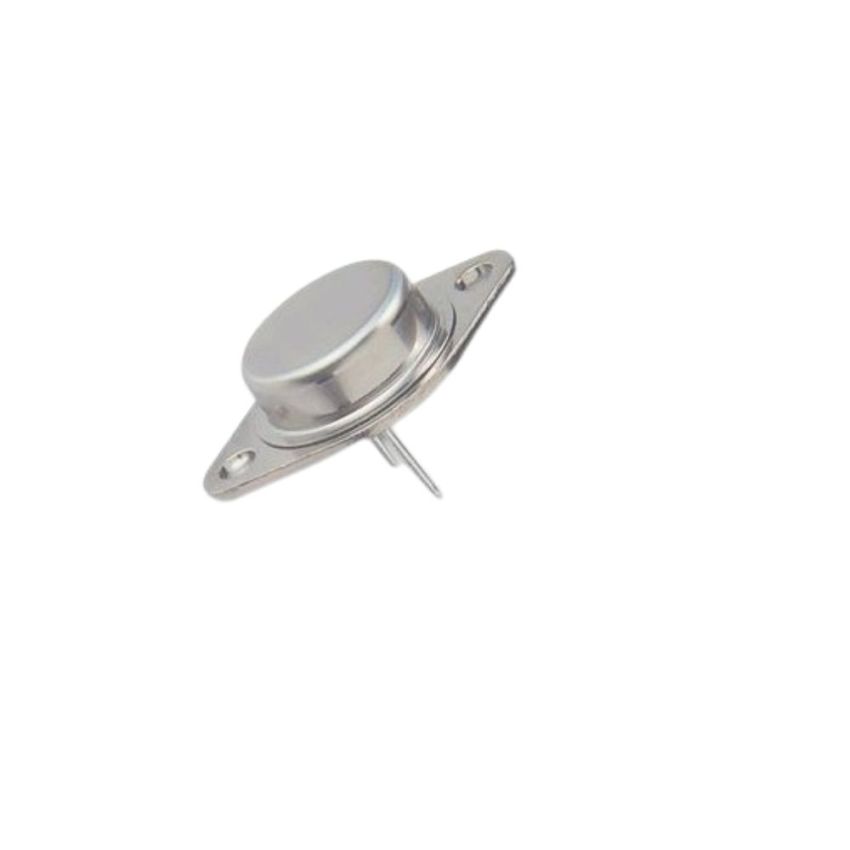

MJ15002, PNP Power Transistor, TO-204AA (TO-3) Package

The MJ15002 is a silicon PNP power transistor designed for high-power audio, disk head positioners, and other linear applications. Its high voltage and current capabilities make it suitable for use in various power amplification and switching applications. The TO-204AA (TO-3) package ensures efficient heat dissipation, enhancing the reliability of the device in demanding applications.

• High Voltage Capability: Collector-Emitter Voltage (V_CEO) rated at 140V, suitable for high-voltage applications.
• High Current Handling: Maximum DC Collector Current (I_C) of 15A, accommodating substantial power loads.
• Robust Power Dissipation: Capable of dissipating up to 200W, ensuring efficient thermal management.
• Low Saturation Voltage: Ensures efficient operation with minimal power loss.
• High DC Current Gain: Provides a gain (h_FE) range of 25 to 150, enhancing amplification capabilities.
• TO-204AA (TO-3) Package: Offers excellent heat dissipation and mechanical stability.
