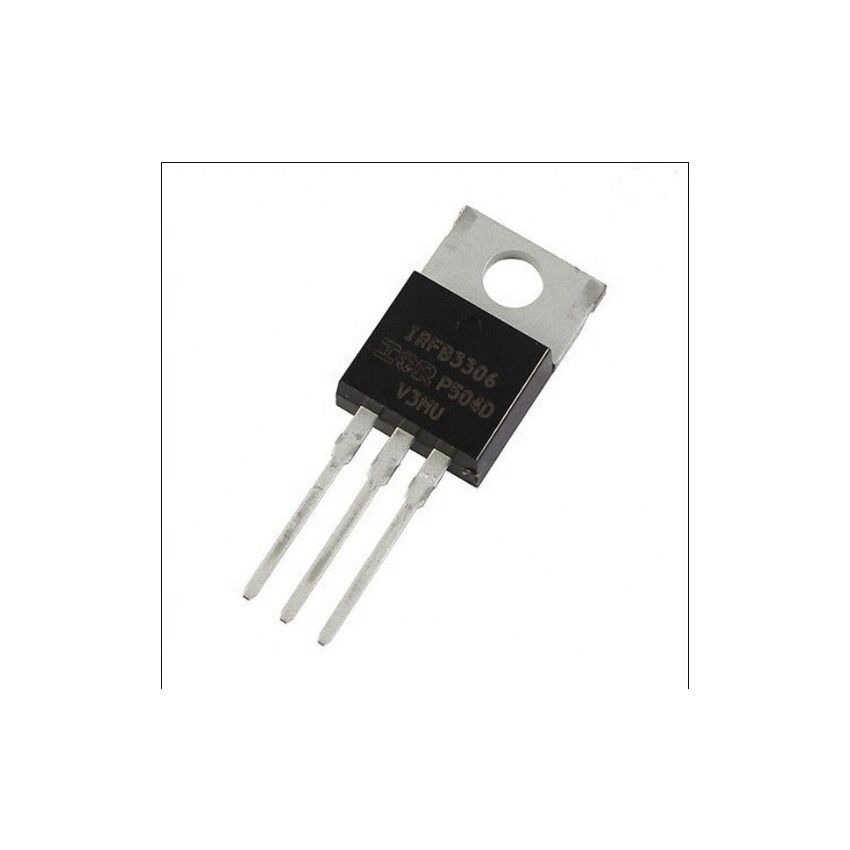

IRFB3306 ,N-Channel MOSFET, 60V, 110A, TO-220C Package

The IRFB3306 is an N-Channel MOSFET with a drain-source breakdown voltage of 60V and a maximum continuous drain current of 110A. Designed for high-efficiency synchronous rectification in switch-mode power supplies (SMPS), it offers low on-resistance (RDS(on)) of 4.2mOhm, ensuring minimal power losses and heat generation.

. With fast switching speed and 100% avalanche testing, the IRFB3306 is ideal for applications such as uninterruptible power supplies, high-speed power switching, and efficient energy conversion. Its robust design ensures reliable performance in various demanding power environments, making it suitable for industrial and automotive applications.

Key Features :

• High Current Capability: Supports continuous drain current of 110A, making it suitable for high-power applications.
• Low On-Resistance: RDS(on) of 4.2mOhm ensures minimal power loss and heat, enhancing efficiency.
• Enhanced Switching Speed: Fast switching characteristics for improved system performance.
• Robust Design: 100% avalanche tested, ensuring reliability in demanding applications.
• High Junction Temperature Tolerance: Can operate up to 175C, allowing for usage in high-temperature environments.
• Wide Application Range: Ideal for synchronous rectification, SMPS, uninterruptible power supplies, and high-speed switching circuits.
