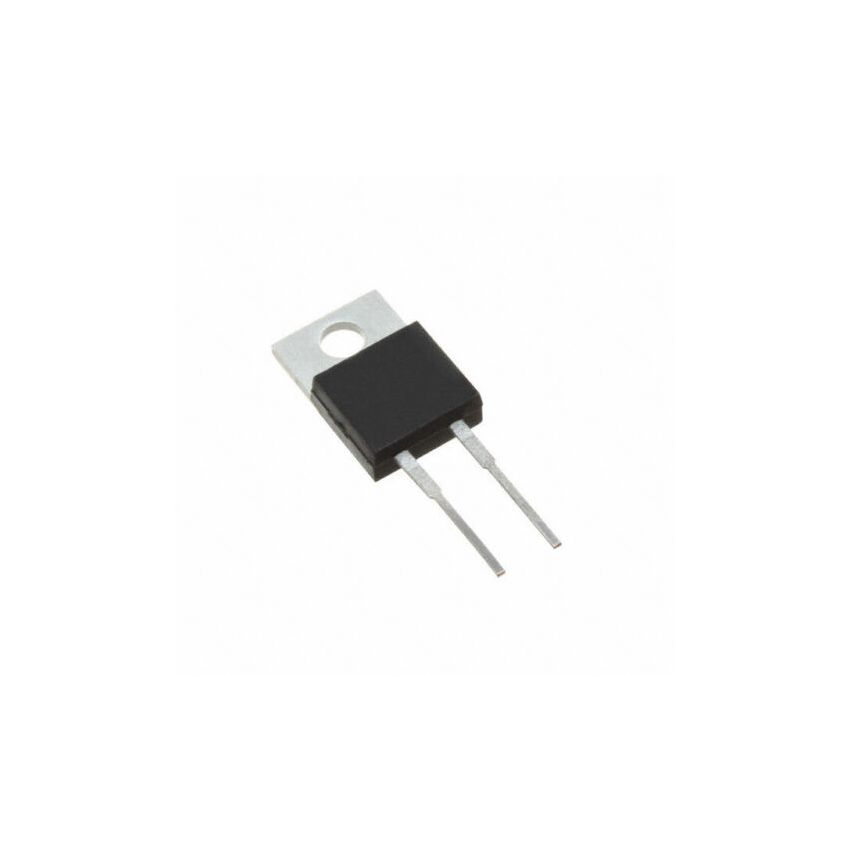

MUR820, Ultrafast Rectifier Diode, TO-220 Package

SKU
SCTx2967
Part Number
U820G
Brand:
In stock
Only 5 left

Guarantee safe & secure checkout

The MUR820 is an ultrafast rectifier diode designed for use in switching power supplies, inverters, and as free-wheeling diodes. With a peak reverse voltage of 200V and an average forward current of 8A, it is suitable for high-frequency applications. Its ultrafast recovery time of 25 nanoseconds minimizes switching losses, thereby improving overall system efficiency. The low forward voltage drop and leakage current further enhance its performance in demanding environments.


Key Features:
  • High Reverse Voltage – Withstands up to 200V peak reverse repetitive voltage (VRRM).
  • High Forward Current Capacity – Supports up to 8A average forward current (IF(AV)).
  • Ultrafast Recovery Time – Features a reverse recovery time (trr) of 25 nanoseconds, suitable for high-frequency applications.
  • Low Forward Voltage Drop – Exhibits a forward voltage drop (VF) of 0.975V at 25°C and 8A, enhancing efficiency.
  • Low Leakage Current – Maintains a reverse leakage current (IR) of 5 µA at 25°C and 200V, contributing to overall efficiency.
  • High Surge Current Capability – Withstands non-repetitive peak surge currents up to 100A, suitable for applications with transient high-current demands.
More Information
Mounting Style Through Hole
