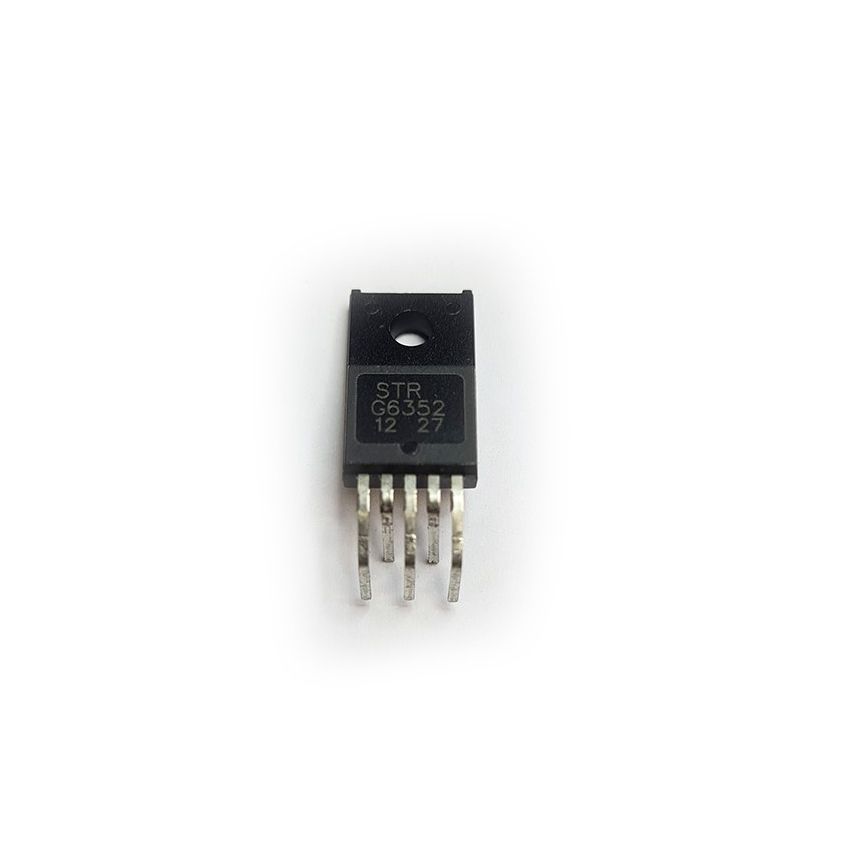

STRG6352, Integrated Power Management IC, ZIP-5

The STRG6352 is a highly integrated power switching regulator designed for use in off-line switch-mode power supplies, particularly in TVs, monitors, and other consumer electronics. Developed by Sanken Electric, it combines a power MOSFET and a controller in a single package, supporting quasi-resonant operation to reduce EMI and improve efficiency. The IC supports auto-restart or latch protection modes, adjustable switching speeds, and low-noise performance, making it a versatile and reliable solution for medium-power AC-DC conversion.

Key Features:

• Quasi-Resonant Switching: Enables high-efficiency operation in power supply systems.
• Low Standby Power Consumption: Features pulse-ratio control for energy savings in standby mode.
• Built-In Protections: Includes over-voltage, overload, and thermal shutdown protection with auto restart or latch.
• Soft Switching Operation: Regulated gate drive minimizes EMI and switching losses.
• Built-In Startup Circuit: Facilitates compact, efficient, and simplified power supply designs.
• Wide Input Voltage Support: Compatible with universal input ranges for offline power conversion.

Additional Specifications:

• Type: Quasi-Resonant PWM Controller With Integrated MOSFET
• Max Voltage: 85-265Vac
• Max Current: -3.5A
