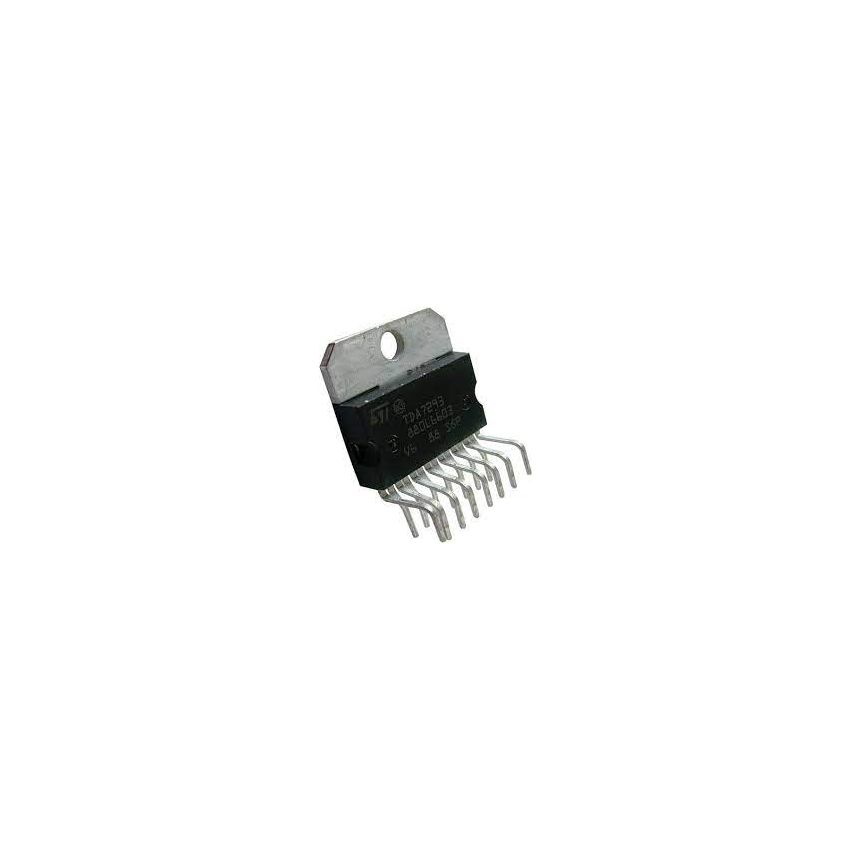

TDA7293V, DMOS Audio Amplifier, 100W, 50V

The TDA7293V is a high-power DMOS audio amplifier with integrated mute and standby functions, capable of delivering up to 100W output power at 50V operating voltage. It is designed for high-fidelity audio systems such as home stereo systems, powered loudspeakers, and top-class televisions.

With low distortion, low noise, and advanced protection mechanisms, this amplifier offers superior audio performance. It also includes short-circuit protection, thermal shutdown, and a clip detector, ensuring reliability and safety in demanding applications. The amplifier's modularity allows multiple devices to be connected in parallel to drive low-impedance loads, enhancing system flexibility.

Key Features :

• High Output Power: Delivers 100W into an 8Ω load with THD=10%.
• Wide Operating Voltage: 12V to 50V supply range.
• Low Noise and Distortion: High-quality audio performance with very low noise and distortion levels.
• Integrated Protection: Includes short-circuit protection, thermal shutdown, and clip detection.
• Mute and Standby Functions: Provides soft mute and standby to eliminate on/off switching noise.
• Modular Design: Allows for parallel operation to drive low-impedance loads.
