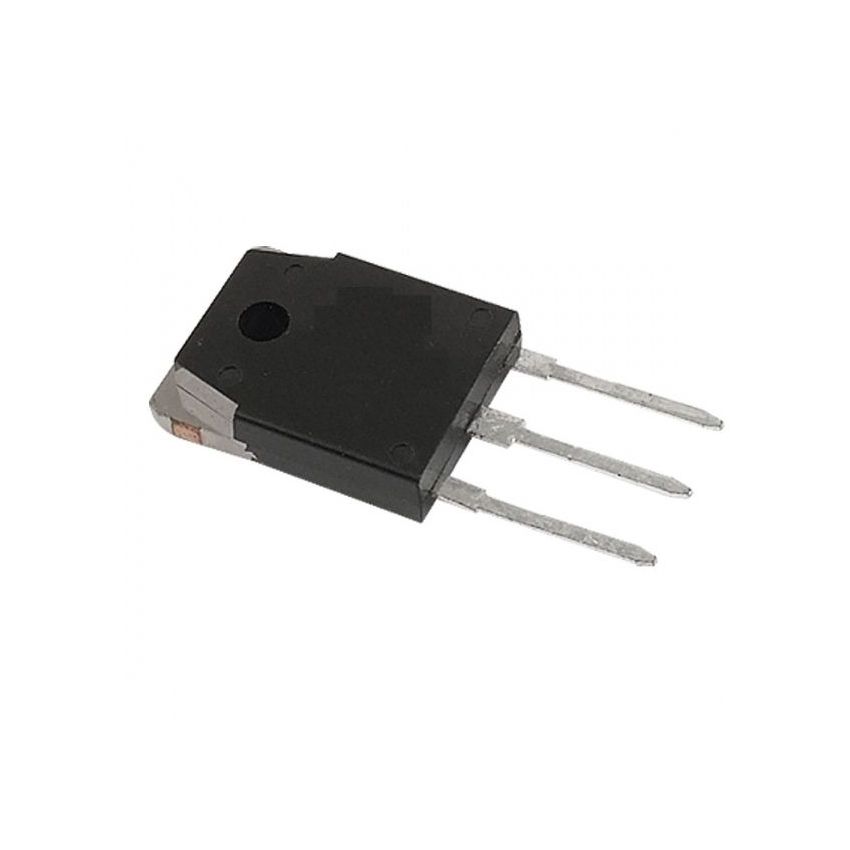

SFAD92-02, Ultrafast Soft Recovery Diode, TO-3PB

The SFAD92-02 is an ultrafast soft recovery diode designed for high-frequency rectification and freewheeling applications. Its fast recovery time and soft recovery characteristics make it ideal for use in switching power supplies, inverters, and other applications where efficiency and noise reduction are critical. The diode's low forward voltage drop and high surge current capability further enhance its suitability for demanding industrial applications.​

Key Features:

• Ultrafast Recovery Time: Ensures minimal switching losses and high efficiency.​
• Soft Recovery Characteristics: Reduces electromagnetic interference (EMI) and noise.​
• Low Forward Voltage Drop: Enhances conduction efficiency and reduces power dissipation.​
• High Surge Current Capability: Withstands high inrush currents, suitable for demanding applications.​
• Low Leakage Current: Minimizes energy loss during off-state.​
• High Reliability: Designed for long-term operation in industrial environments.​

Additional Specifications:

• Type: Ultrafast Soft Recovery Diode​
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 200V
• Forward Average Current (If): 20A
• Forward Voltage (Vf): 0.95V At 10A
• Maximum Surge Current: 150A
• Reverse Current (Ir): 10µA At 220V
• Dimensions: TO-3PB Standard Dimnesions
