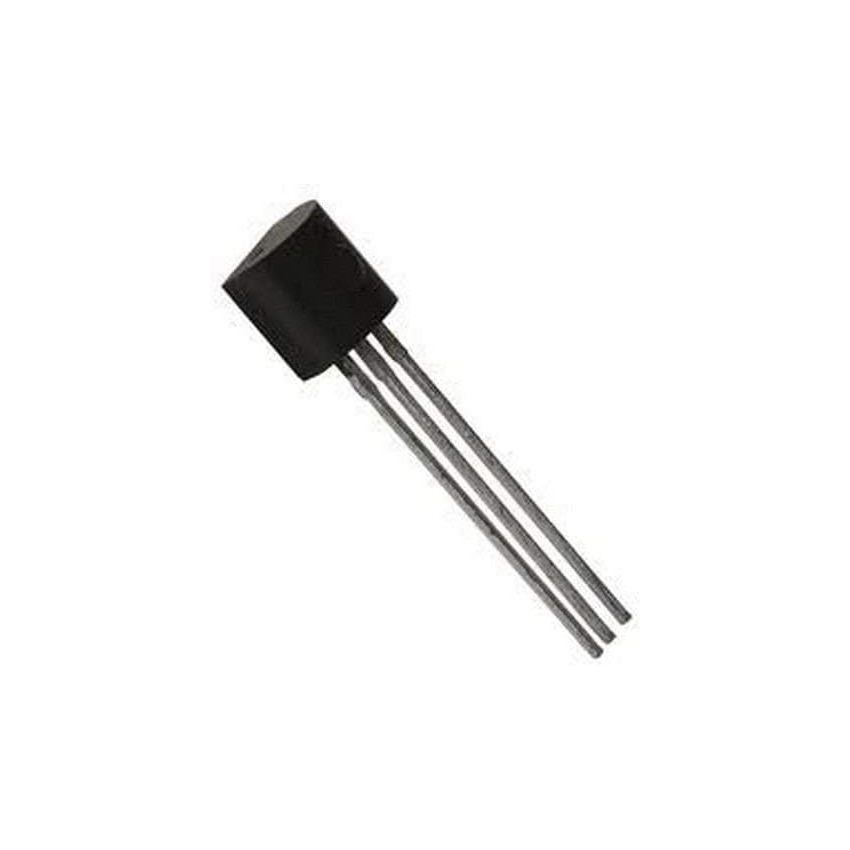

BC327, PNP Transistor, TO-92

The BC327 is a general-purpose PNP transistor commonly used in signal processing, amplifier stages, and switching applications. It offers high DC gain, low saturation voltage, and reliable thermal performance. Its compact TO-92 package makes it ideal for applications where space efficiency is critical.

Key Features:

• PNP silicon amplifier transistor ideal for switching and amplification.
• Collector-Emitter Voltage (VCEO): -45V.
• Collector Current (IC): -800mA continuous.
• Power Dissipation: Up to 625mW at 25°C ambient temperature.
• Wide Operating Temperature Range: -55°C to +150°C.
• Compact TO-92 package suitable for through-hole mounting.

Additional Specifications:

• Type: PNP
• Max Voltage: -45V
• Max Current: -800Ma
