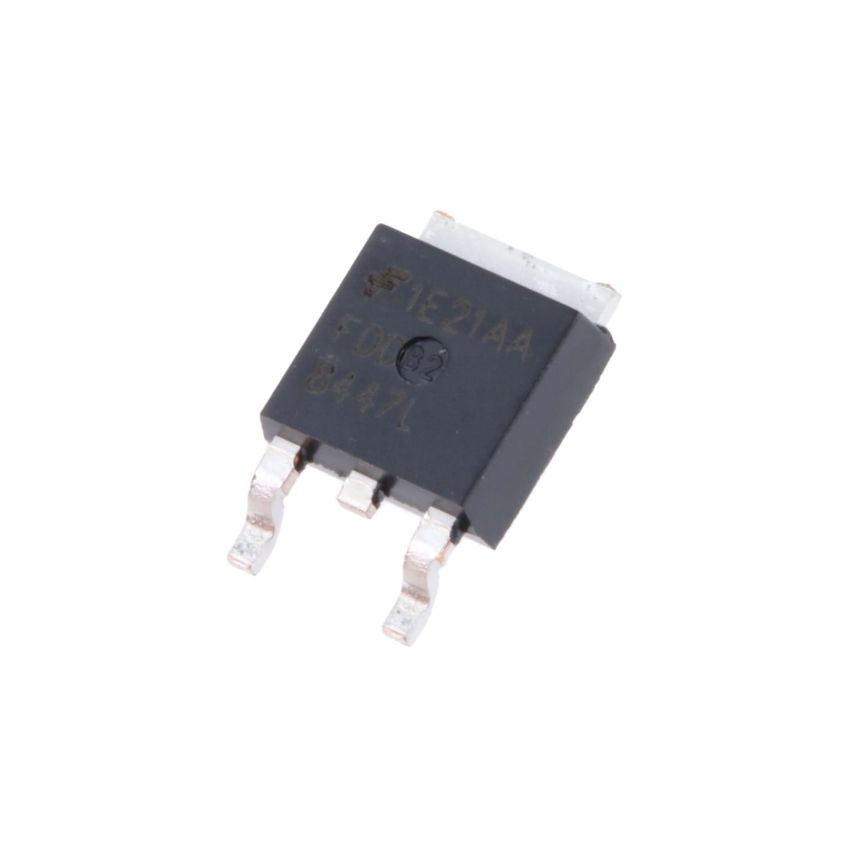

FDD8447L,Power MOSFET,TO-252-2 Package,40V,50A,8.5mOhm RDS(on)

FDD8447L,Power MOSFET,TO-252-2 Package,40V,50A,8.5mOhm RDS(on)

SKU
SCTx2839
Part Number
FDD8447L
Brand:
Fairchild Semiconductor
Categories:
Semiconductors, Transistors, MOSFET, Fairchild Semiconductor
AED 8.00
Be the first to review this product
Add to Wish List
Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

The FDD8447L is a high-performance N-Channel PowerTrench MOSFET designed to meet the requirements of modern power electronics applications. Featuring a low on-resistance of 8.5mΩ at VGS = 10V, this MOSFET ensures high efficiency and minimal power loss in demanding conditions.

With a drain-to-source voltage (VDS) of 40V and a continuous drain current of 50A, it is suitable for inverter circuits, power supplies, and high-speed switching applications. The D-PAK (TO-252) package ensures compactness and reliability in surface-mount designs.

Key Features :

  • Low On-Resistance: 8.5mOhm at VGS = 10V for reduced conduction losses.
  • High Current Handling: Supports up to 50A continuous current and 152A pulsed current.
  • Thermal Performance: Excellent thermal resistance with RJA = 96C/W and RθJC = 2.8C/W.
  • Fast Switching: Enables high-speed operation with rise time (tr) of 12ns and fall time (tf) of 21ns.
  • Advanced Design: Manufactured with Fairchild’s PowerTrench technology for optimized performance.
  • Reliable Package: Compact and thermally efficient D-PAK (TO-252) design.
Operating Temperature -55C To +150C
Mounting Style Surface Mount
