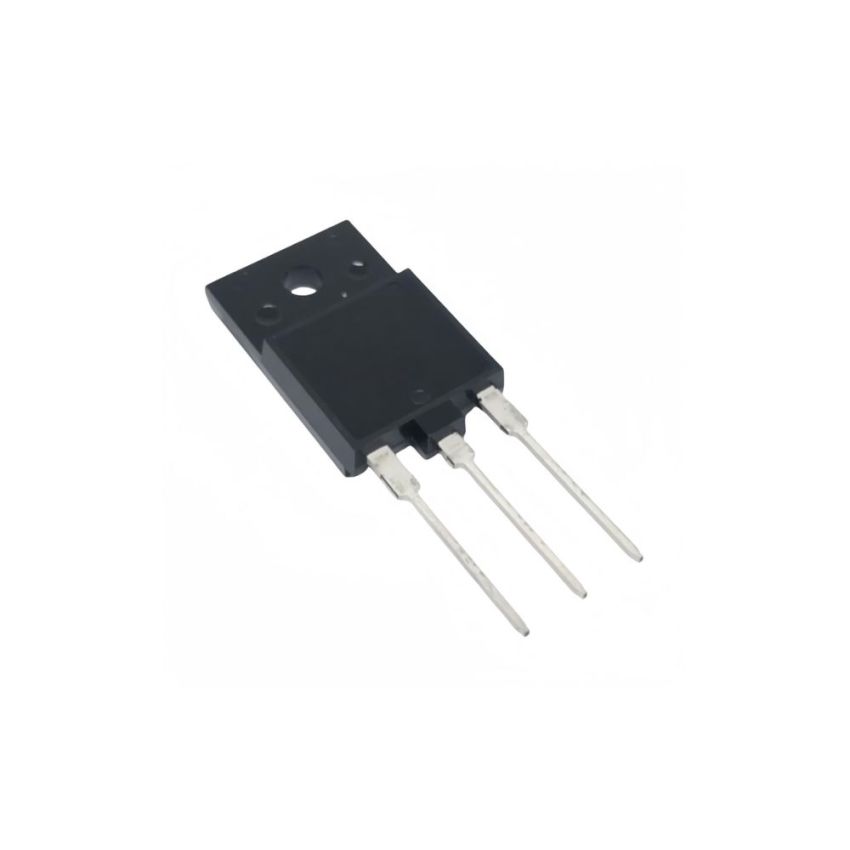

2SD1546, NPN Silicon Power Transistor, TO-3P(H)IS Package

The 2SD1546 is an NPN silicon power transistor housed in a TO-3P(H)IS package. It is designed for high-voltage, high-speed switching applications, such as color TV horizontal output stages. The transistor features a high collector-base voltage of 1500V, enabling it to handle substantial voltage levels. Its high switching speed and low saturation voltage contribute to efficient performance in demanding applications. The robust design ensures minimal lot-to-lot variations, providing reliable operation across different production batches.

• High Breakdown Voltage: Collector-Base Voltage (V_CBO) of 1500V, suitable for high-voltage applications.
• High Switching Speed: Designed for rapid switching applications, enhancing efficiency.
• Low Saturation Voltage: Ensures efficient performance with minimal voltage drop.
• Robust Design: Minimum lot-to-lot variations for reliable operation.
• TO-3P(H)IS Package: Provides efficient heat dissipation and ease of mounting.
• High Surge Current Capability: Able to handle surge currents, making it suitable for applications with transient power spikes.
