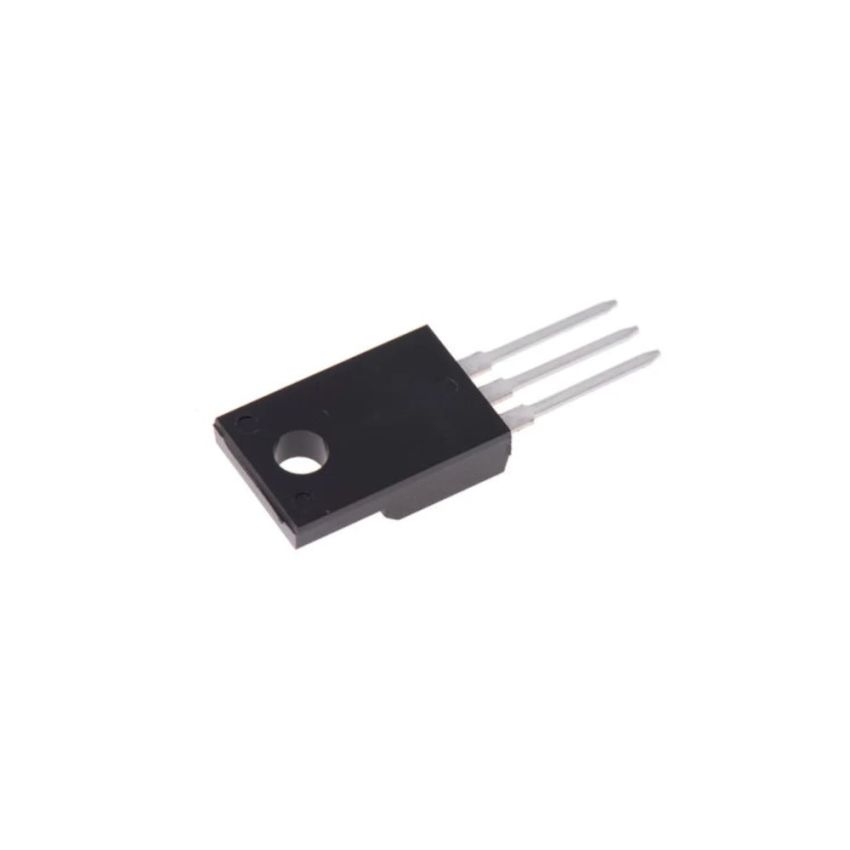

STF5NK100Z,N-Channel MOSFET,TO-220F-3

The STF5NK100Z is a high-performance N-Channel Power MOSFET designed for applications requiring efficient switching and reliable operation in power circuits. With a maximum drain-source voltage of 1000V and a continuous drain current of 3.5A, this MOSFET is ideal for high-power applications like power supplies, motor drives, and industrial switching systems.

Engineered with advanced SuperMESH™ technology, the STF5NK100Z ensures low RDS(on) for reduced conduction losses, while its fast switching characteristics minimize energy loss during high-frequency operations. The robust TO-220F-3 package provides excellent thermal performance, ensuring reliable operation even under heavy loads.

Designed to operate within a wide temperature range from -55°C to +150°C, the STF5NK100Z is suitable for a variety of industrial and consumer applications. Its built-in zener diodes enhance ESD protection and device reliability, making it an excellent choice for engineers and designers focused on high-efficiency and durable power systems.

• High Voltage and Current Rating: Supports a maximum drain-source voltage of 1000V (Vds) and a continuous drain current of 3.5A (Id).
• Low On-Resistance: Features an RDS(on) of 3.7Ω, minimizing conduction losses for improved energy efficiency.
• High-Speed Switching: Optimized for fast turn-on and turn-off times, ideal for high-frequency applications like power conversion and switching.
• Rugged and Durable Design: Incorporates advanced SuperMESH™ technology, ensuring superior dv/dt capability and 100% avalanche tested for reliability.
• Compact TO-220F-3 Package: Provides efficient heat dissipation and easy integration into PCBs for industrial and consumer applications.
• Wide Operating Temperature Range: Functions reliably between -55°C to +150°C, suitable for various demanding environments.
