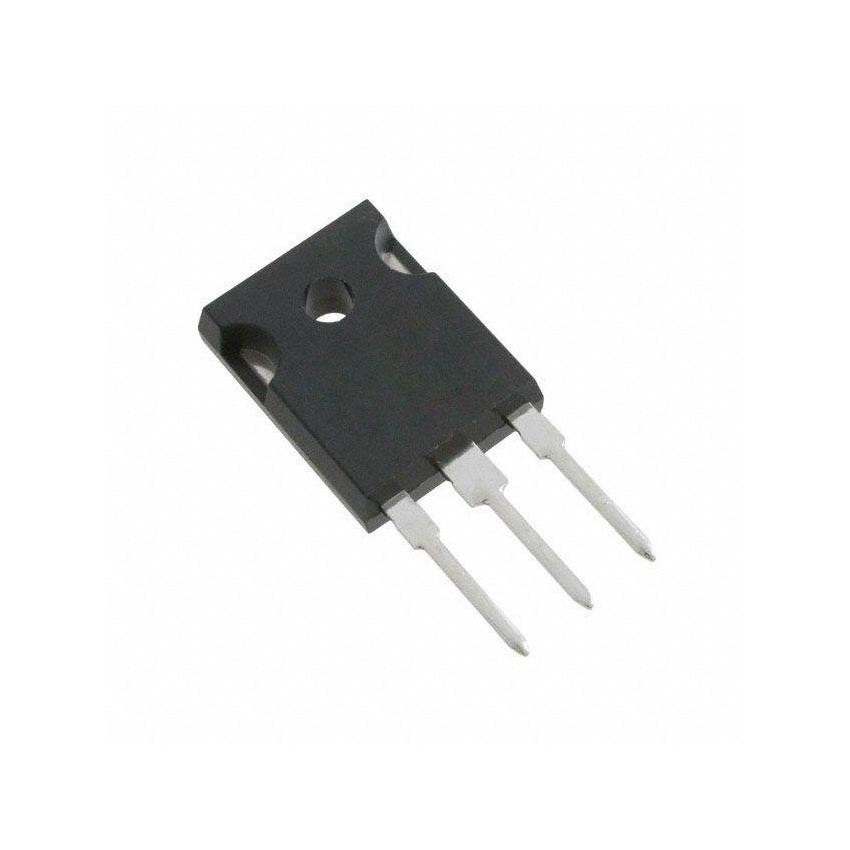

TIP34C ,PNP Silicon Power Transistor, 10A, 100V,SOT-93

The TIP34C is a robust PNP silicon power transistor designed for high-performance applications, offering reliable operation with high current and voltage capabilities. It is specifically designed for complementary use with the TIP33 series, providing seamless integration into circuits requiring high power dissipation. With a continuous collector current of 10A and a collector-emitter voltage of up to 100V, this transistor is ideal for various power amplification and switching tasks. The SOT-93 package ensures excellent thermal management and easy mounting.

The TIP34C is suitable for demanding applications such as power amplifiers, motor controllers, and high-power switching circuits. Its low thermal resistance and high maximum power dissipation make it an excellent choice for use in environments requiring consistent and reliable performance. Whether you're working on industrial electronics, audio systems, or motor control applications, the TIP34C delivers the performance and durability you need.

Key Features :

• High Power Dissipation: Capable of handling up to 80W at 25°C case temperature, ideal for high-power applications.
• Wide Operating Range: Supports a collector-emitter voltage of up to 100V and a continuous collector current of 10A.
• SOT-93 Package: Features excellent thermal management and mechanical stability for long-term reliability.
• Peak Collector Current: Handles up to 15A for transient conditions.
• Broad Temperature Range: Operates effectively in temperatures ranging from -65°C to +150°C, ensuring suitability for extreme environments.
• Versatile Applications: Designed for power amplifiers, motor controllers, and high-power switching circuits.
