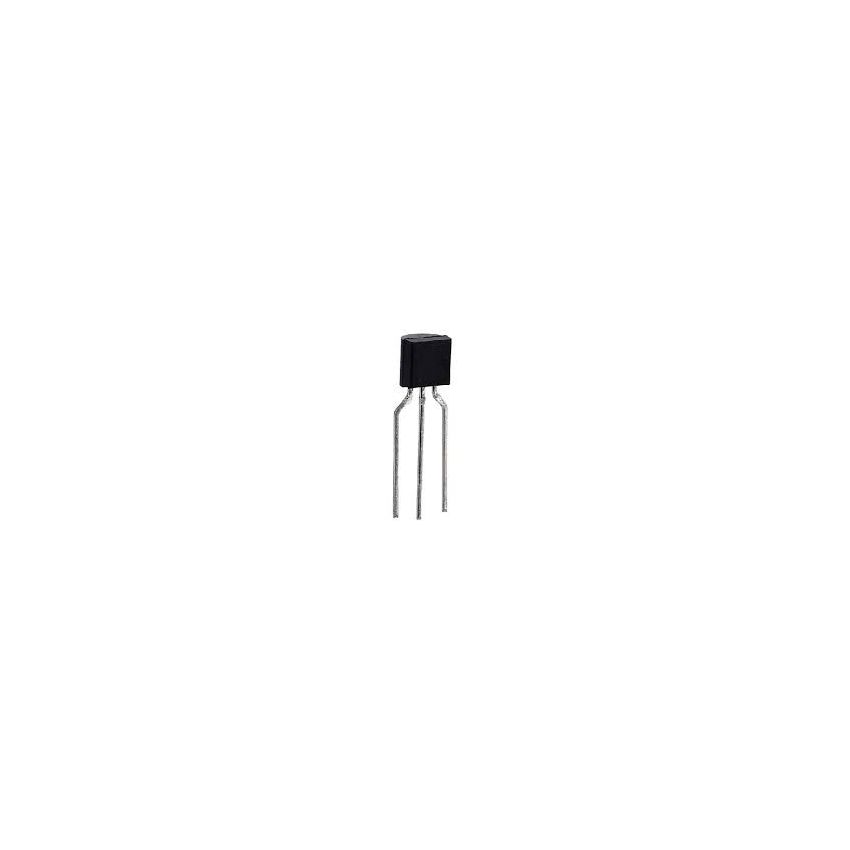

BUY2203, NPN Transistor, TO-92

The BUY2203 is a standard NPN bipolar junction transistor (BJT) packaged in a TO-92 case, primarily intended for low-power signal amplification and general-purpose switching. With moderate voltage and current ratings, it is an excellent choice for a wide range of small-signal applications in consumer electronics and development boards. The TO-92 housing makes it ideal for breadboard prototyping and educational use.

Key Features:

• NPN Bipolar Junction Transistor designed for switching and amplification.
• TO-92 through-hole package for easy PCB mounting.
• Suitable for general-purpose low-power applications.
• Moderate power dissipation rating supports small signal processing.
• Low saturation voltage improves efficiency.
• Ideal for use in audio, hobby electronics, and educational circuits.

Additional Specifications:

• Mounting Style: Through Hole
• Maximum DC Collector Current (Ic): 800Ma
• Collector-Emitter Voltage (VCEO) Max: 40V
• Collector-Base Voltage (VCBO): 50V
• Emitter-Base Voltage (VEBO): 5V
• Power Dissipation: 625Mw
• Operating Temprature: -55+150°C
