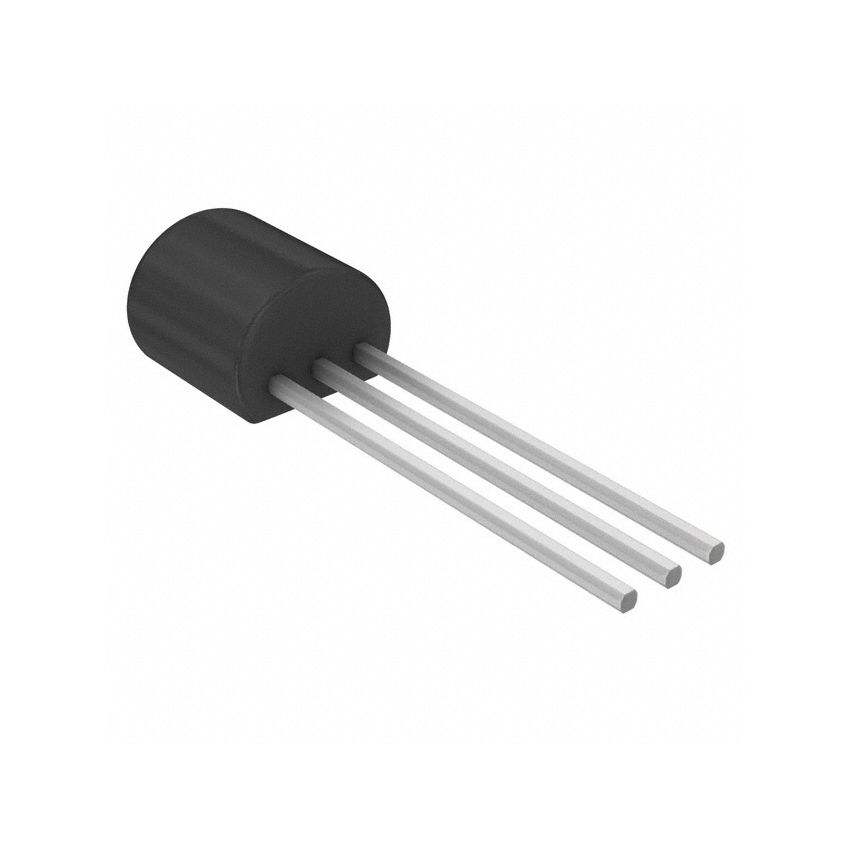

PN3563, NPN RF Amplifier Transistor, TO-92

The PN3563 is a discrete NPN silicon transistor designed primarily for radio-frequency (RF) and high-speed signal amplification. With a maximum collector current of 50 mA and a collector-emitter voltage rating of 15V, it is well-suited for low-voltage RF applications in consumer electronics, communication equipment, and analog signal chains. Its TO-92 package allows for convenient PCB mounting in compact layouts.

Key Features:

• Designed for RF Applications: Optimized for use in amplifiers, oscillators, and multipliers.
• High Transition Frequency: f_T ranges from 600 MHz to 1500 MHz.
• Low Output Capacitance: Ideal for high-speed and high-frequency performance.
• Moderate Gain Range: h_FE between 20 to 200 at 8 mA collector current.
• Compact TO-92 Package: Perfect for low-power, through-hole RF circuit designs.
• Low Collector Cutoff Current: Ensures stable performance even in high-impedance circuits.

Additional Specifications:

• Type: NPN
• Max Voltage: 15V
• Max Current: 50Ma
