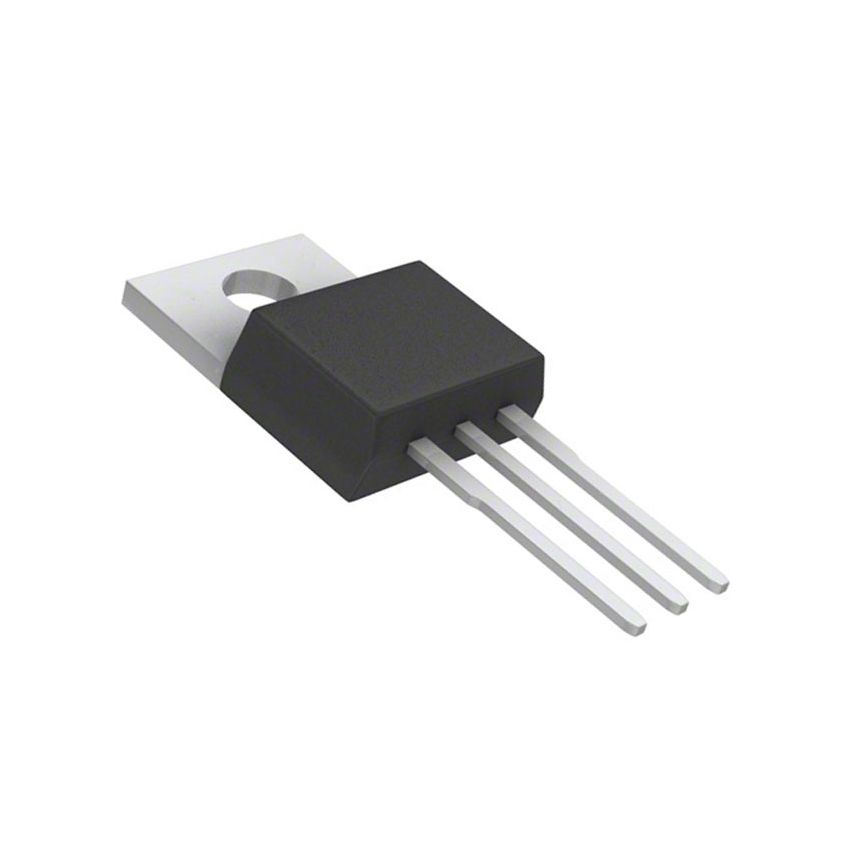

FEP16GT, Dual Common Cathode Ultrafast Rectifier, TO-220-3

The FEP16GT is a dual common cathode ultrafast rectifier designed for high-frequency rectification in switching mode power supplies, inverters, and freewheeling diode applications. Its ultrafast recovery time and low forward voltage drop contribute to high efficiency and reduced heat dissipation. The TO-220-3 package allows for efficient thermal management and easy mounting in through-hole designs.

Key Features:

• High Reverse Voltage: Withstands up to 400 V, suitable for high-voltage applications.
• High Forward Current: Supports an average rectified current of 16 A, enabling substantial power handling.
• Ultrafast Recovery Time: Features a reverse recovery time of 35 ns, minimizing switching losses and enhancing efficiency.
• Low Forward Voltage Drop: Exhibits a forward voltage of 1.3 V at 8 A, reducing conduction losses.
• High Surge Capability: Capable of withstanding surge currents up to 125 A, providing robustness against transient conditions.
• Common Cathode Configuration: Facilitates ease of use in bridge rectifiers and other circuit designs requiring dual diodes.

Additional Specifications:

• Mounting Style: Through-Hole
• Maximum Peak Reverse Voltage (VRRM): 400V
• Forward Average Current (If): 16A
• Forward Voltage (Vf): 1.3V At 8A
• Maximum Surge Current: 125A
• Reverse Current (Ir): 10µA
• Operating Temperature Range: -55+150°C
• Dimensions: 14.73x10.16x4.83Mm
