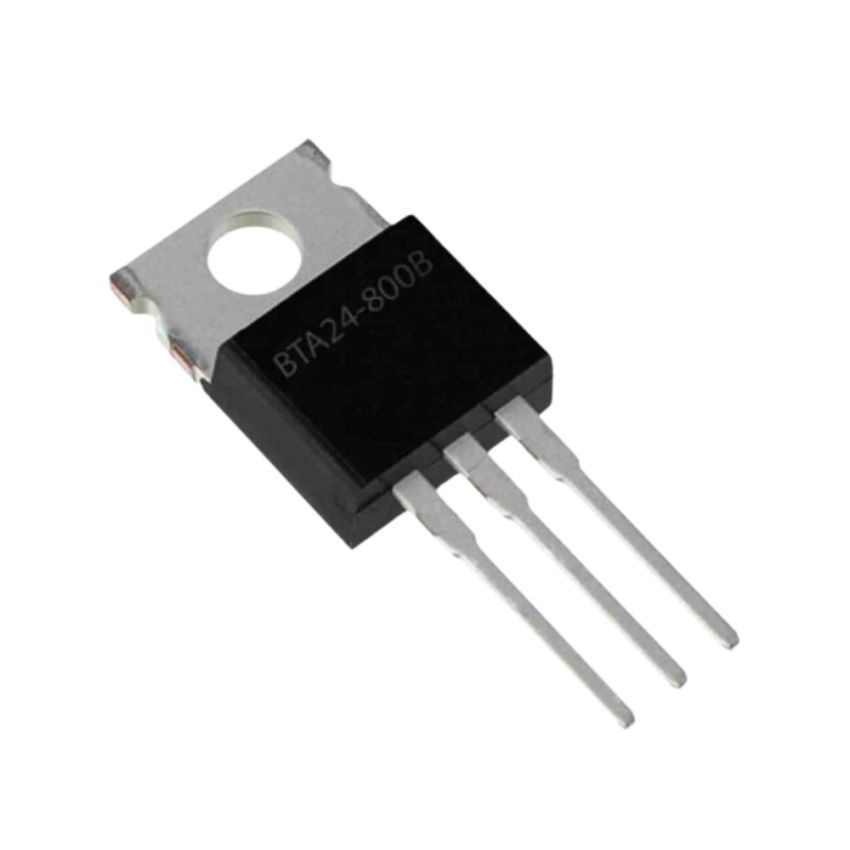

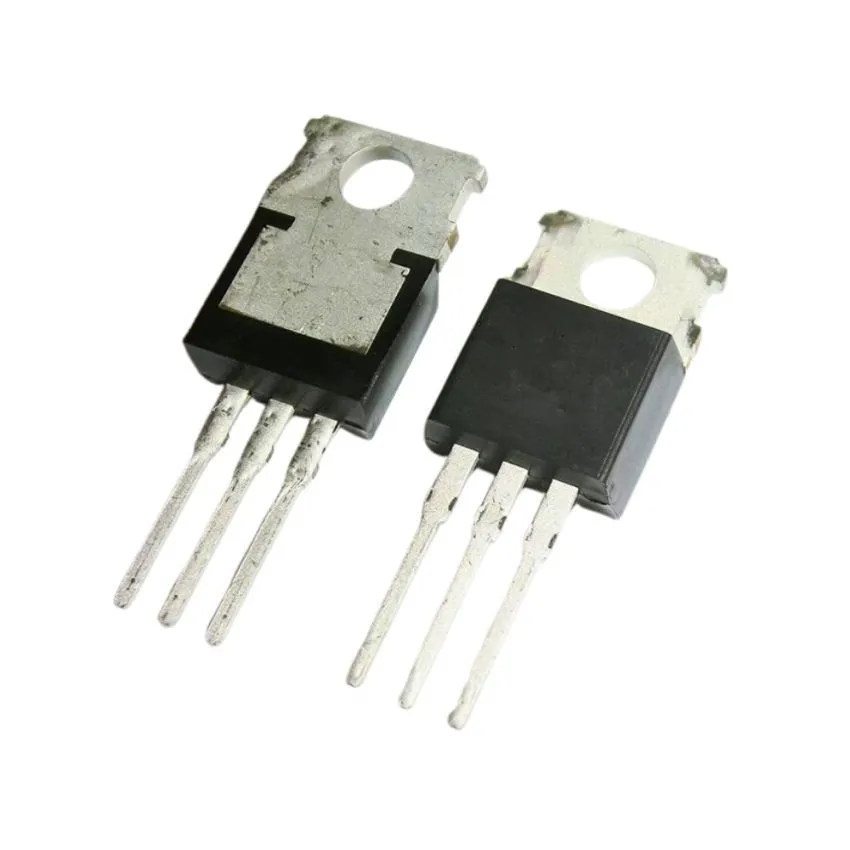

BTA24-800B,Snubberless Triac,800V,25A,TO-220-3

The BTA24-800B is a high-current, snubberless Triac designed for general-purpose AC switching. It features high commutation performance, which makes it ideal for use with inductive loads such as motors and solenoid valves. This Triac is commonly used in static relays, light dimmers, motor speed controllers, and heater controls. It supports up to 800V repetitive peak off-state voltage and a maximum current of 25A. The insulated TO-220AB package offers high thermal resistance and ensures efficient heat dissipation.

This device is especially suitable for demanding applications requiring high-performance AC switching with compact size and robust construction. Ideal for home appliances, HVAC systems, and lighting controls.

• High Surge Capability: Capable of handling a non-repetitive surge peak on-state current (ITSM) up to 250A for 10ms.
• Gate Trigger Control: Low gate trigger voltage of 1.3V and current of 35mA, making it ideal for logic-level applications.
• Wide Operating Temperature Range: Operates effectively in extreme environments with a range from -40°C to +125°C.
• Robust Package: Packaged in a TO-220-3 through-hole case for easy mounting and heat dissipation.
• High Voltage Tolerance: Rated for 800V, providing reliable switching in high-voltage applications.
• Applications: Ideal for AC load control, phase control, motor speed control, and heater controls.
