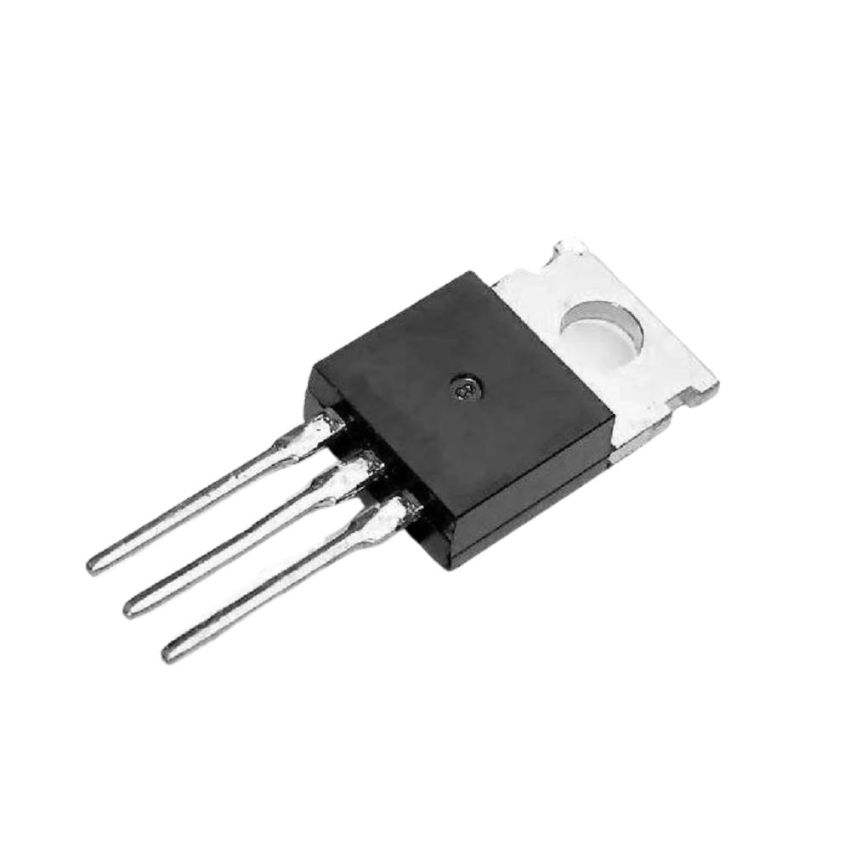

IRF9532, P-Channel Power MOSFET, TO-220-3 Package

The IRF9532 is a P-channel power MOSFET designed for efficient switching applications. With a drain-source voltage rating of 100 V and a continuous drain current of 10 A, it is well-suited for medium to high current applications. The MOSFET's low on-resistance of 0.4 Ω reduces conduction losses, enhancing overall system efficiency. Its fast switching capabilities make it ideal for high-speed circuits. Encased in a standard TO-220-3 package, the IRF9532 offers robust thermal performance with a maximum power dissipation of 75 W, ensuring reliable operation in various power management applications.

• High Drain-Source Voltage: Withstands up to 100 V, suitable for various power applications.
• High Continuous Drain Current: Rated at 10 A, ideal for medium to high current requirements.
• Low On-Resistance: Features an R_DS(on) of 0.4 Ω, minimizing conduction losses.
• Fast Switching Speed: Enables efficient performance in high-speed applications.
• Robust Thermal Performance: Maximum power dissipation of 75 W, ensuring reliability under high power conditions.
• Standard TO-220-3 Package: Facilitates easy mounting and efficient heat dissipation.
