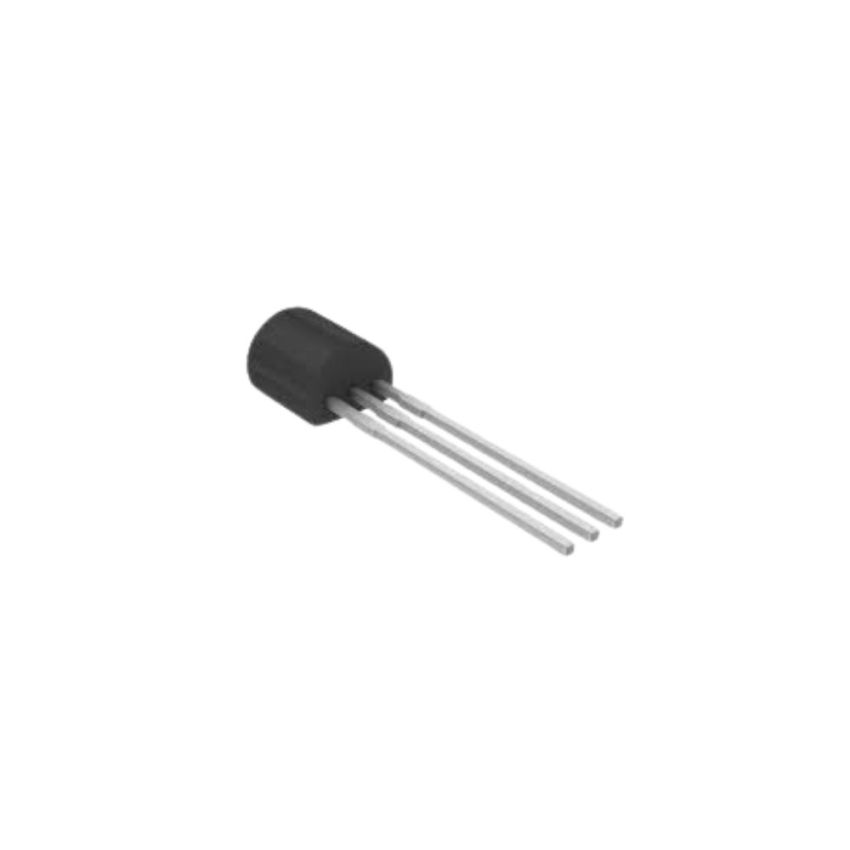

2SA1091, PNP Silicon Transistor, TO-92 Package

The 2SA1091 is a PNP silicon transistor housed in a compact TO-92 package, designed for high-voltage control applications such as plasma displays, Nixie tube drivers, and cathode ray tube brightness control. It features a high collector-base and collector-emitter voltage tolerance of 300 V, making it suitable for demanding applications. The transistor offers a low collector-emitter saturation voltage of -0.5 V (max) at a collector current of -10 mA, ensuring efficient performance. With a low collector output capacitance of 6 pF (typical), the 2SA1091 is also suitable for high-frequency applications. It is complementary to the 2SC2551 NPN transistor, allowing for effective push-pull configurations in amplifier circuits.

• High Voltage Tolerance: Withstands up to 300 V collector-base and collector-emitter voltages, suitable for high-voltage control applications.
• Low Saturation Voltage: Collector-emitter saturation voltage of -0.5 V (max) at I_C = -10 mA, I_B = -1 mA, ensuring efficient operation.
• Low Collector Output Capacitance: Typical capacitance of 6 pF, beneficial for high-frequency applications.
• Complementary to 2SC2551: Pairs effectively with the 2SC2551 NPN transistor for push-pull configurations.
• Compact TO-92 Package: Facilitates easy integration into various circuit designs.
• Wide Operating Temperature Range: Operates reliably between -55°C to 125°C, suitable for diverse environments.
