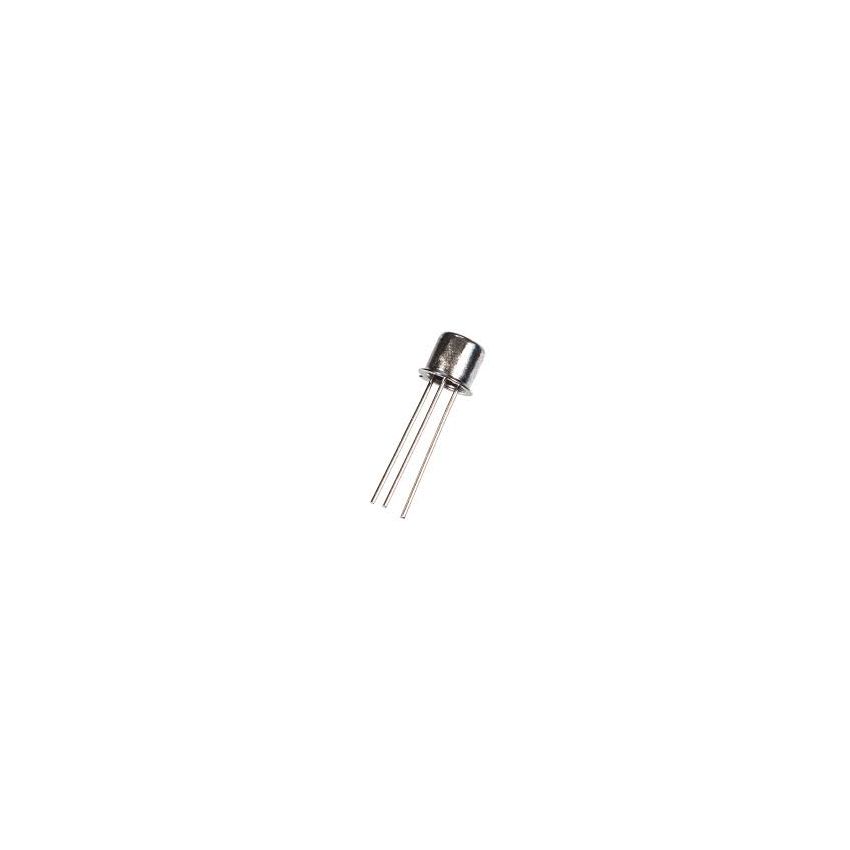

BC108C, NPN Silicon Planar Transistor - TO-18 Metal Can Package, 20V

SKU
SCTx2408
Part Number
BC108C
Brand:
In stock

Guarantee safe & secure checkout

The BC108C is an NPN silicon planar transistor in a TO-18 metal can package, specifically designed for general-purpose amplifier and switching applications. With a collector-emitter voltage rating of up to 20V and continuous collector current of 100mA, it is highly reliable for low-noise, medium-gain amplification tasks. This transistor is a preferred choice in audio input stages, signal processing circuits, and driver applications requiring stability and efficiency.

The compact TO-18 package ensures excellent thermal characteristics and is ideal for space-constrained designs. The BC108C features a maximum power dissipation of 300mW, making it suitable for low-power circuits while maintaining robust electrical performance across a wide operating temperature range of -55C to +150C.

Key Features :

  • Compact TO-18 metal can package for enhanced thermal performance.
  • Low noise figure ideal for audio input and signal processing.
  • High collector-emitter voltage (VCEO): 20V for robust application support.
  • Continuous collector current (IC): 100mA, suitable for moderate power circuits.
  • Maximum power dissipation: 300mW, ensuring efficiency in low-power designs.
  • Wide operating temperature range of -55C to +150C, making it reliable in diverse environments.
More Information
Mounting Style Through-Hole
Max Voltage N/A
